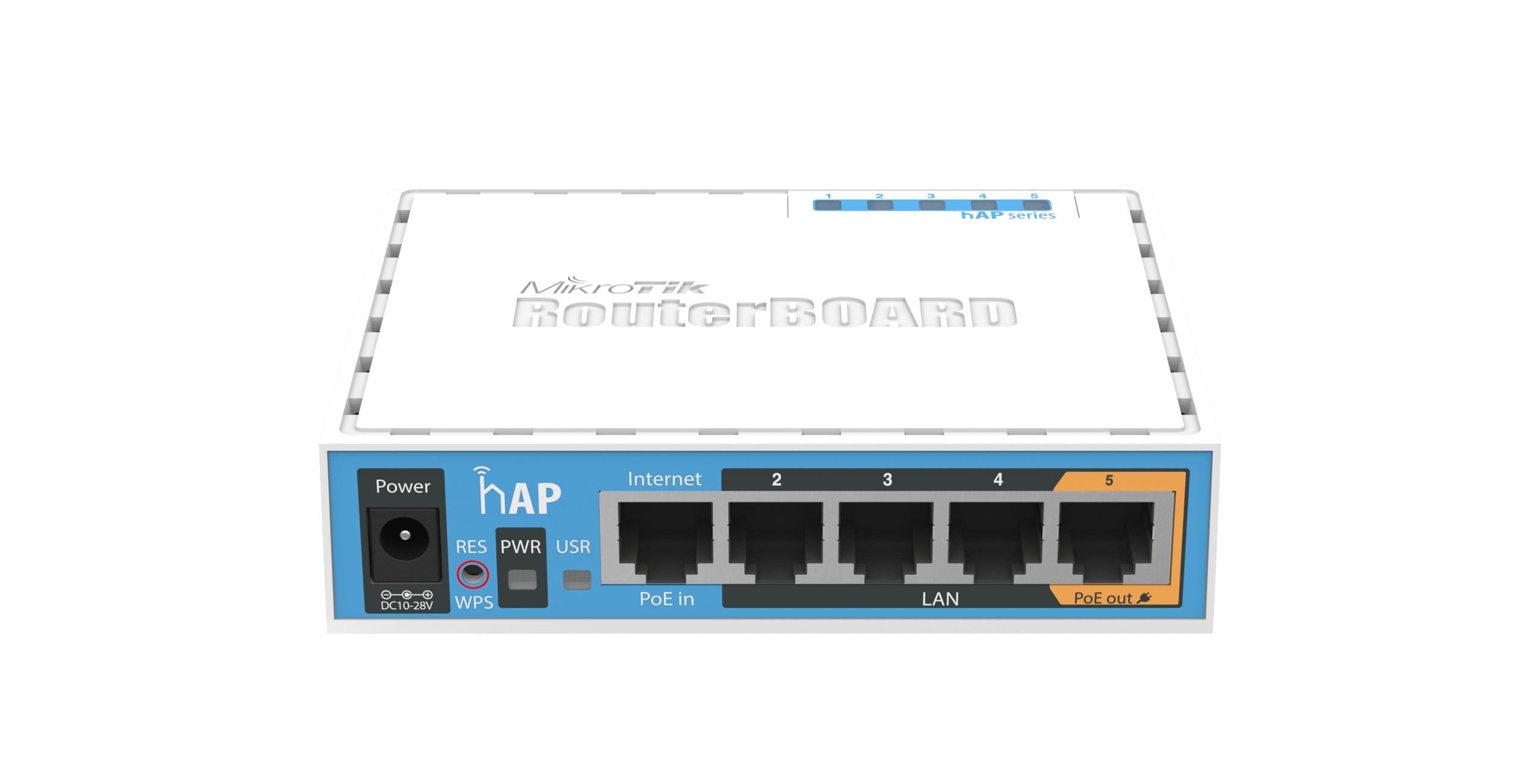

MikroTik hAP RB951Ui-2nD 2.4GHz AP, Five Ethernet ports, PoE-out on port 5, USB for 3G/4G support

احصل على عرض لشركتك

15 People watching this product now!

Description

This small home access point is the perfect device for homes or small offices where all you need is a wireless AP and a few wired devices connected. Based on our popular RB951-2n, the new hAP is an improvement in many areas.

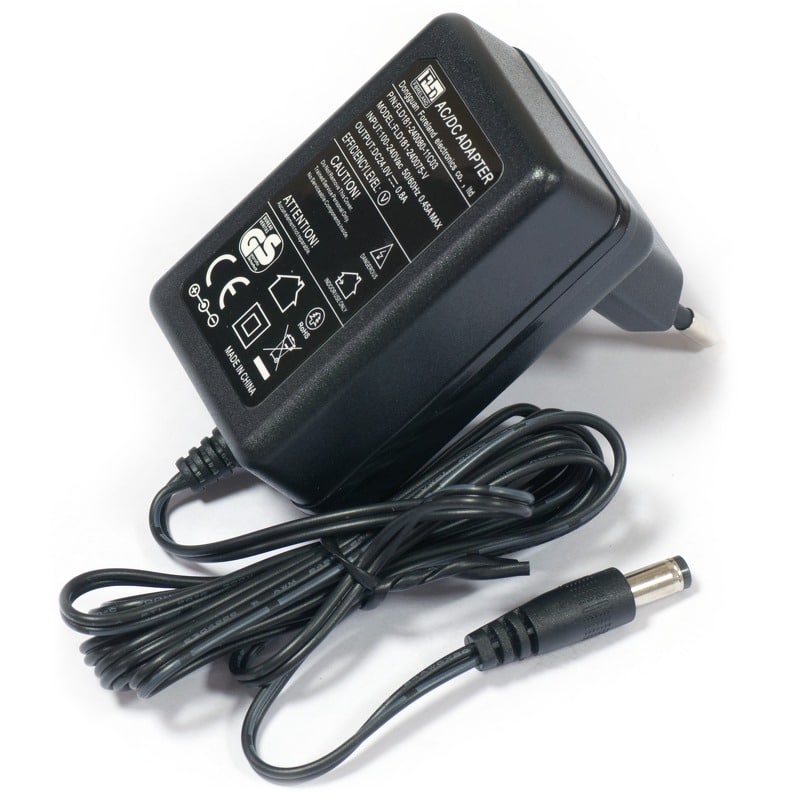

The device can be powered from the power jack or with passive PoE from a PoE injector. The power adapter is included.
hAP provides PoE output function for port #5 - it can power other PoE capable devices with the same voltage as applied to the unit. Maximum load on the port is 500mA.
The hAP is preconfigured, so all you need to do, is plug in the internet cable, the power, and start using the internet by connecting to the MikroTik network.

Specifications:

Product codeRB951Ui-2nD
ArchitectureMIPSBE
CPUQCA9531
CPU core count1
CPU nominal frequency650 MHz
Switch chip modelQCA9531
Dimensions113 x 89 x 28mm
RouterOS license4
Operating SystemRouterOS
Size of RAM64 MB
Storage size16 MB
Storage typeFLASH
MTBFApproximately 100’000 hours at 25C
Tested ambient temperature-30°C to 70°C
Suggested price45
Wireless capabilities Details
Wireless 2.4 GHz Max data rate300 Mbit/s
Wireless 2.4 GHz number of chains2
Wireless 2.4 GHz standards802.11b/g/n
Antenna gain dBi for 2.4 GHz1.5
Wireless 2.4 GHz chip modelQCA9531
Wireless 2.4 GHz generationWi-Fi 4
Ethernet Details
10/100 Ethernet ports5
Peripherals
Details
Number of USB ports1
USB Power ResetYes
USB slot typeUSB type A
Max USB current (A)1
Powering Details
Number of DC inputs2 (PoE-IN, DC jack)
DC jack input Voltage10-28 V
Max power consumption5 W
Cooling typePassive
PoE inPassive PoE
PoE in input Voltage10-28 V
PoE-out
Details
PoE-out portsEther5
PoE outPassive PoE
Max out per port output (input 18-30 V)500 mA
Max total out (A)500 mA
Certification & Approvals Details
CertificationCE, FCC, IC, EAC, ROHS
IPIP20
Wireless specificationsReceive Sensitivity
2.4 GHz-96
1MBit/s-89
11MBit/s-93
6MBit/s-74
54MBit/s-93
MCS0-71
MCS7Receive Sensitivity
