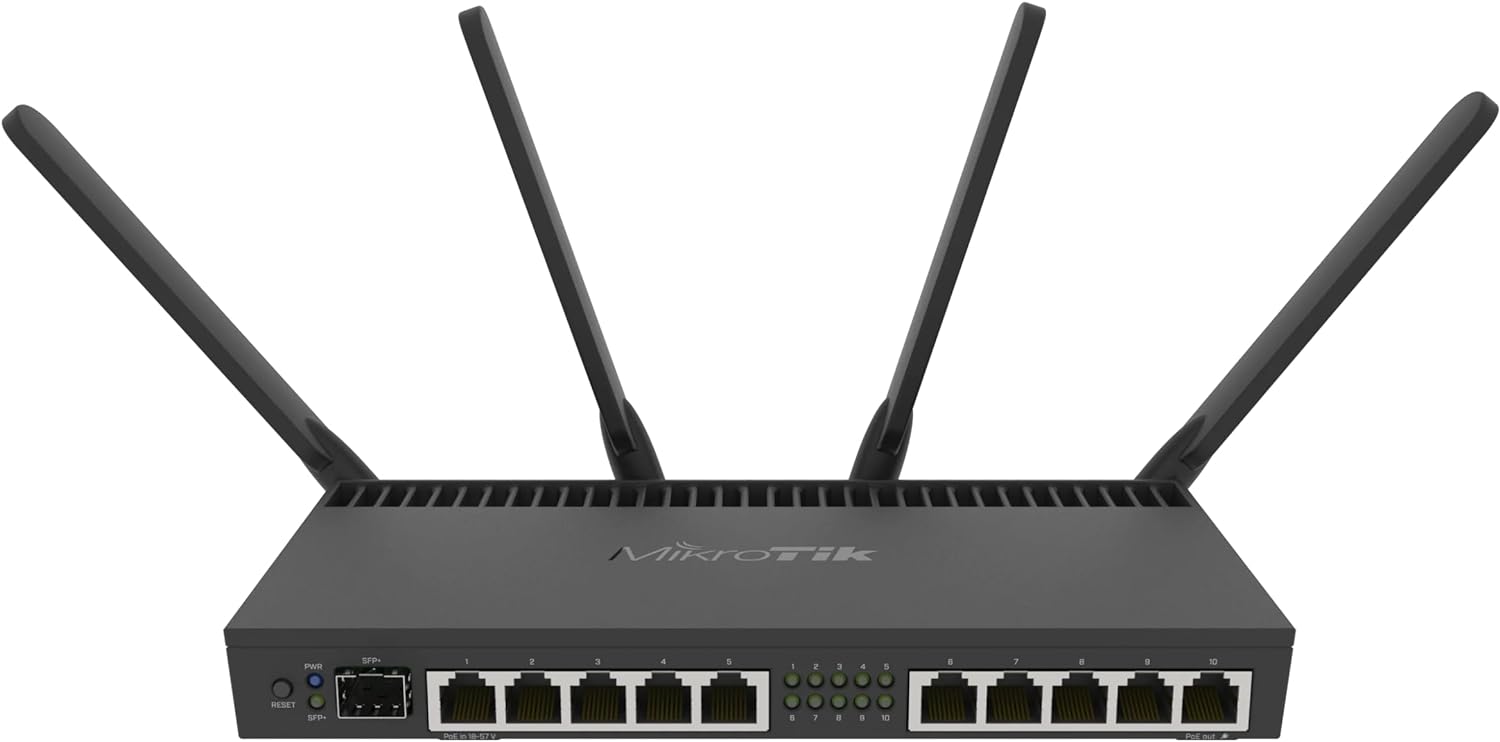

MikroTik RB4011iGS+5HacQ2HnD-IN

Powerful 10xGigabit port router with a Quad-core 1.4Ghz CPU, 1GB RAM, SFP+ 10Gbps cage, dual band 2.4GHz / 5GHz 4x4 MIMO 802.11a/b/g/n/ac wireless and desktop case

احصل على عرض لشركتك

13 People watching this product now!

Description

RB4011iGS+5HacQ2HnD-IN
Powerful 10xGigabit port router with a Quad-core 1.4Ghz CPU, 1GB RAM, SFP+ 10Gbps cage, dual band 2.4GHz / 5GHz 4x4 MIMO 802.11a/b/g/n/ac wireless and desktop case
RB4011 series - amazingly powerful routers with ten Gigabit ports, SFP+ 10Gbps interface and IPsec hardware acceleration for a great price!

The RB4011 uses a quad core Cortex A15 CPU, same as in our carrier grade RB1100AHx4 unit. The unit is equipped with 1GB of RAM, can provide PoE output on port #10 and comes with a compact and professional looking solid metal enclosure in matte black.

RB4011iGS+5HacQ2HnD-IN (WiFi model) is dual band, four chain unit with a supported data rate of up to 1733 Mbps in 5GHz. For legacy devices, the unit also has a dual chain 2GHz wireless card installed in miniPCI-e slot.

We have two versions available.

RB4011iGS+5HacQ2HnD-IN-US (USA) is factory locked for 2412-2462MHz, 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.

RB4011iGS+5HacQ2HnD-IN (International) supports 2412-2484MHz and 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).

Note: Passive DAC (MikroTik S+DA0001/S+DA0003) are not supported.

Specifications:

Details
Product codeRB4011iGS+5HacQ2HnD-IN
ArchitectureARM 32bit
CPUAL21400
CPU core count4
CPU nominal frequencyauto (533 - 1900) MHz
Switch chip modelRTL8367SB
Dimensions228 x 120 x 30 mm
RouterOS license5
Operating SystemRouterOS v7
Size of RAM1 GB
Storage size512 MB
Storage typeNAND
MTBFApproximately 200'000 hours at 25C
Tested ambient temperature-40°C to 45°C
IPsec hardware accelerationYes
Suggested price275
Wireless Capabilities Details
Wireless 5 GHz Max data rate1733 Mbit/s
Wireless 5 GHz number of chains4
Wireless 5 GHz standards802.11a/n/ac
Antenna gain dBi for 5 GHz3
Wireless 5 GHz chip modelQCA9984
Wireless 5 GHz generationWi-Fi 5
Wireless 2.4 GHz Max data rate300 Mbit/s
Wireless 2.4 GHz number of chains2
Wireless 2.4 GHz standards802.11b/g/n
Antenna gain dBi for 2.4 GHz3
Wireless 2.4 GHz chip modelR11e-2HnD
Wireless 2.4 GHz generationWi-Fi 4
WiFi speedAC2000
Ethernet Details
10/100/1000 Ethernet ports10
Fiber Details
SFP+ ports1
Peripherals Details
MiniPCI-e slots1
Serial console portRJ45
Powering Details
Number of DC inputs2 (DC jack, PoE-IN)
DC jack input Voltage12-57 V
Max power consumption44 W
Max power consumption without attachments23 W
Cooling typePassive
PoE inPassive PoE
PoE in input Voltage18-57 V
PoE-out Details
PoE-out portsEther10
PoE outPassive PoE up to 57V
Max out per port output (input 18-30 V)600 mA
Max out per port output (input 30-57 V)420 mA
Max total out (A)600 mA
Certification & Approvals Details
CertificationCE, FCC, IC, EAC, ROHS
IPIP20
Other Details
PCB temperature monitorYes
Voltage MonitorYes
Wireless specifications
5 GHzTransmit (dBm)Receive Sensitivity
6MBit/s33-96
54MBit/s29-81
MCS033-96
MCS728-77
MCS926-72
2.4 GHzTransmit (dBm)Receive Sensitivity
1MBit/s28-100
11MBit/s28-94
6MBit/s29-96
54MBit/s25-80
MCS026-96
MCS724-79
