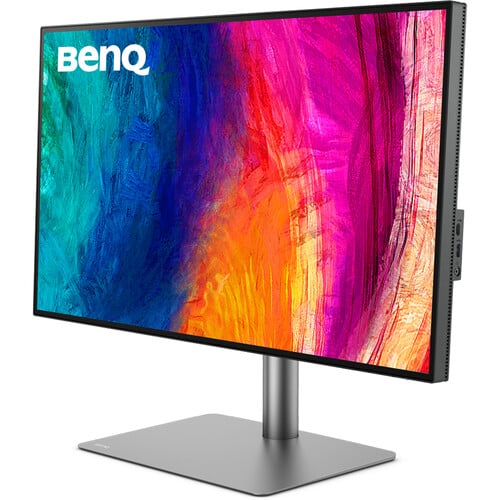

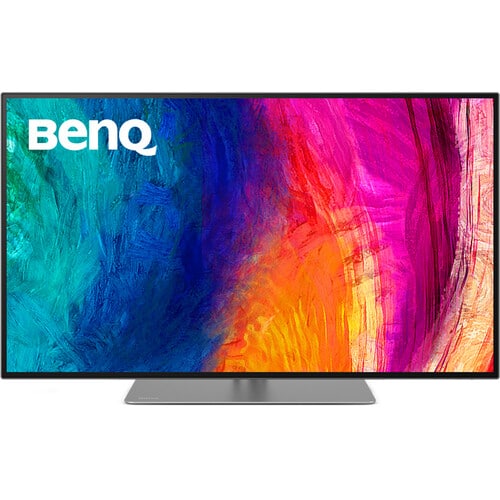

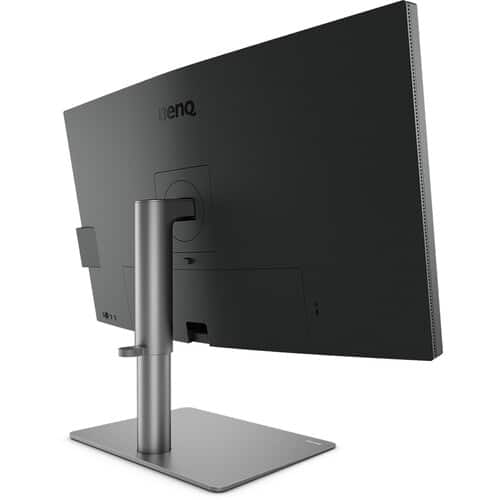

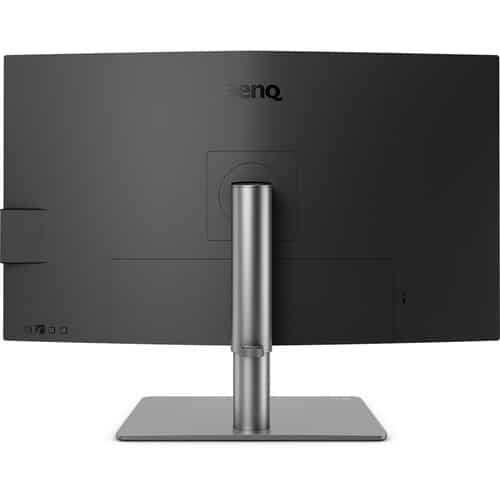

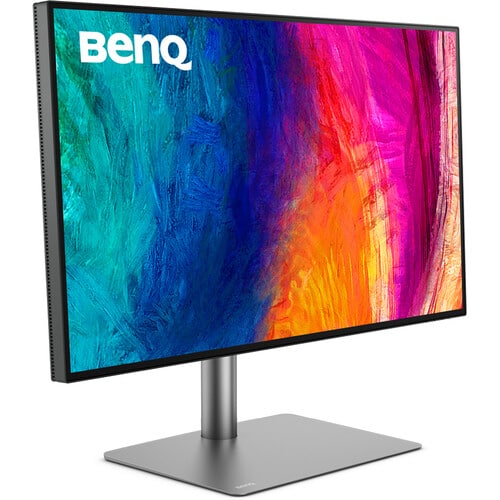

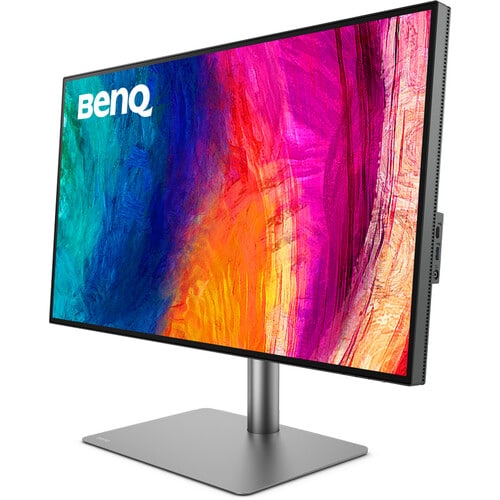

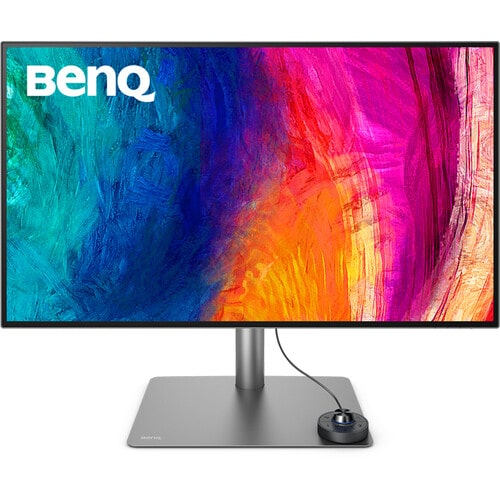

BenQ PD3220U DesignVue Designer 31.5″ 16:9 HDR 4K IPS Monitor
Overview
The BenQ PD3220U is a 31.5-inch HDR 4K IPS monitor designed specifically for professionals in design and creative industries. Here are the key features and specifications:
Display and Performance
- Resolution: Ultra HD 4K (3840 x 2160) at 60 Hz
- Color Gamut:
- 100% sRGB and Rec. 709
- 95% DCI-P3
- Brightness:
- Typical: 250 cd/m²
- Peak HDR: 300 cd/m²
- Contrast Ratio: 1000:1
- Response Time: 5 ms (GtG)
- Viewing Angles: 178° horizontal and vertical
Technology and Features
- AQCOLOR Technology: Ensures accurate color reproduction, validated by PANTONE and CalMAN.
- Calibration: Pre-calibrated with a certification report, achieving a Delta E ≤ 3 for consistent color accuracy.
- Special Modes:
- CAD/CAM Mode: Enhances detail visibility for design applications.
- Animation Mode: Improves brightness in darker areas while avoiding overexposure.
- Darkroom Mode: Adjusts brightness and contrast for detailed post-processing work.
Connectivity
- Ports:
- 2 x HDMI 2.0
- 1 x DisplayPort 1.4
- 2 x Thunderbolt 3 (one supports 85W charging, the other supports 15W)
- 1 x USB 3.1 Gen 2 Type-C (data transfer only)
- 3 x USB 3.1 Gen 2 Type-A (downstream)
- 1 x USB 3.1 Gen 2 Type-B (upstream)
- Audio: Dual 2W speakers and a 3.5mm headphone jack

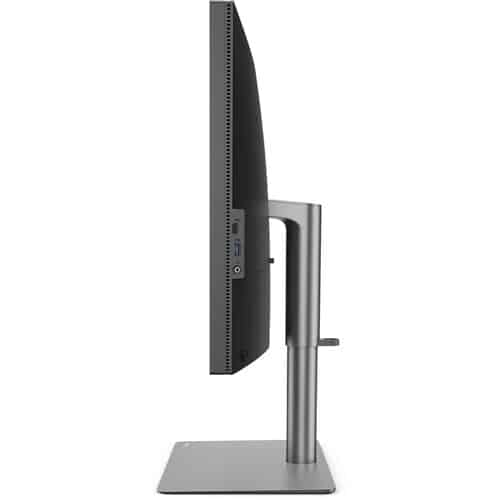

Ergonomics and Adjustability
- Tilt: -5° to 20°
- Swivel: ±30°

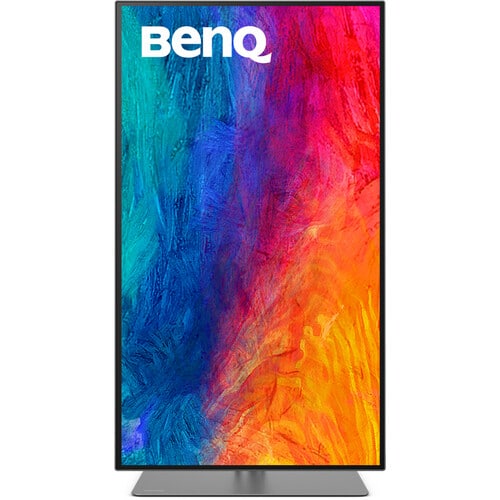

- Pivot: 90° clockwise/counterclockwise
- Height Adjustment: Up to 5.91 inches
- VESA Mount: 100 x 100mm
Eye Care Features
- Flicker-Free Technology: Reduces eye strain by eliminating flickering.
- Low Blue Light: Filters out harmful blue light to minimize eye fatigue.
Additional Features
- DualView: Allows users to view two modes side-by-side for improved workflow.
- KVM Switch: Enables control of two systems with one keyboard and mouse.

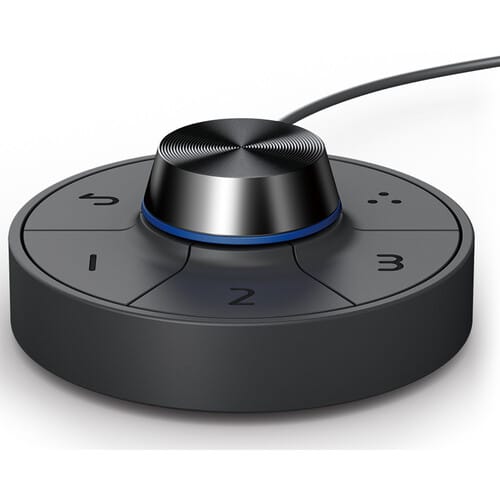

- Hotkey Puck G2: Customizable shortcuts for quick access to frequently used settings.
| Specification | Details |
| Display Size | 31.5" |
| Panel Type | IPS-Type LCD |
| Aspect Ratio | 16:9 |
| Native Resolution | 3840 x 2160 |
| Maximum Brightness | 250 nits / cd/m² (Sustained in SDR Mode) 300 nits / cd/m² (Peak in HDR Mode) |
| HDR Support | Yes, HDR10 |
| Contrast Ratio | 1000:1 |
| Response Time | 5 ms (GtG) |
| Refresh Rate | 60 Hz |
| Variable Refresh Technology | No |
| Color Support | 1.07 Billion Colors (8-Bit+FRC) |
| Color Gamut | 100% sRGB 100% Rec. 709 95% DCI-P3 |
| Viewing Angle (H x V) | 178 x 178° |
| Screen Area | 27.45 x 15.44" / 697.31 x 392.23 mm |
| Pixels Per Inch (ppi) | 140 ppi |
| Finish | Anti-Glare / Matte |
| Touchscreen Technology | No |

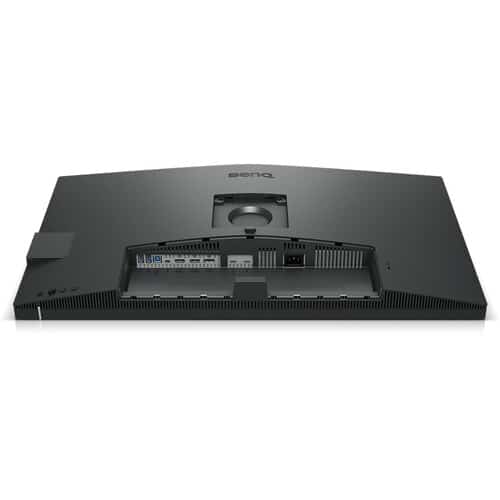

| Inputs | Rear: 2x HDMI 2.0 1x DisplayPort 1.4 |
| Outputs | Side: 1x 1/8" / 3.5 mm (Headphone) |
| USB I/O | Rear: 1x USB-C (Thunderbolt 3) (Charging/DisplayPort Alt Mode) 1x USB-C (Thunderbolt 3) (DisplayPort Alt Mode) 2x USB-A 3.1/3.2 Gen 2 1x USB-B 3.1/3.2 Gen 2 Side: 1x USB-C 3.1/3.2 Gen 2 1x USB-A 3.1/3.2 Gen 2 |
| USB Power Delivery | 85 W (via USB-C) 15 W (via USB-C) |
| Multi-Input Support | Picture-in-Picture (PIP), Picture-by-Picture (PBP) |
| Built-In Speakers | Yes, 2x 2 W |
| Supported Languages | Arabic, Czech, Dutch, English, French, German, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Romanian, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese |
| Power Consumption | Maximum: 220.0 W Standby: 0.5 W Typical: 37.0 W |
| Input Power | 100 to 240 VAC, 50 / 60 Hz |
| Power Adapter Type | Internal |
| Operating Conditions | 32 to 104°F / 0 to 40°C at 10 to 90% Humidity |
| Storage Conditions | -4 to 140°F / -20 to 60°C at 10 to 60% Humidity |
| Certifications | ENERGY STAR, EPEAT GOLD, TCO Certified |

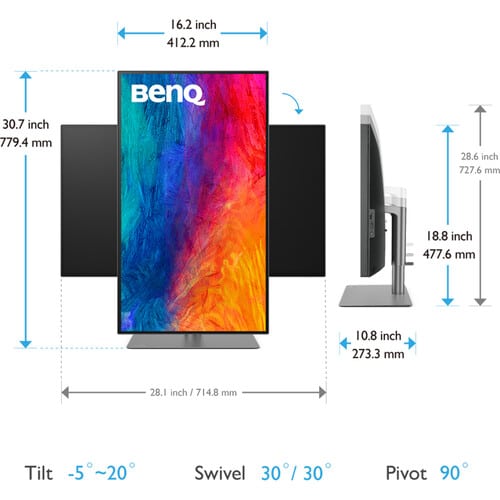

| Adjustments | Height: 5.91" / 150 mm Tilt: 25° (-5 to 20°) Rotation: 90° Swivel: 60° (-30 to 30°) |
| Mounting-Hole Pattern | 100 x 100 mm |
| Lock Slot | Yes, Kensington |
| Dimensions | 28.1 x 24.7 x 10.6" / 714.8 x 627.6 x 268.2 mm (with Stand) 28.1 x 16.2 x 3.4" / 714.8 x 412.2 x 86.6 mm (without Stand) |
| Weight | 23.6 lb / 10.7 kg (with Stand) 17.4 lb / 7.9 kg (without Stand) |
| Package Weight | 29.95 lb |
| Box Dimensions (LxWxH) | 36 x 26.5 x 7.5" |
