Description

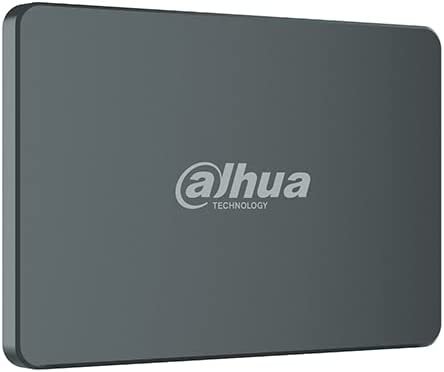

Dahua C800A 256Gb Internal Soild State Drive

• Product Model

DHI-SSD-C800AS256G

• Capacity1

256 GB

• Form Factor

2.5 inch

• Port

SATA III 6Gb/s

• Net Weight

Max 40 g (0.09 lb)

• Product Dimensions

100.20 mm × 69.90 mm × 7.00 mm (3.94″ × 2.75″ × 0.28″)

• Packaging Dimensions

140.50 mm × 105.50 mm × 15.50 mm (5.53″ × 4.15″ × 0.61″)

• Memory Component

3D NAND

• Power Consumption

1186 mW (max)412 mW (idle)

• S.M.A.R.T

Support

• TRIM

Support

• Garbage Collection

Support

• Sequential Read2

Up to 550 MB/s

• Sequential Write2

Up to 460 MB/s

• MTBF

1,500,000 hours

• Operating Temperature

0°C to 70°C ( 32°F to 158°F)

• Storage Temperature

–40°C to 85°C (–40°F to 185°F)

• Operating Humidity

5%–95% (non-condensing)

• Vibration Resistance

10–200 Hz, 0.5G

• TBW

Up to 100 TB

Reference Information

1. Capacity calculation: 1GB = 1 billion bytes (IDEMA). Actual available capacity might be reduced (due to formatting, partition, operating system applications, or other necessary usage).

2. System configuration of performance test: Intel Z390 Chipset, Intel Core i9-9900KF@3.6GHz, 16GB DDR4; operating system-Windows 10 x64; testing tool-CrystalDiskMark 6.0.0.

3. Warranty period or maximum write amount (TBW), whichever comes first.

4. High performance SLC cache has been enabled.

(*Above data based on internal testing of Dahua Memory Laboratory)

MODEL	C800A
CAPACITY	256GB
STORAGE TYPE	2.5 SATA
MEMORY COMPONENT	3D NAND
TRANSFER RATE	Up to 550 MB/s
WRITE	Up to 460 MB/s
DRAM CACHE	N/A
PART NUMBER	DHI-SSD-C800AS256G
WARRANTY	1 year
