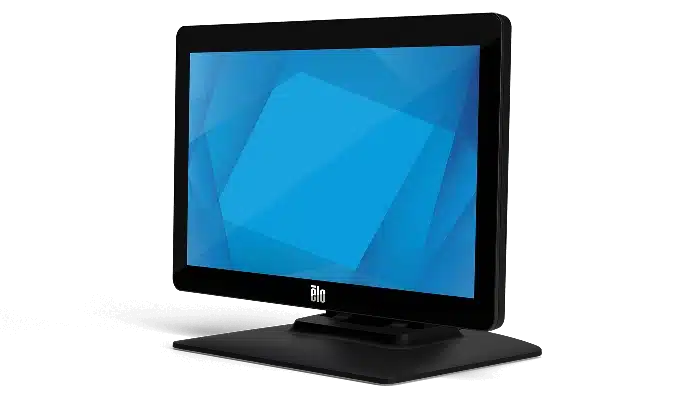

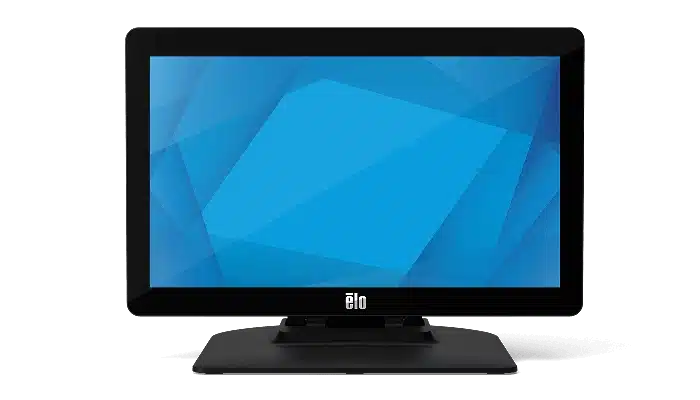

Elo 1502L Touchscreen Monitor 15.6” diagonal Active matrix TFT LCD

Elo’s 1502L
Touchscreen Monitor

The Elo 1502L Touchscreen Monitor is designed with the same seamless style that spans across the entire line up of 02-Series Monitors. With a compact form factor and clean design for easy integration, the 1502L offers the flexibility to install as a traditional POS terminal or a customer facing point of interaction - making it well-suited for point-of-sale, self-service, signage and hospitality applications. And with a variety of peripherals, the monitor can be transformed to meet the demands of almost any blueprint.

Single Cable Connection

The 1502L provides a USB Type-C interface that provides touch, video and power. By reducing the number of cables required for any set up from 3 to 1, installation and servicing is a breeze. In case your PC isn’t equipped with USB Type-C yet, you can still use traditional HDMI or VGA to connect to your PC.

One for You.
One for Your Customers.

The 02-Series offers dual functionality. Use it as a traditional POS terminal or customer facing display – or BOTH! Start increasing brand loyalty and customer satisfaction by offering your customers a point of interaction to review transactions, participate in loyalty programs or see the latest promotion.

Specifications

• ---

  Part Number(s)

  PCAP FHD USB-C With Stand (Worldwide) - E155645
  PCAP FHD USB-C Without Stand (Worldwide) - E125496
  PCAP HD With Stand (Worldwide) - E318746

  Enclosure Color

  Black

  Touch Technology & Capacity

  PCAP (Projected Capacitive) - 10 Touch

  Diagonal Size

  15.6'' diagonal, Active matrix TFT LCD (LED)

  Monitor Thickness

  1.28" / 32.4 mm panel depth

  Aspect Ratio

  16:9

  Active Area

  13.55" x 7.62" / 344.16 mm x 193.5 mm

  Resolution

  FHD model: 1920 x 1080
  HD model: 1366 x 768

  Other Supported Resolutions

  FHD model:
  640 x 480 60Hz
  640 x 400 70Hz
  720 x 400 70Hz
  800 x 600 56, 60Hz
  1024 x 768 60Hz
  1280 x 720 50, 60Hz
  1280 x 800 60Hz, 60Hz RB
  1280 x 960 60Hz
  1280 x 1024 60Hz
  1360 x 768 60Hz
  1366 x 768 60Hz, 60Hz RB
  1440 x 900 60Hz, 60Hz RB
  1680 x 1050 60Hz, 60Hz RB
  1920 x 1080 50, 60Hz

  HD model:
  640 x 480 60Hz
  640 x 400 70Hz
  720 x 400 70Hz
  800 x 600 56, 60Hz
  1024 x 768 60Hz
  1280 x 720 50, 60Hz
  1360 x 768 60Hz

  Viewing Angle

  FHD Model:
  Horizontal: ±80° / 160° total; Vertical: ±80° / 160° total

  HD Model:
  Horizontal: ±45° / 90° total; Vertical: -35°/ +15° / 50° total

  Number of Colors

  16.7 million

  Brightness (typical)

  FHD model
  LCD Panel: 250 nits
  PCAP + DC power: 225 nits
  PCAP + USB-C 5V power: 180 nits

  HD model
  LCD Panel: 220 nits
  PCAP + DC power: 198 nits

  Response Time-total (typical)

  FHD model: 30 ms
  HD model: 10 ms

  Contrast Ratio

  FHD Models: 700:1 / HD Models: 400:1

  Touch Interface

  USB

  Surface Treatment

  Anti-glare

  On Screen Display

  Accessible through switches along the bottom:

  Controls: Menu, Up, Down, Select

  Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, Volume, Mute, Recall Defaults, Audio Select, Video Priority, Information, Touch on Sleep Mode, Peripheral Port (FHD Model only)

  Languages: English, French, Italian, German, Spanish, Japanese, Traditional Chinese, Simplified Chinese

  Lockouts: OSD, Power

  I/O Ports

  FHD Model:
  1 x USB Type-C
  1 x Audio jack (Line-in)
  1 x VGA (Micro-HDMI female connecter)
  1 x HDMI
  1 x 12V D/C input
  3 x Micro-USB ports (Top, Left, Right) to support Elo Edge Connect peripherals

  HD Model:
  1 x USB Type-B
  1 x Audio jack (Line-in)
  1 x VGA (Mini-VGA female connecter)
  1 x HDMI
  1 x 12V D/C input
  3 x Micro-USB ports (Top, Left, Right) to support Elo Edge Connect peripherals

  Speakers

  2 x 2W internal speakers

  Video

  FHD Model:
  Analog VGA
  HDMI
  USB Type-C (support DP Alt mode)
  *Suggest using Elo USB Type-C to Type-C (Elo P/N: E710364) cable to prevent any compatibility issues

  HD Model:
  Analog VGA
  HDMI

  Input Video Format

  Horizontal: 31.5 - 82 KHz
  Vertical: 50 - 75 Hz

  Power

  FHD Model:
  Option 1: USB Type-C Input range: 5V±5% 3A/9V±5% 3A/15V±5% 1.8A/20V±5% 1.35A
  Option 2: External DC Adapter 12V/36W in box
  Monitor input power connector: Coaxial power jack (2.0mm (+0.0 -0.1mm) pin outer diameter, 6.4mm (+/- 0.3mm) barrel inner diameter, 8.8mm (+/- 0.3mm) Barrel depth)
  Monitor input voltage range: 12VDC +/- 5%
  Adapter output power connector: DC barrel plug (2.1mm (+/- 0.1mm) pin inner diameter, 5.5mm (+/- 0.05mm) barrel outer diameter, 9.5mm (+/- 0.3mm) Barrel length)
  Adapter input voltage range: 100-240 VAC
  Input frequency: 50-60 Hz

  HD Model:
  External DC Adapter 12V/40W in box
  Monitor input power connector: Coaxial power jack (2.5mm pin outer diameter, 6.4mm barrel inner diameter)
  Monitor input voltage range: 12VDC +/- 5%
  Adapter output power connector: DC barrel plug (2.5mm (+0.1mm) pin inner diameter, 5.5mm (+/- 0.05mm) barrel outer diameter, 9.5mm (+/- 0.3mm) Barrel length)
  Adapter input voltage range: 100-240 VAC
  Input frequency: 50-60 Hz

  Power Consumption (Typical)

  FHD Model (monitor + adapter):
  ON: 9.5 W
  SLEEP: 1.87 W
  OFF: 0.2 W

  HD Model (monitor + adapter):
  ON: 10.2 W
  SLEEP: 0.4 W
  OFF: 0.2 W

  Monitor Dimensions (without Stand)

  9.62" x 15.23" x 1.28" / 244.39 mm x 386.96 mm x 32.4 mm

  Monitor Dimensions (with Stand)

  11.21" x 15.23" x 7.84" / 284.65 mm x 386.96 mm x 199.12 mm

  Shipping Box Dimensions

  With Stand: 8.03" x 17.76" x 13.54" / 204 mm x 451 mm x 344 mm
  Without Stand: 6.89" x 17.76" x 12.60" / 175 mm x 451 mm x 320 mm

  Weight (Unpackaged)

  With Stand: 6.72 lbs / 3.05 kg
  Without Stand: 3.62 lbs / 1.64 kg

  Weight (Packaged)

  With Stand: 11.05 lbs / 5.01 kg
  Without Stand: 7.47 lbs / 3.39 kg

  Operating Temperature

  0°C to 40°C / 32°F to 104°F

  Storage Temperature

  -20°C to 60°C / -4°F to 140°F

  Humidity

  Operating: 20% to 80%; Storage: 10% to 95% (38.7℃ max wet bulb temperature)

  MTBF

  50,000 hours demonstrated

  Mounting Options

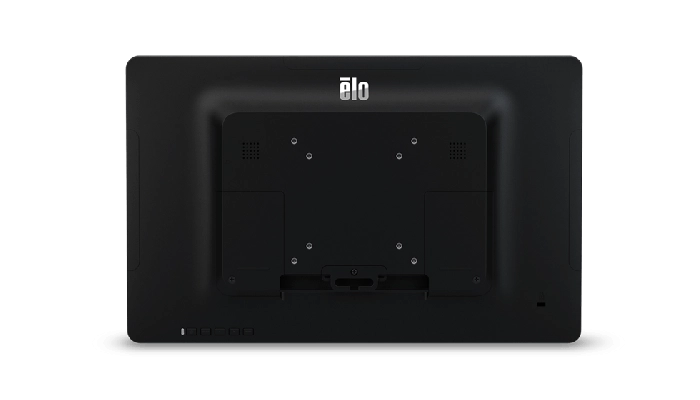

  VESA 4-hole 75mm and 100mm mounting interface on rear of unit

  Warranty

  3-year

  Extended Service Options

  4 year warranty coverage - Elo P/N: E898247
  5 year warranty coverage - Elo P/N: E898449
  3 year warranty coverage + AUR - Elo P/N: E898648
  4 year warranty coverage + AUR - Elo P/N: E894921
  5 year warranty coverage + AUR - Elo P/N: E895125

  Regulatory approvals and declarations

  Canada cUL, IC
  Europe CE
  United Kingdom UKCA
  Japan VCCI
  United States UL, FCC
  China CCC
  Korea, KCC, e-standby
  Australia RCM
  Mexico NOM
  Taiwan BSMI
  International CB
  RoHS, China RoHS, WEEE, REACH
  India BIS
  Russia EAC

  Ingress Protection

  IPX1 for front side

  Impact Protection

  FHD Model: IK07

  What's in the Box

  FHD Model:
  Touchmonitor
  Quick Install Guide
  HDMI cable
  Power brick
  2x cable clamps
  2x tie wraps
  EEI Label
  USB Cable (USB Type-A to Type-C)
  NA Power cable
  EU Power cable
  3x screws (M3x8mm) for cable clamps
  2x screws (M3x10mm) for cable doors
  4x screws (M4x10mm) for E125496 only

  HD Model:
  Touchmonitor
  Quick Install Guide
  HDMI cable
  Power brick
  2x cable clamps
  2x tie wraps
  Mini-VGA to VGA cable (mini-VGA to DE-15 (DB-15) male)
  USB cable (USB Type A plug to USB Type B plug)
  Audio cable
  EEI Label
