Epson DLQ-3500II Dot Matrix Printer

Description

Epson DLQ-3500II Dot Matrix Printer

• Fast and durable wide carriage Epson 24 pin flat-bed printer
• Prints up to 550 characters per second
• Automatic paper handling and automatic paper thickness adjustment
• Prints up to 8 part forms (1 original 7 copies)

What’s In The Box:

• Ribbon cartridge (Black)
• Power Supply Cable
• CD Driver
• Front sheet guide
• User guide

Printing Technology:

---

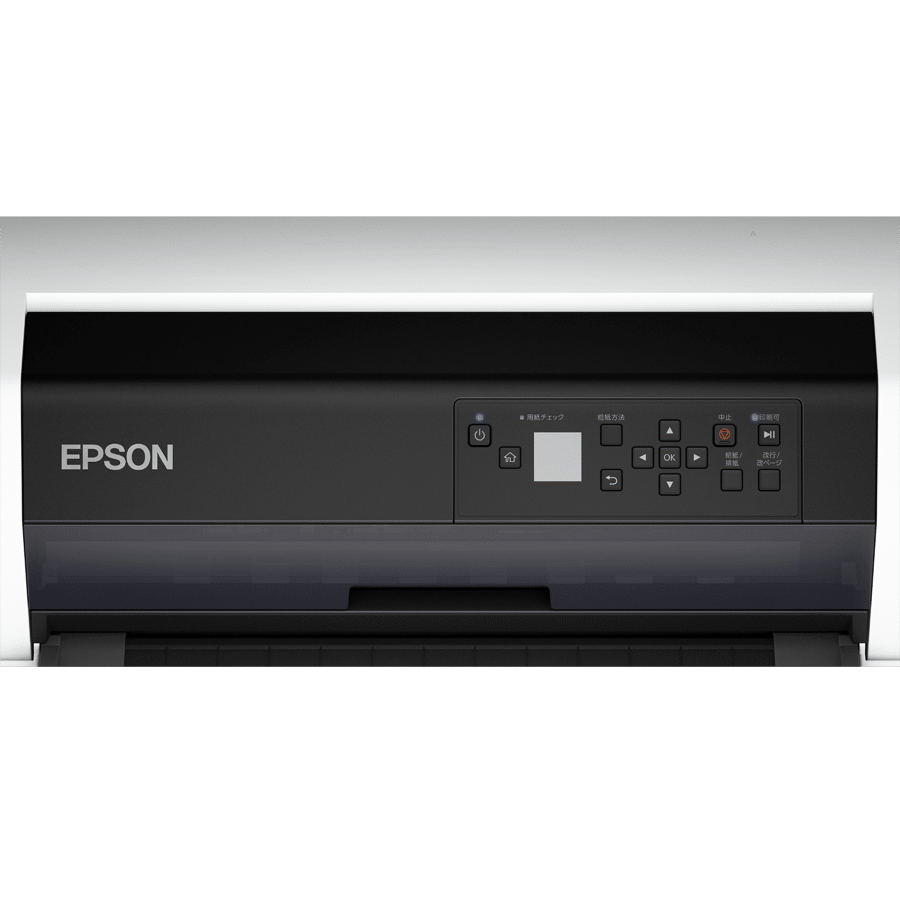

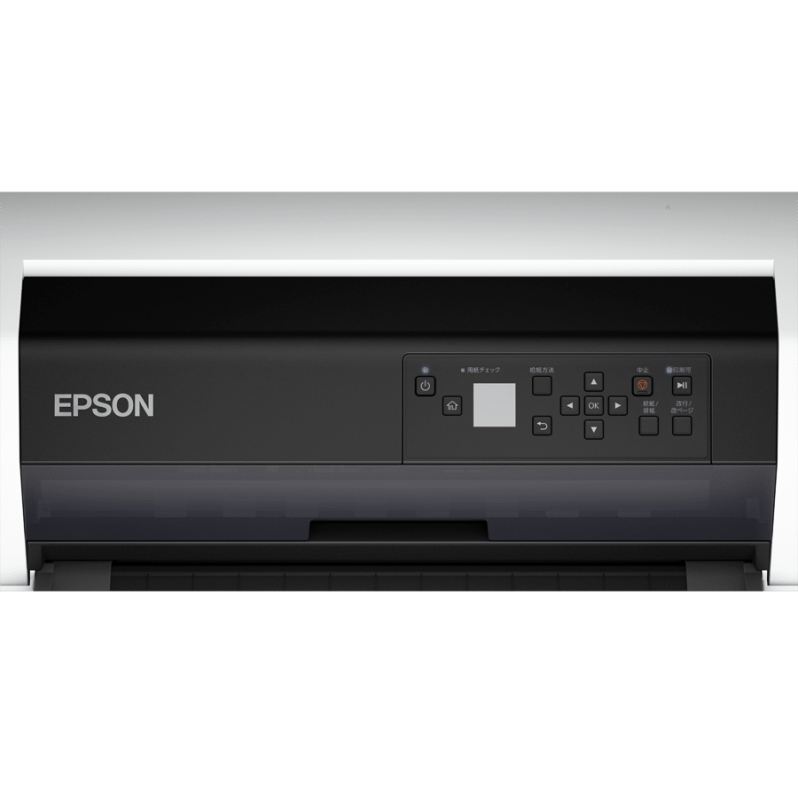

Print Method:Impact dot matrixControl Panel:13 switches and 3 LEDs with 1.44” CLR LCD ScreenPrint Direction:Bi-direction with logic seekingColour:BlackNumber of Pins in Head:24 pins x 2 (total 48 pins)Control Code:ESC/P2 and IBM PPDS emulation

Print Speed:

---

High Speed Draft:10 cpi: 550 cpsDraft:10 cpi: 550 cps
Condensed, 17 cpi: 501 cpsLetter Quality:10 cpi: 195 cps
Condensed, 17 cpi: 333 cps

Reliability:

---

Printhead Life:200 million strokes / wireMean Print Volume Between Failure (MVBF):25 million lines (except print head)Mean Time Between Failure (MTBF):10,000 Power On Hours (POH)

Print Characteristics:

---

Character Sets:1 Italic and 12 graphical character tables
Italic table, PC437 (US Standard Europe), PC850 (Multilingual), PC860 (Portuguese)³, PC861 (Icelandic), PC865 (Nordic), PC863 (Canadian-French), Abicomp, BRASCII, Roman 8, ISO Latin 1, PC 858, ISO 8859-15
Special Font (Thai Model only): Busaba, Jittra Font
Supported 7 character tables: KU42, TIS11, TIS13, TIS16, TIS17, TIS18, TSM/WINBitmap Fonts:EPSON Draft/ Courier: 10 / 12 / 15 cpi ; EPSON Roman /Sans Serif: 10 / 12 / 15 cpi, Proportional ; EPSON Prestige: 10 / 12 cpi ; EPSON Script/ OCR-B/ Orator/ Orator-S: 10 cpi ; EPSON Script C: ProportionalScalable Fonts:EPSON Roman/ Sans Serif/ Roman T/ Sans Serif H: 10.5 pt, 8 pt – 32 pt (every 2 pt)Barcode:EAN-13, EAN-8, Interleaved 2 of 5, UPC-A, UPC-E, Code 39, Code 128, POSTNET

Paper Path:

---

Manual Insertion:Front in, front outPush Tractor:Rear in, front outPull Tractor:Rear in, front out

Paper Media:

---

Cut Sheet (Single Sheet):Length: 80.0 – 420.0mm (3.15 – 16.5″)
Width: 90.0 – 420.0mm (3.15 – 16.5″)
Thickness: 0.065 – 0.19mm (0.0025 – 0.0074″)Cut Sheet (Multi-part Forms):Length: 80.0 – 420.0mm (3.15 – 16.5″)
Width: 90.0 – 420.0mm (3.15 – 16.5″)
Thickness: 0.12 – 0.62mm (0.0047 – 0.0244″)Continuous Paper (Single Sheet / Multi-part):Length: 76.2 – 558.8mm (3.0 – 22.0″)
Width: 101.6 – 406.4mm (4.0 – 16.0″)
Thickness: 0.065 – 0.19mm (0.0025 – 0.0074″)Envelope (No.6):Length: 92.0mm (3.6”)
Width: 165.0mm (6.5”)
Thickness: 0.16 – 0.52mm (0.0063 – 0.0205”)Envelope (No.10):Length: 105.0mm (4.1”)
Width: 241.0mm (9.5”)
Thickness: 0.16 – 0.52mm (0.0063 – 0.0205”)Labels:Base Sheet Length (one page): 76.2 ~ 558.8mm (3.0 ~ 22.0″)Card:Length: 100.0 – 200.0mm (3.9 – 7.8″)
Width: 100.0 – 200.0mm (3.9 – 7.8″)
Thickness: 0.22mm (0.0087″)Copy:1 original 7 copiesLine Spacing:4.23mm (1/6”) or programmable in increments of 0.0706mm (1/360”)

Supported OS and Applications:

---

Supported OS:Windows Server® 2008 Standard / Enterprise (32bit / 64bit), R2 Standard / Enterprise (64bit)

Dimensions and Weight:

---

Dimensions (W x D x H):661 x 433 x 276 mmWeight:18.9kg

Consumables:

---

Consumables:Ribbon Cartridge (Black): C13S015587

Environmental Conditions (Operating):

---

Temperature:² 5 – 35°CHumidty:10 – 80 % RHElectrical Specification:Rated Voltage: AC 100 – 240V
Rated Frequency: 50 – 60 Hz
Power Consumption (Operating): Approx. 78W
Power Consumption (Sleep Mode): Approx. 0.8W

Acoustic Noise:

---

Acoustic Noise:Approx. 59 dB(A) (ISO 7779 pattern)

Input Data Buffer:

---

Input Data Buffer:128 KB

Interface:

---

Interface:Bi-directional parallel interface (IEEE-1284 nibble mode supported), USB 2.0 (Full Speed), Optional Serial Interface Board (No Buffer Type-B)

Printable Columns:

---

Pitch:10 cpi: 136 columns

Ribbon Cartridge:

---

Standard:Fabric Ribbon Cartridge (Black)Ribbon Life:Approx. 6 million characters¹

Supported Operating System:

---

Printer Driver:Microsoft Windows^® XP / Vista / 7 / 8 / 10Utility:Epson Status Monitor 3: Microsoft Windows^® XP / Vista / 7 / 8 / 10
Epson Setting Utility: Microsoft Windows^® XP / Vista / 7 / 8 / 10
