Description

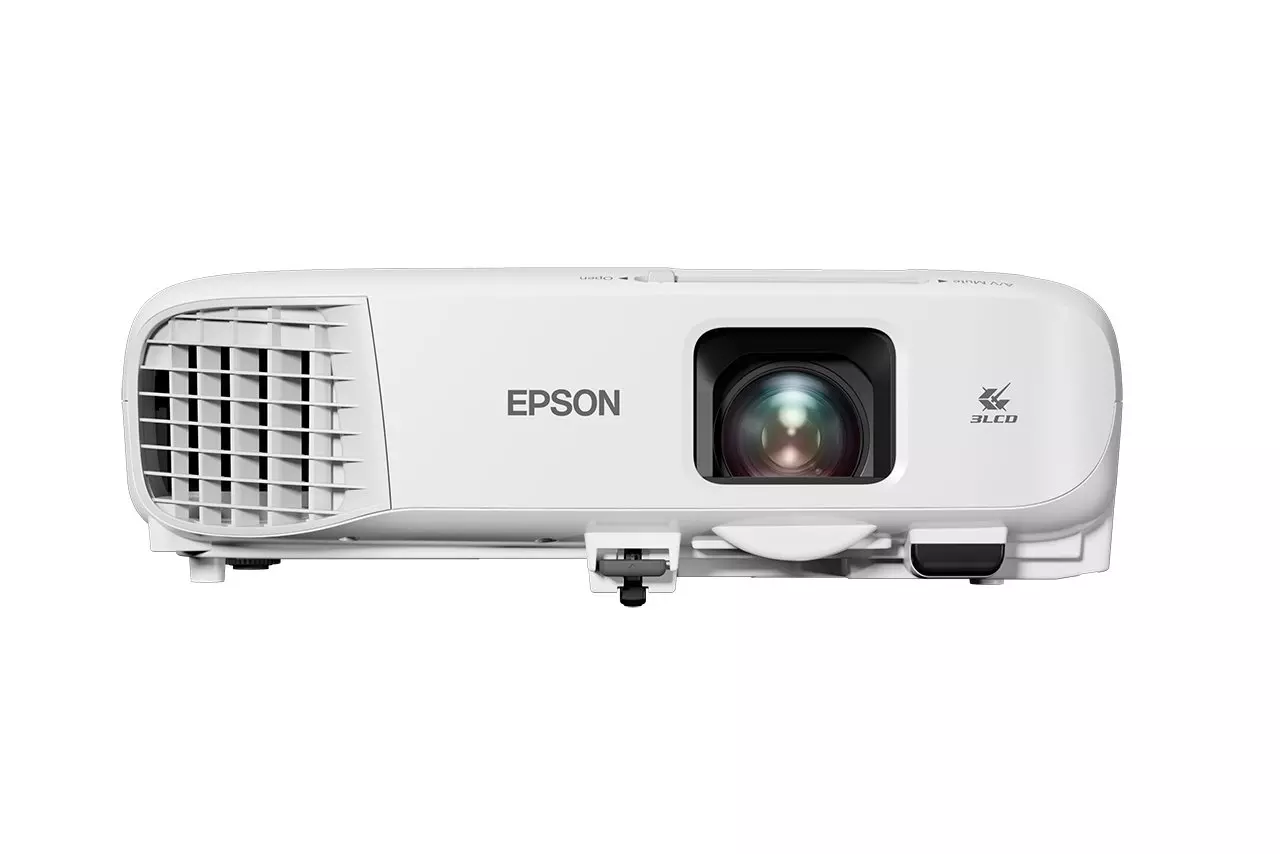

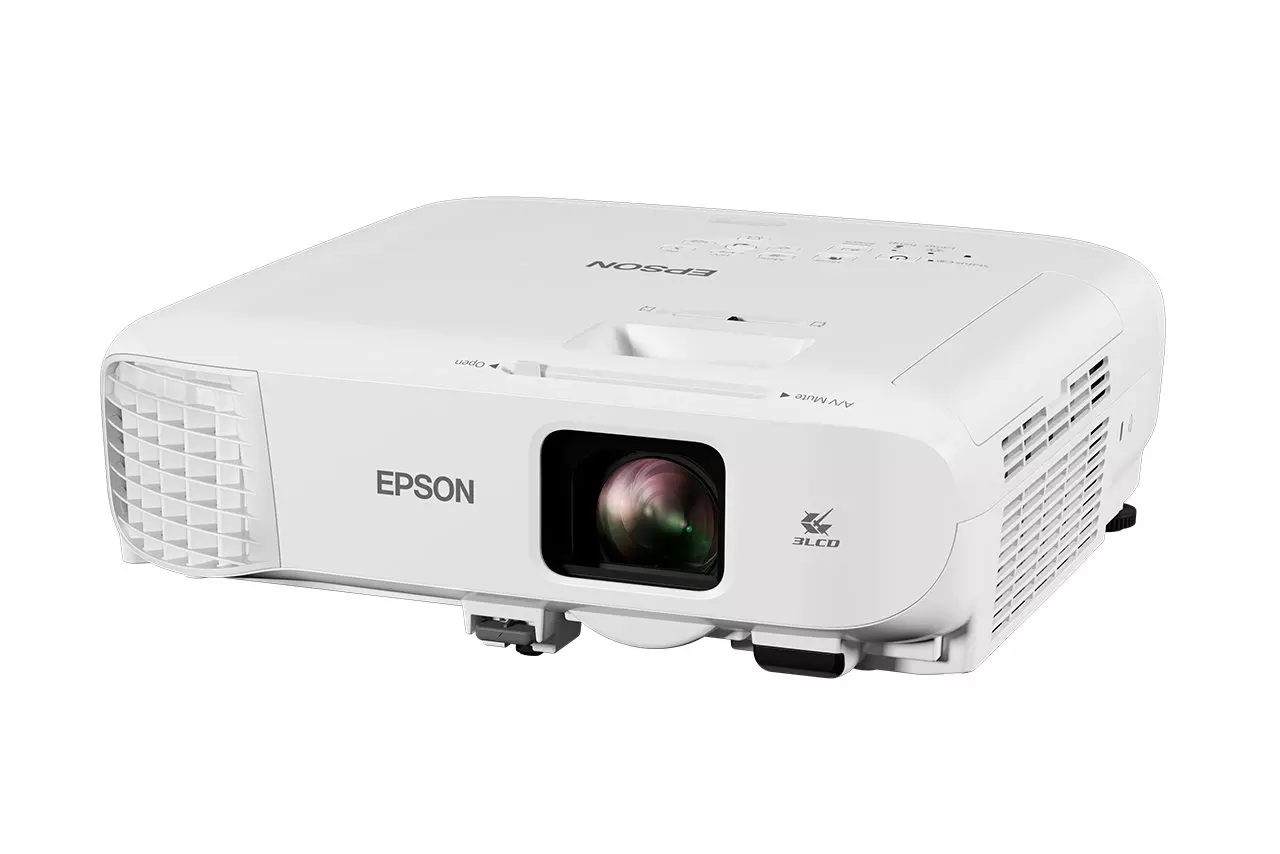

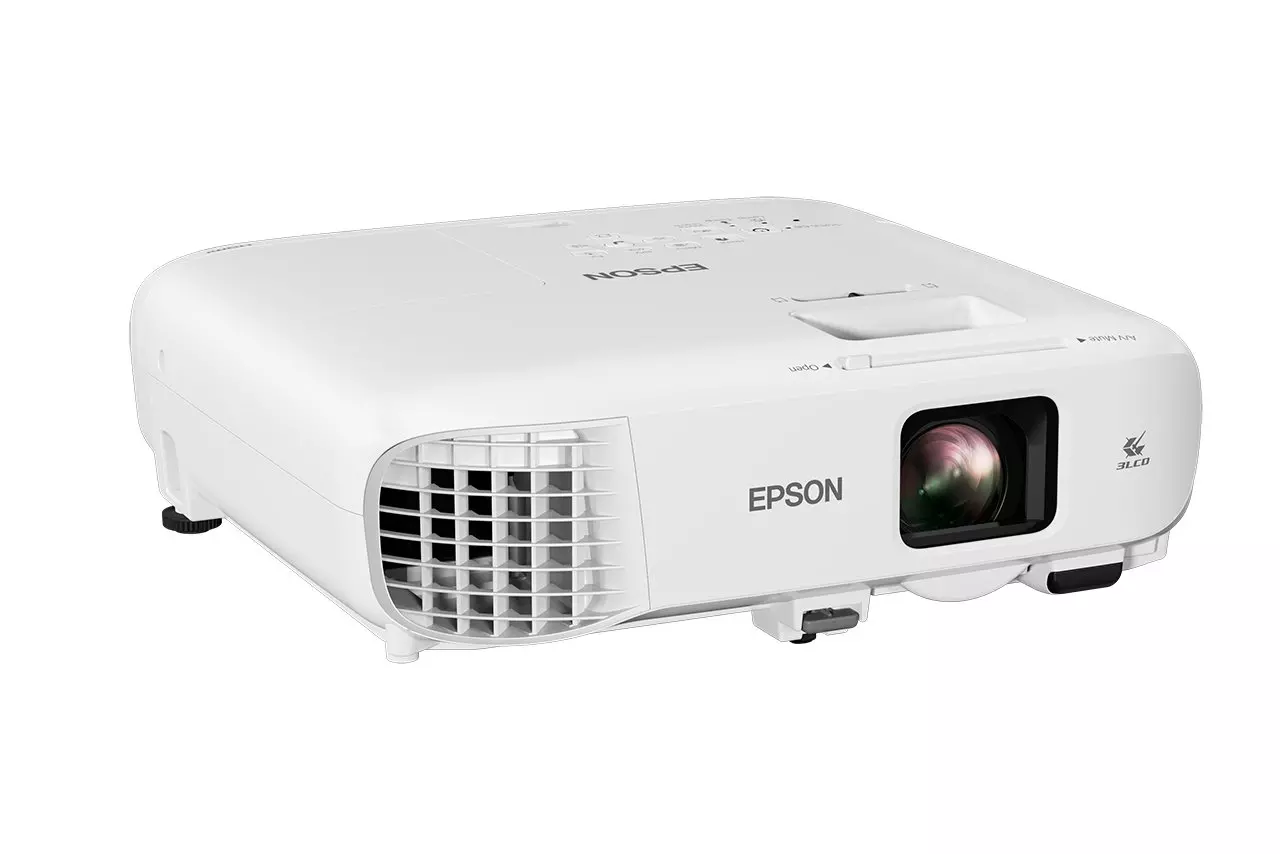

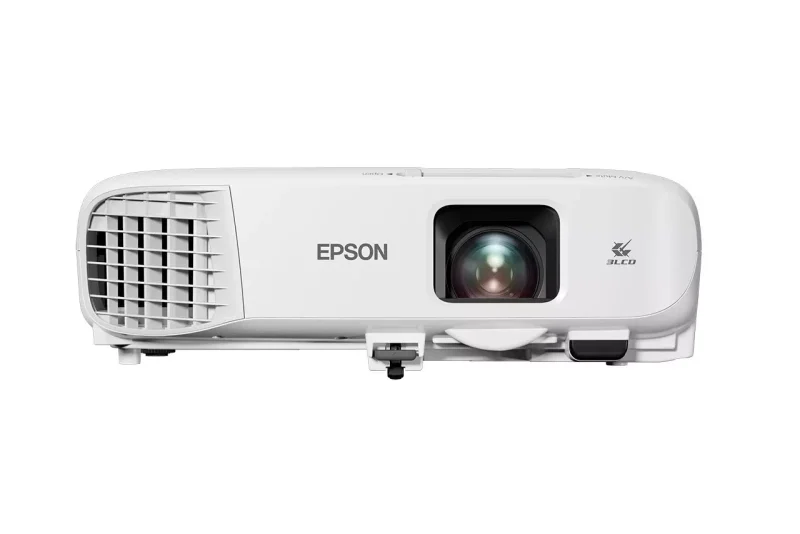

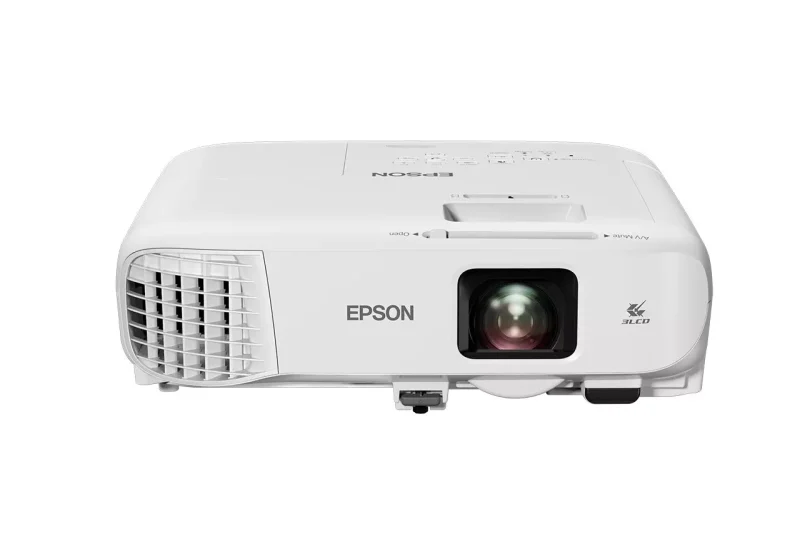

Epson EB-E20 Projector
Affordable display solution
- High-quality bright images 3LCD technology and equally high White and Colour Light Output
- Portable Small and light enough to be moved easily and used in multiple rooms
- High-quality sound Built-in 5W speaker for crisp, clear sound
- Low total cost of ownership Lamp life up to 12,000 hours in Eco mode
- Versatile and flexible control Project from many sources with HDMI

Overview
The Epson EB-E20 projector offers an affordable yet high-quality display solution, perfect for various environments such as classrooms, meeting rooms, and portable use. Utilizing 3LCD technology, it delivers bright and vibrant images with a Color Light Output and White Light Output of 3,400 Lumens each, ensuring excellent performance even in well-lit spaces.
Designed for versatility, this projector is lightweight and portable, allowing for easy movement between rooms. The built-in 5W speaker provides clear audio, making it an ideal choice for presentations that require both visual and sound clarity. With a lamp life of up to 12,000 hours in Eco mode, the EB-E20 offers a low total cost of ownership and minimal maintenance.
Key Features:
- High-Quality Bright Images: 3LCD technology for equally high brightness in color and white light output.
- Portable Design: Lightweight at just 2.7 kg, making it easy to transport.
- Built-In Sound: Integrated 5W speaker for clear audio.
- Long Lamp Life: Up to 12,000 hours in Eco mode for extended use.
- Versatile Connectivity: Supports multiple sources via HDMI and other input options.
What’s in the Box?
- HDMI Cable (1.8m)
- Main Unit
- Power Cable
- Quick Start Guide
- Remote Control (including batteries)
Specifications:
| Technology | 3LCD Technology, RGB liquid crystal shutter |
| LCD Panel | 0.55 inch with C2 Fine |
| Color Light Output | 3,400 Lumen (2,200 Lumen in Economy Mode) |
| White Light Output | 3,400 Lumen (2,200 Lumen in Economy Mode) |
| Resolution | XGA (1024 x 768) |
| Aspect Ratio | 4:3 |
| On-Screen Pixel Count | 786432 |
| Contrast Ratio | 15,000:1 |
| Light Source | Lamp |
| Lamp Type | UHE, 210 W, 6,000 h (normal), 12,000 h (eco) |
| Keystone Correction | Manual Vertical: ±30°, Manual Horizontal ±30° |
| Colour Video Processing | 10 Bits |
| 2D Vertical Refresh Rate | 100 Hz – 120 Hz |
| Colour Reproduction | Up to 1.07 billion colours |
| Optical | |
| Throw Ratio | 1.44 – 1.95:1 |
| Zoom | Digital, Factor: 1 – 1.35 |
| Screen Size | 30 inches – 350 inches |
| Projection Distance Wide/Tele | 1.76 m (60 inch screen) |
| Projection Lens F Number | 1.44 |
| Projection Lens Focal Length | 16.7 mm |
| Projection Lens Focus | Manual |
| Offset | 8:1 |
| Connectivity | USB Display Function |
| Interfaces | RS-232C, VGA in (2x), VGA out, HDMI in, Composite in, Jack plug out, Jack plug in (2x), Cinch audio out, USB 2.0 |
| Epson iProjection App | Ad-Hoc / Infrastructure |
| Security | Kensington lock, Control panel lock, Security cable hole, Password protection |
| 2D Colour Modes | Dynamic, Cinema, Presentation, sRGB, Blackboard |
| Other Features | AV Mute Slide, CEC compatible, Digital zoom, Direct Power on/off, Document Camera Compatible, OSD copy function, Quick Corner, Split-Screen-Function |
| Video Color Modes | Blackboard, Dynamic, Presentation, sRGB, Theatre |
| General | |
| Power Consumption | 286 Watt (Normal On-Mode), 180 Watt (Eco On-Mode) |
| Supply Voltage | AC 100 V – 240 V, 50 Hz – 60 Hz |
| Product Dimensions | 309 x 282 x 87 mm (W x D x H) |
| Product Weight | 2.7 kg |
| Noise Level | Normal: 37 dB (A) – Economy: 28 dB (A) |
| Supported Temperature | Operation: 5° C – 40° C, Storage: 10° C – 60° C |
| Supported Humidity | Operation: 20% – 80%, Storage: 10% – 90% |
| Options | Air filter, Ceiling mount, Document camera, External Speaker, Safety wire set, Soft carry case, Spare lamp, Suspension adapter, WP System – ELPWP20, Wireless transmitter – ELPWT01 |
| Loudspeaker | 5 Watt |
| Room Type / Application | Boardroom, Huddle space / Portable, Meeting room / Classroom |
| Positioning | Ceiling Mounted, Desktop |
| Color | White |
| Warranty | 36 months Carry-in, Lamp: 36 months or 1,000 h |
