Description

Epson EB-L260F Laser Projector

Deliver Full HD content easily through a scalable display delivering of up to 310 inches combined with stream and share connectivity.

Combined with advance features, the EB-L260F is an entry-level Full HD wireless laser projector the ideal solution for any working environment. It offers 4,600 lumens brightness, a range of wireless and wired connectivity and the ability to have a scalable display size of up to 310 inches.

Excel your content delivery

The perfect Full HD laser display solution allows you to upgrade to laser performance and reliability without paying a premium. High contrast of 2,500,000:1 and 3LCD technology ensures professional, outstanding and clear content delivery in any working environment while keeping audiences engaged.

Simple set-up and connectivity

Offers MTR auto power-on function by HDMI video signal detection and an array of connectivity options including Dual HDMI and built-in wireless LAN to stream content from laptops or mobile devices with Screen Mirroring (Miracast) – PIN code support and display dialog username when connected Miracast to projector allows teacher to block student interruption while teacher is projecting. USB power supply (2A) for easy smart stick connection. Compatible with iProjection software for easy connectivity with mobile devices and content sharing.

Peace of mind and long-lasting durability

Project for longer with exceptional reliability and a longer usage life of up to 30,000 hours in Eco Mode (20,000 hours normal). The EB-L260F is covered by a five-year warranty.

Fit and forget installation, ease of installation

This light weight and compact projector supports 360 degree installation without compromising the display quality and supports 16:6 ultra-widescreen, HDMI output and edge blending for multi-projector installs.

KEY FEATURES

• • 4,600 lumens brightness display: Full HD crisp images and bright colours, even in well-lit rooms
  • A scalable display: Flexible scalable display from 31 inches up to 310 inches
  • Stream content easily: Wireless, MTR auto power-on by HDMI and easy smart stick connection.
  • Fit and forget reliability: Easy installation with multi-projection and signage function.
  • The complete solution: With an incredible contrast ratio of 2,500,000:1, the EB-L260F delivers vivid, lifelike content and defined shadow detail with deeper blacks

What is in the box?

1. HDMI Cable
2. Main unit
3. Power cable
4. Quick Start Guide
5. Remote control incl. batteries
6. Warranty card

Projector Specifications:

Technology
Projection System	3LCD Technology, RGB liquid crystal shutter
LCD Panel	0.62 inch with C2 Fine
Color Light Output	4,600 Lumens (Normal), 3,200 Lumens (Eco)
White Light Output	4,600 Lumens (Normal), 3,200 Lumens (Eco)
Resolution	1080p Full HD
Aspect Ratio	16:9
On-Screen Pixel Count	2073600
Contrast Ratio	5,000,000:1
Light Source	Laser
Laser Light Source Durability	20,000 hours (High), 30,000 hours (Eco)
Keystone Correction	Auto Vertical ±30°, Manual Horizontal ±30°
Color Video Processing	10 Bits
2D Vertical Refresh Rate	192 Hz – 240 Hz
Color Reproduction	Up to 1.07 billion colors
Optical
Throw Ratio	1.32 – 2.12:1
Zoom	Manual, 1 – 1.62x
Projection Lens Zoom Ratio	1.32 – 2.12:1
Lens	Optical
Screen Size	31 inches – 310 inches
Projection Distance (Wide)	0.9 m – 9.1 m
Projection Lens F Number	1.51 – 1.77
Projection Lens Focal Length	18.2 mm – 29.1 mm
Projection Lens Focus	Manual
Offset	10:1
Connectivity

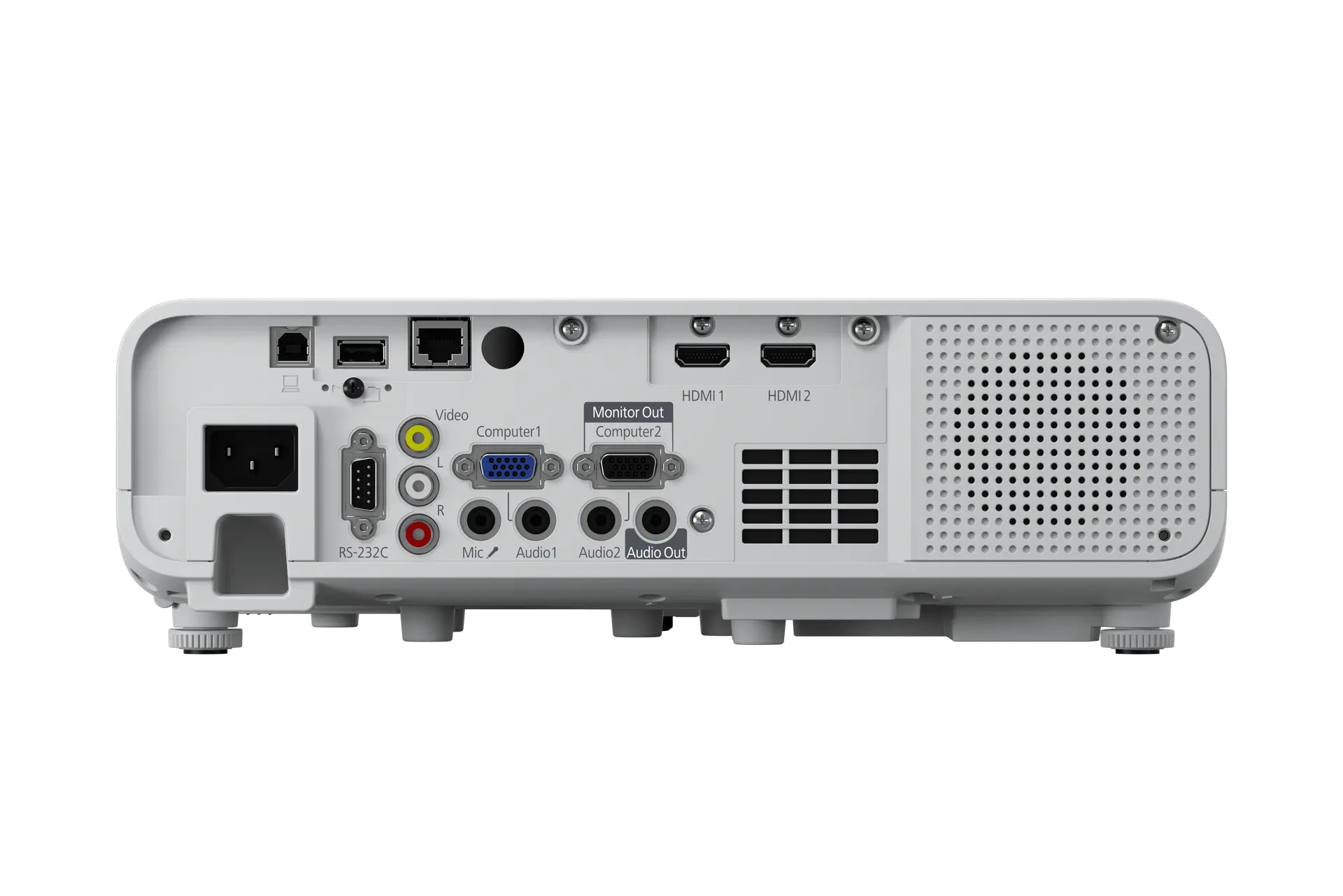

Interfaces	USB 2.0-A, USB 2.0, RS-232C, Ethernet (100 Base-TX/10 Base-T), Wi-Fi Direct, VGA in (2x), VGA out, Composite in, Miracast, Jack plug out, Jack plug in (2x), Cinch audio out, Microphone input, HDMI (HDCP 2.2) (2x), Wireless LAN IEEE 802.11a/b/g/n/ac
Epson iProjection App	Ad-Hoc / Infrastructure
Network Protocol	HTTPS, IPv6, SNMP, ESC/VP.net, PJLink
Advanced Features
Security	Kensington lock, Security bar, Control panel lock, Padlock, Security cable hole, Wireless LAN unit lock, Wireless LAN security, Password protection
2D Color Modes	Dynamic, Cinema, Presentation, sRGB, Game
Other Features	AV Mute Slide, Auto Power On, Auto Source Search, Built-in Speaker, Edge Blending, Screen Mirroring, Wireless LAN Capable, Quick Corner, Split-Screen Function, Super Resolution, Web Control
Video Color Modes	Blackboard, Cinema, Dynamic, Presentation, sRGB, DICOM SIM, Multi Projection
Projector Control	Crestron Integrated Partner, Extron IP Link, AMX Device Discovery, Control4 Simple Device Discovery Protocol
General
Power Consumption	199W (Normal), 144W (Eco), 260W (Peak Normal), 191W (Peak Eco), 0.5W (Standby)
Heat Dissipation	884 BTU/hour (max)
Supply Voltage	AC 220V – 240V, 50Hz – 60Hz
Dimensions (WxDxH)	325 x 299 x 90 mm
Weight	4.2 kg
Noise Level	Normal: 37 dB, Economy: 27 dB
Temperature Support	Storage: -10°C – 60°C
Humidity Support	Operation: 20% – 80%, Storage: 10% – 90%
Included Software	Epson Creative Projection, EasyMP Multi PC Projection, Epson Projector Content Manager, Epson Projector Management
Optional Accessories	Air Filter, Ceiling Mount, External Speaker, Safety Wire Set, Wireless Transmitter, Wall Mount
Loudspeaker	16W
Room Type / Application	Boardroom, Home Office, Large Meeting Room, Classroom, Projection Mapping, Signage, Visitor Attraction
Positioning	Ceiling Mounted, Desktop, Floor, Wall Mounted
Color	White
TCO Certified	Yes (More Info)
Warranty	60 months Carry-in or 12,000 hours
