Epson LQ-690II Dot Matrix Printer

Save 5% Original price was: 29.999 EGP.Current price is: 28.599 EGP.

اتصل الآن

Out of stock

Additional information

Brand

Description

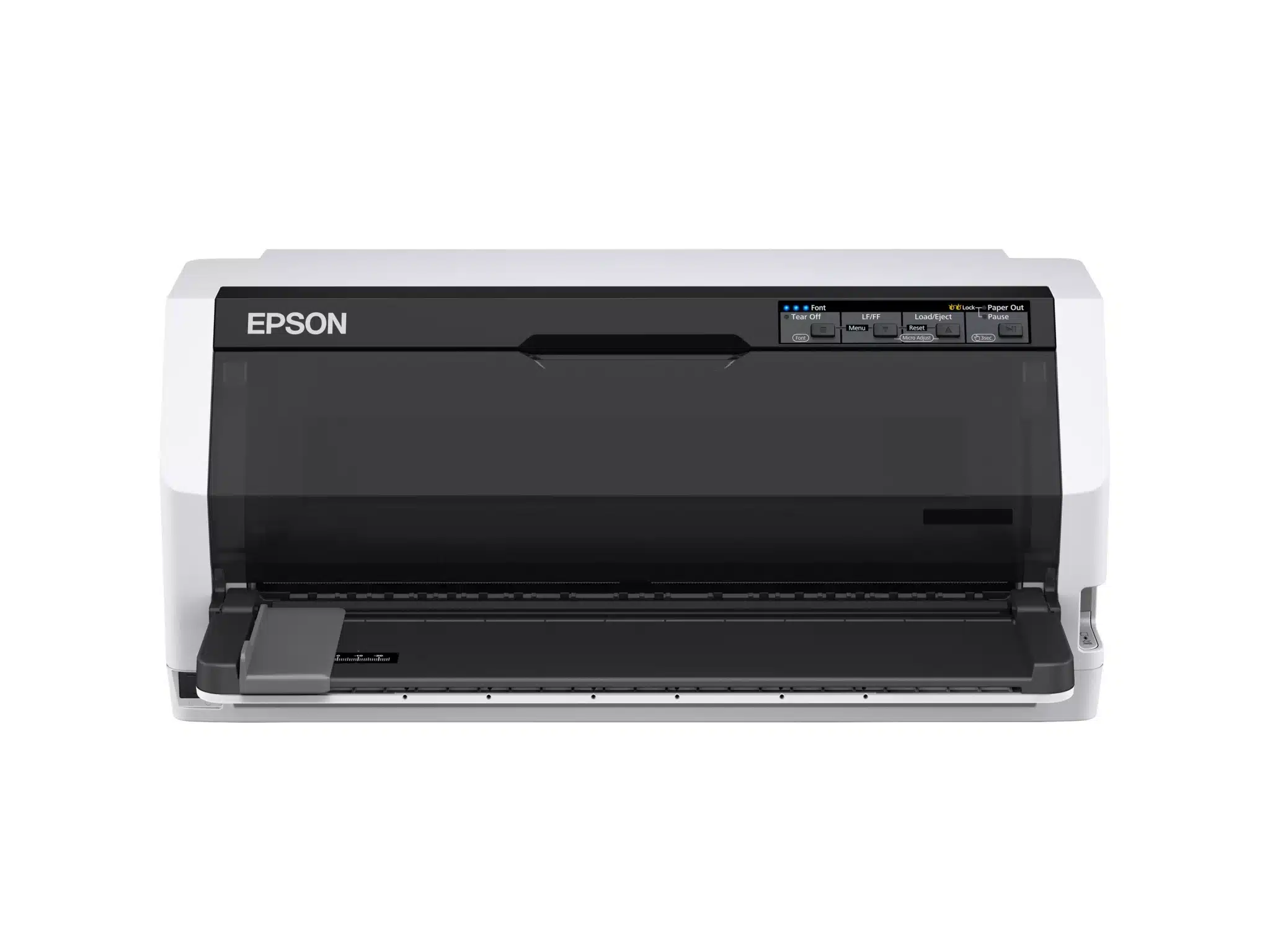

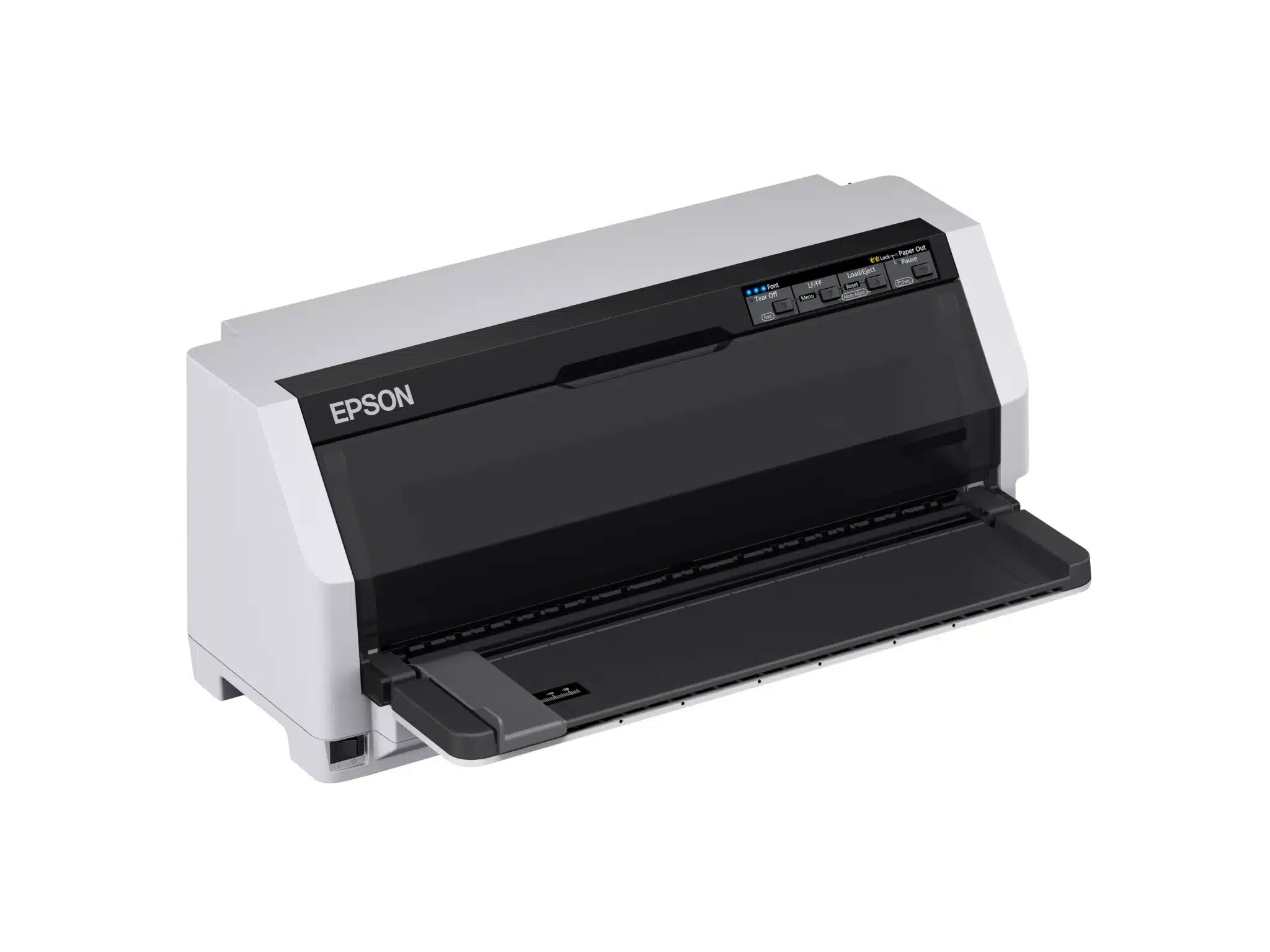

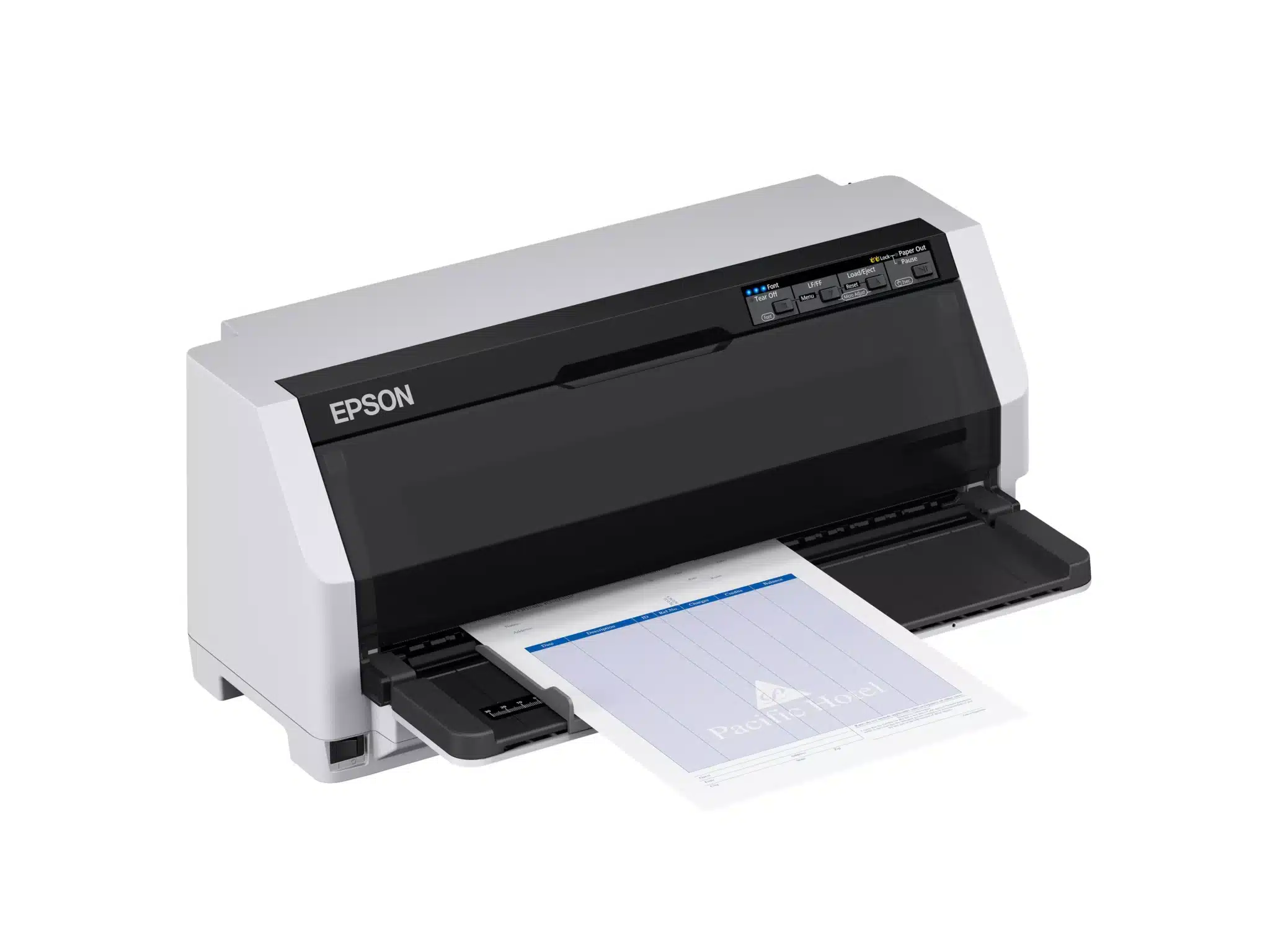

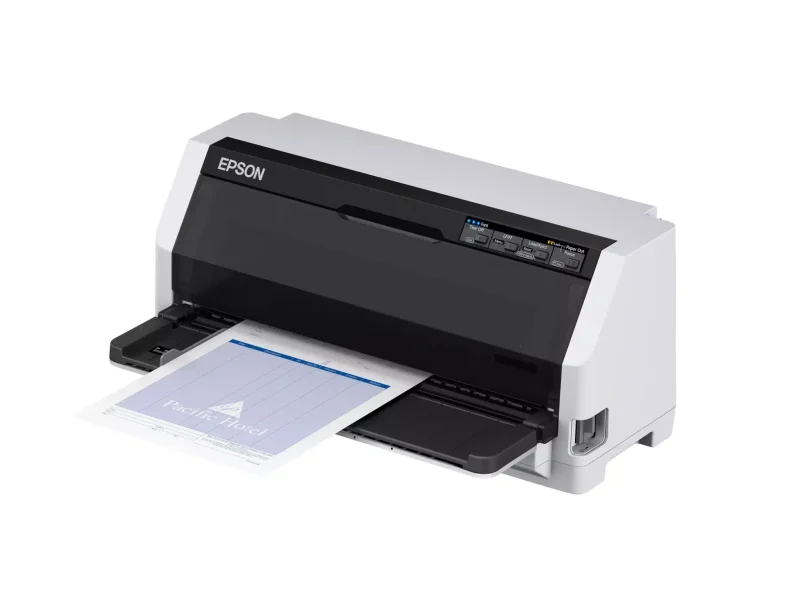

Epson LQ-690II Dot Matrix Printer

Product Overview

The Epson LQ-690II is a reliable and efficient dot matrix printer designed for businesses that require fast and durable printing for multipart forms, invoices, and other essential documents.

 Epson LQ-690II
Epson LQ-690II

Fast printing:

Print faster and more productively. The LQ-690II prints the original six copies, and is capable of printing an impressive 487 cps (10 cpi) when using printer resident fonts.

High ribbon yield:

In a demanding and fast-moving work environment a high ribbon yield is essential, and with 10 million characters per ribbon, this marks the LQ-690II as a leading force in the flatbed market. It is also cost-effective, with long ribbon replacement cycles, low running costs and total cost of ownership. In addition, the ribbon is transferrable, which means that you can use ribbons from your current printer in the new printer, resulting in less cost and waste.

Dependable:

Durable and built to last, users will be assured by the MTBF (mean time between failures) of 20,000 power on hours. The robust casing can stand up to high humid and heat conditions, which makes the LQ-690II ideal for any work environment. This results in greater productivity and less maintenance from down time – essential when producing large amounts of documents and data.

Smart design:

This compact hard-working printer is designed to fit on your desk. With its modern, black and white casing, it blends in seamlessly in both office and warehouse environments.

Awards

What is in the box?

Epson LQ-690II
Epson LQ-690II
  1. Driver and utilities (CD)
  2. Main unit
  3. Power cable
  4. Ribbon
  5. Setup guide
  6. Software (CD)
  7. User manual (CD)
  8. Warranty document

                                                                                           Tech Spec s

Technology
Printing Method Impact Dot Matrix
Number of Pins 24 pins
Columns 106 columns
Print Head Life 400 million strokes per wire
Printing Specifications
Resolution 360 x 180 DPI
Printing Speed High-Speed Draft: 10 cpi: 487 chars/s, 12 cpi: 529 chars/s
Draft: 10 cpi: 366 chars/s, 12 cpi: 396 chars/s
LQ: 10 cpi: 121 chars/s, 12 cpi: 132 chars/s
Barcodes Supported Coda bar (NW-7), Code 128, Code 39, EAN-13, EAN-8, Industrial 2 of 5, Interleaved 2 of 5, Matrix 2 of 5, POSTNET, UPC-A, UPC-E
Carbon Copies Original 6 copies
Character Tables PC437, PC708, PC720, PC850, PC858, PC864, PCAR864, ISO-8859-15, Roman 8, Italic
Connectivity
Interfaces USB 2.0, Bidirectional Parallel
Paper and Media Handling
Document Feed Single Sheet: Front
Continuous Media: Rear
Paper Output: Front
Paper Formats Supported Sheet Paper, Continuous Paper, Labels, Roll Paper, Envelopes, Cardboard
Paper Thickness Continuous: 0.065–0.49 mm
Label Base: 0.16–0.19 mm
Label Total: 0.16–0.19 mm
Multi-Part: 0.12–0.49 mm
Single Sheet: 0.065–0.15 mm
General Features
Power Consumption Operation: 38 W
Standby: 3 W
Dimensions (W x D x H) 480 x 301 x 211 mm
Weight 6.8 kg
Operating Environment Temperature: 5°C–35°C
Humidity: 10%–80%
Noise Levels Operation: 59 dB(A)
Standby: 54 dB(A)
Compatibility
Operating Systems Windows 98, 2000, XP, Vista, 7, 8, 10, 11, XP SP3 or later (32-bit), Windows Server 2003 SP2 or later
Included Software Epson Status Monitor
Reliability
MTBF 20,000 hours
Ribbon Yield Up to 10,000,000 characters (Black Draft)
Fonts and Emulations
Fonts Bitmap and Scalable fonts (Roman, Sans Serif, OCR-B, Prestige, Script, Orator, etc.)
Emulations ESC/P2, IBM PPDS
Warranty As per regional availability
