WINDFORCE
COOLING SYSTEM

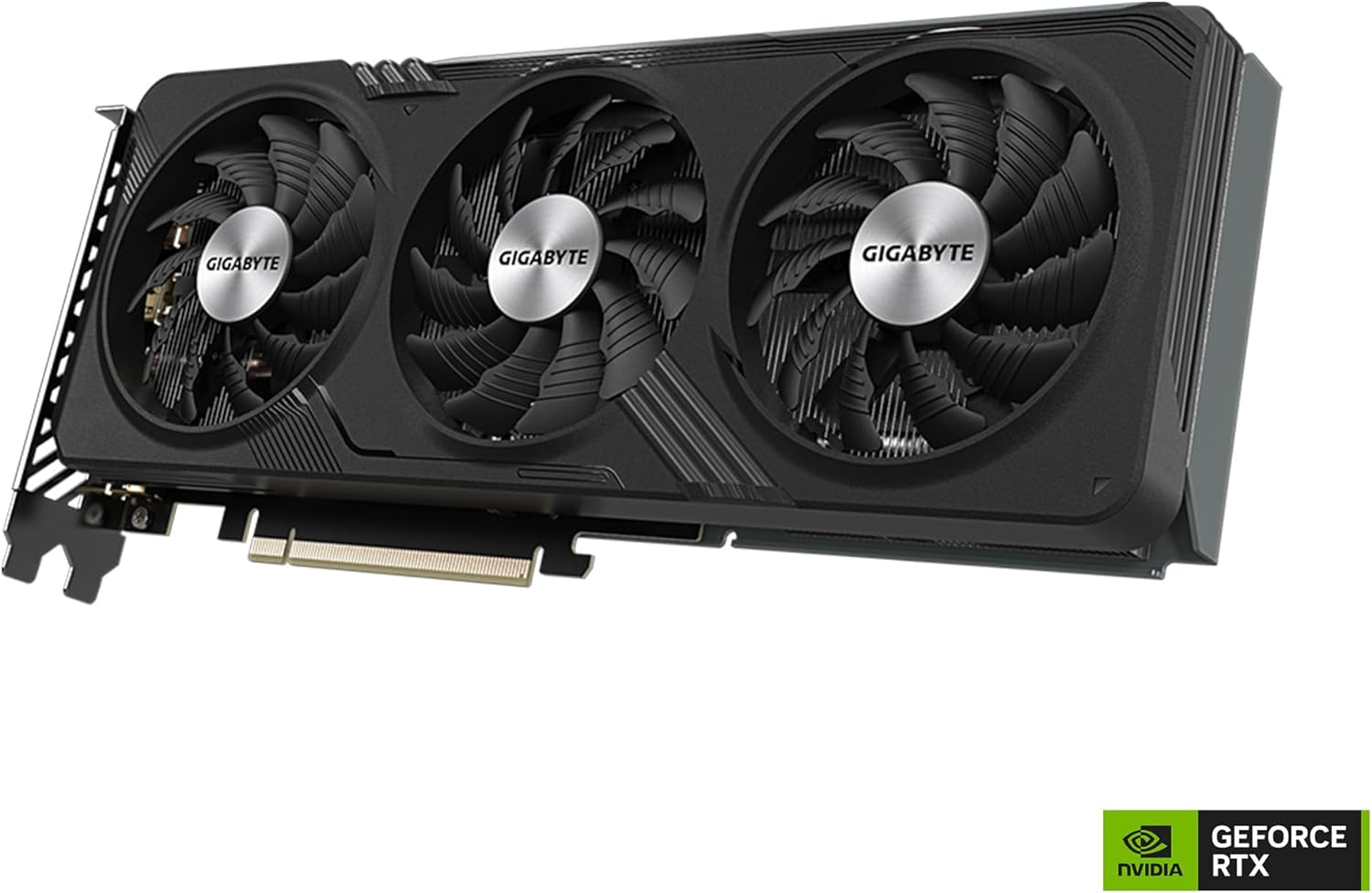

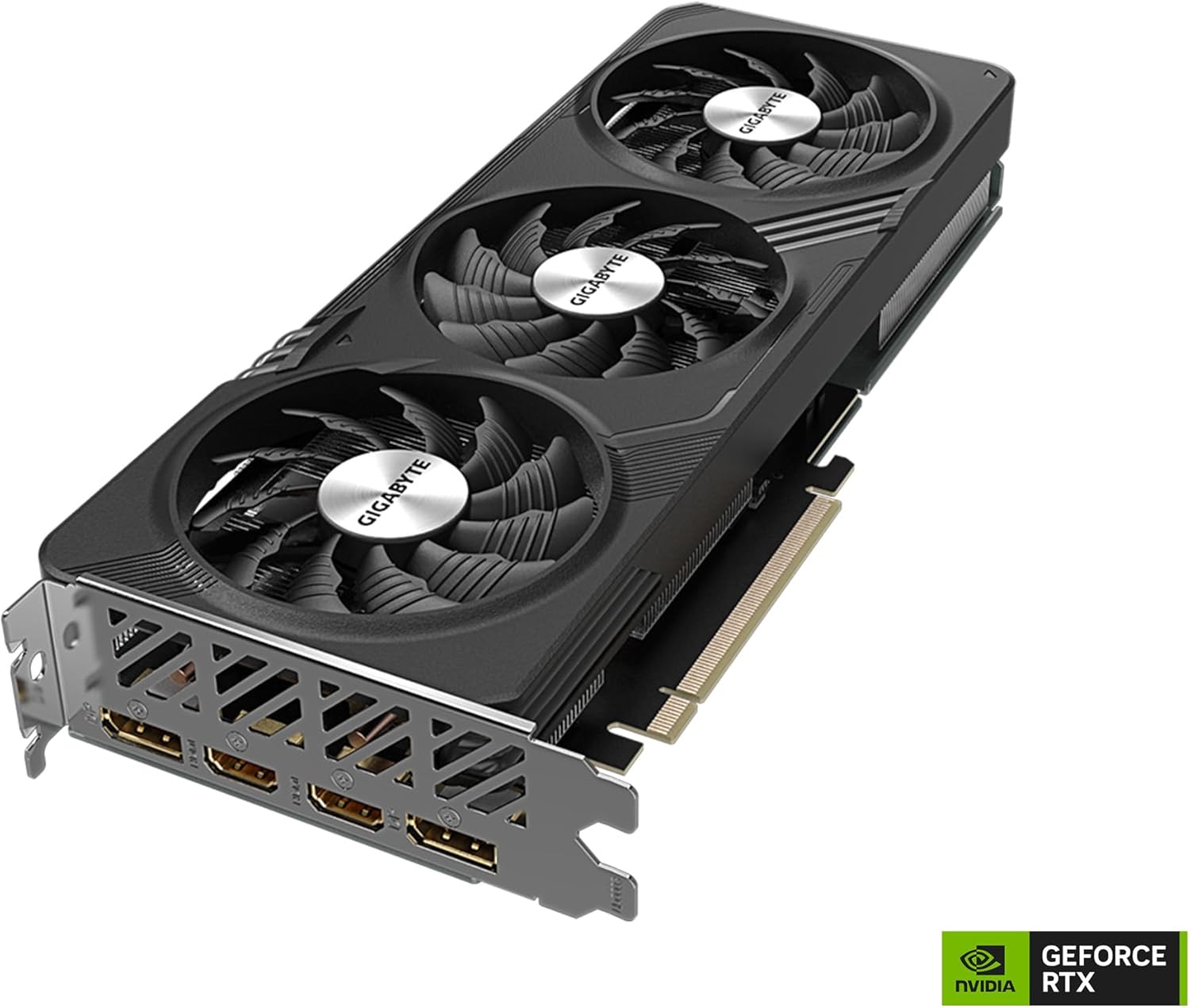

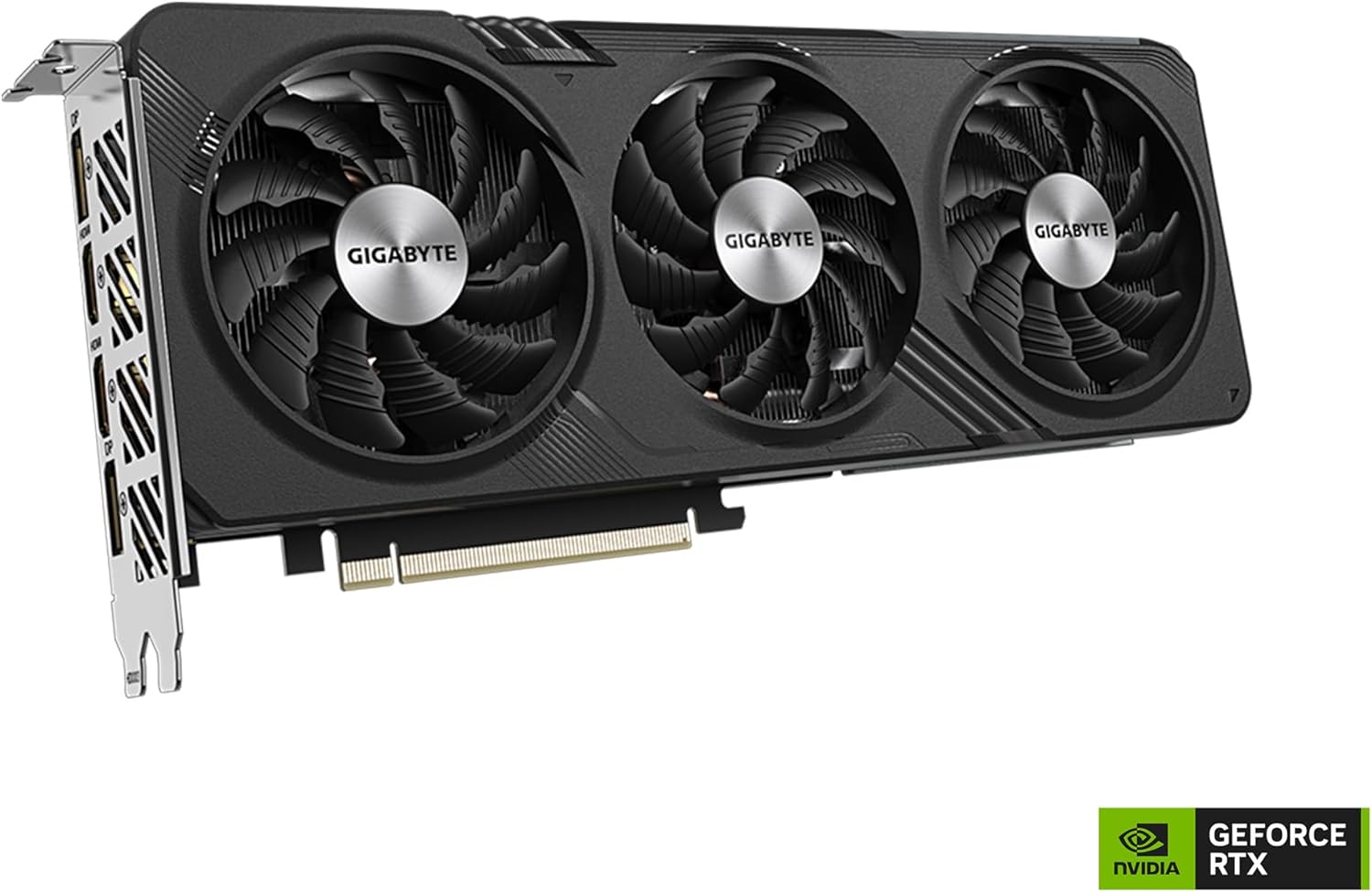

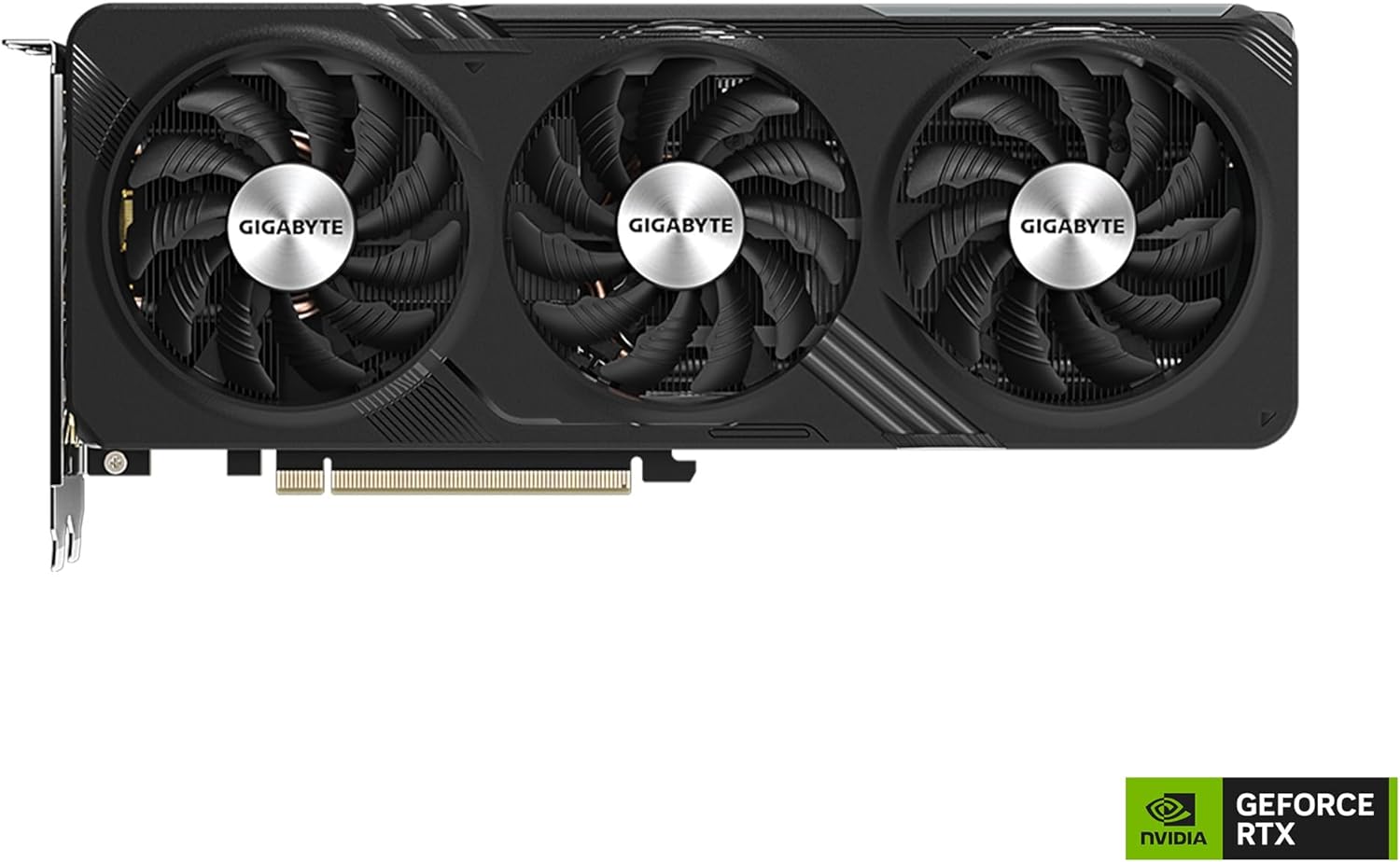

The WINDFORCE cooling system features three 80mm unique blade fans, alternate spinning, composite copper heat pipes that directly touch the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.
RGB FUSION
With 16.7M customizable color options and numerous lighting effects, you can choose any lighting effect or synchronize with other devices in GIGABYTE CONTROL CENTER.
POWER INDICATOR
BUILT STRONG
ULTRA DURABLE
ULTRA COOLING
Lower RDS(on) MOSFETs are specially designed to produce lower switching resistance for faster electric current charging and discharging at extremely low temperature.
LOW POWER LOSS
Metal Choke hold energy much longer than common iron-core chokes at high frequency, thus effectively reduce core energy loss and EMI interference.
LONGER LIFE
Lower ESR Solid Capacitors ensure better electronic conductivity for excellent system performance and longer lifespan.
FRIENDLY PCB DESIGN
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.
Power Through The Game
GIGABYTE offers the best power supply solutions for your graphics cards. You can choose either the AORUS series or the UD series to power your graphics card.

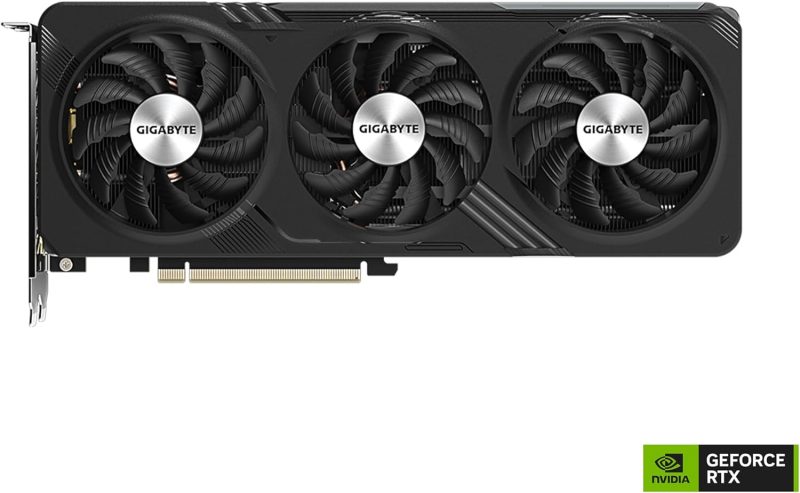

GeForce RTX™ 4060 GAMING OC 8G
| Graphics Processing | GeForce RTX™ 4060 |
| Core Clock | 2550 MHz (Reference card: 2460 MHz) |
| CUDA® Cores | 3072 |
| Memory Clock | 17 Gbps |
| Memory Size | 8 GB |
| Memory Type | GDDR6 |
| Memory Bus | 128-bit |
| Card Bus | PCI-E 4.0 |
| Digital Max Resolution | 7680 x 4320 |
| Multi-view | 4 |

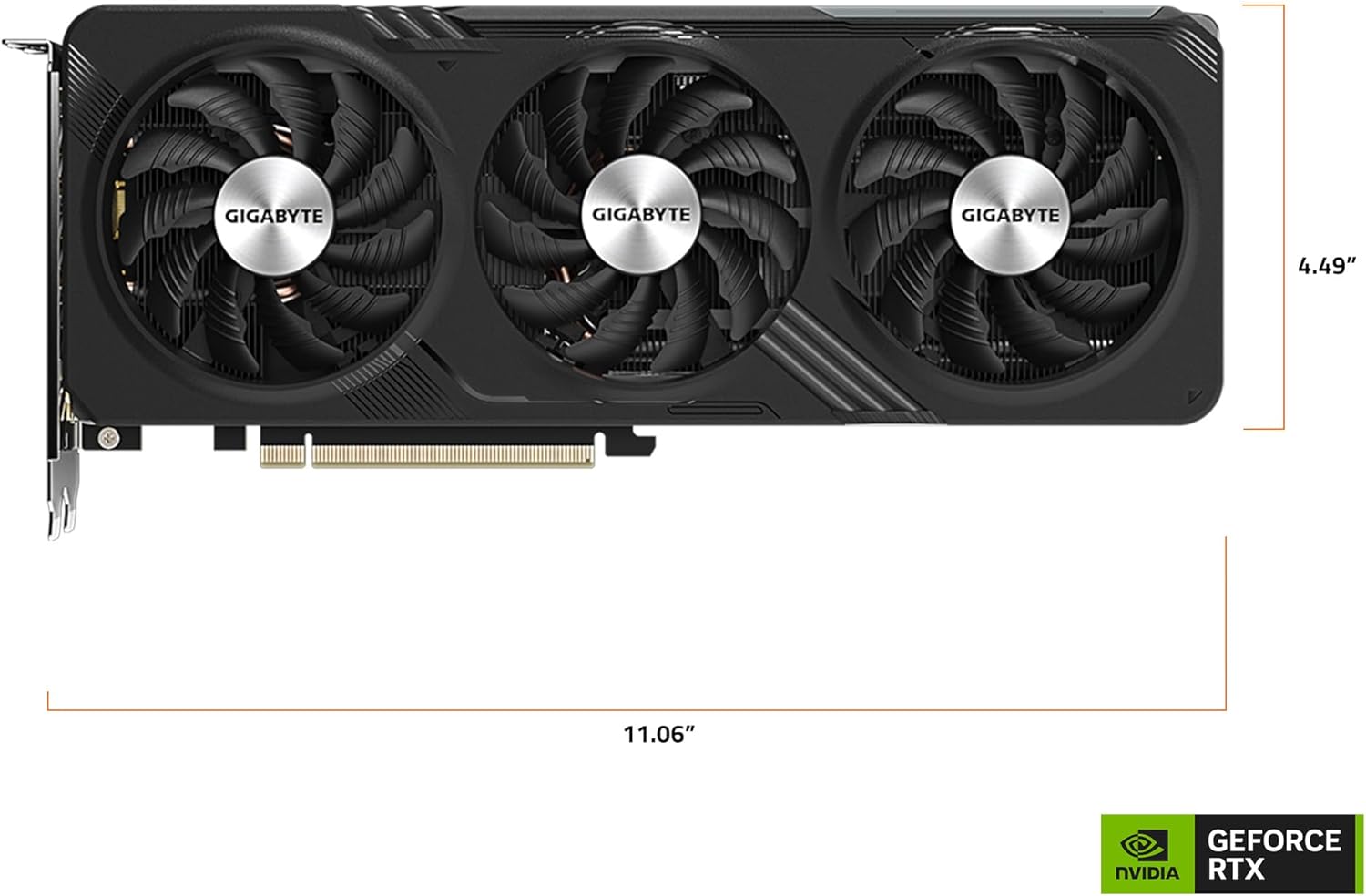

| Card Size | Length: 281 mm, Width: 114 mm, Height: 40 mm |
| PCB Form | ATX |
| DirectX | 12 Ultimate |
| OpenGL | 4.6 |
| Recommended PSU | 450W |
| Power Connectors | 1 x 8-pin |

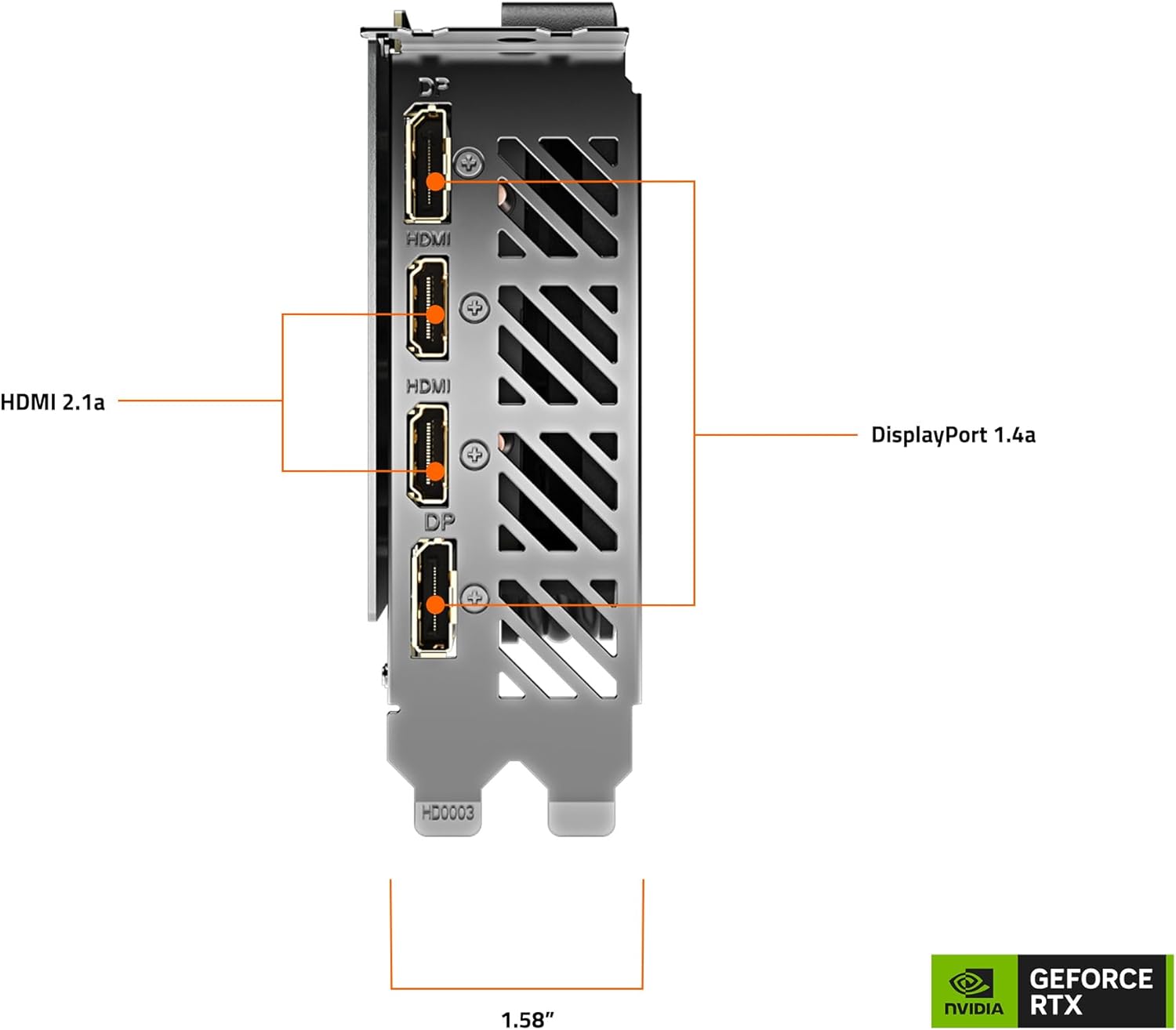

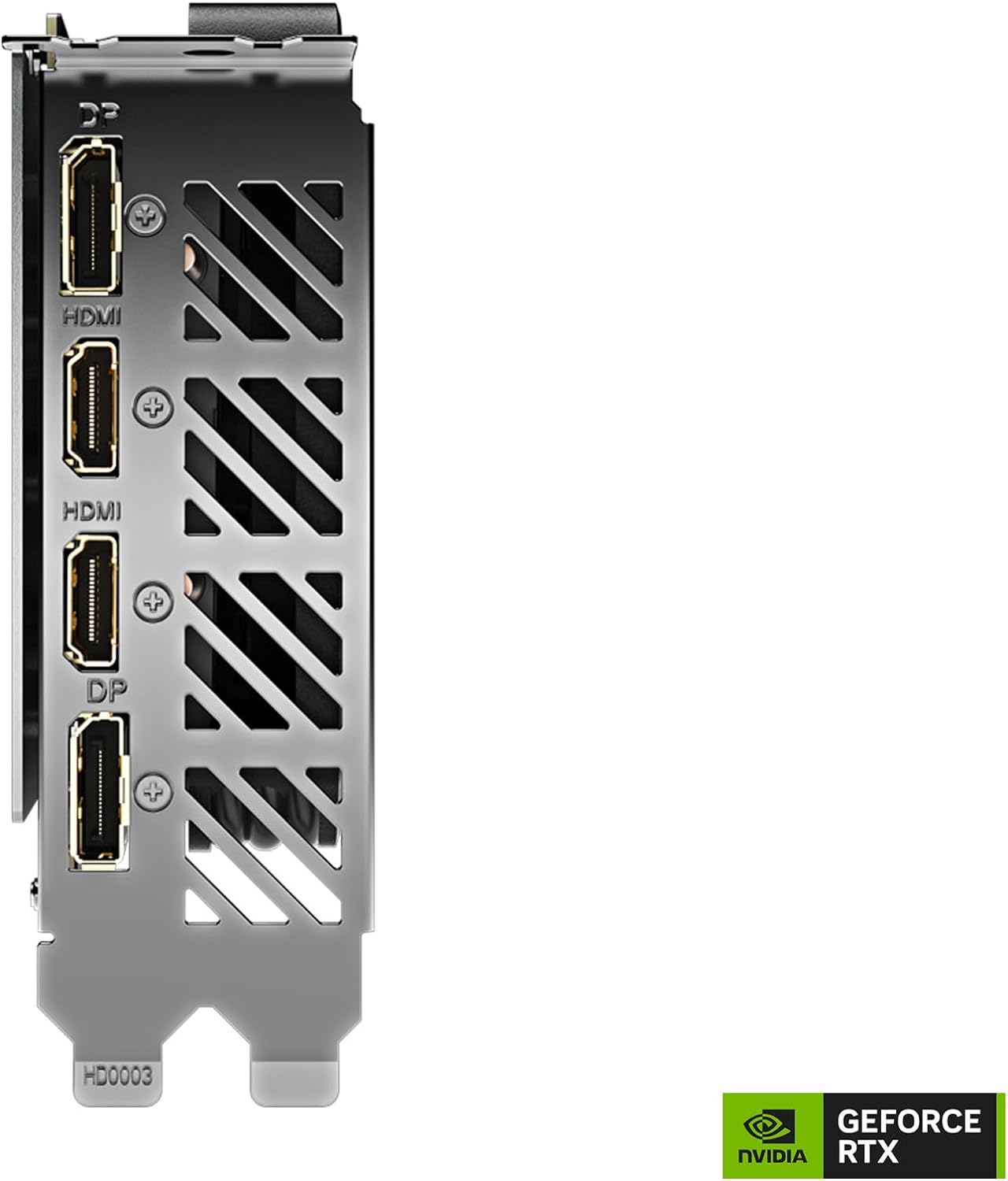

| Outputs | 2 x DisplayPort 1.4a 2 x HDMI 2.1a |
| Accessories | Quick guide |
Notes:
- HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress, and HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
- The information provided is for reference only. GIGABYTE reserves the right to modify or revise content at any time without prior notice.
- Advertised performance is based on maximum theoretical values from the respective chipset vendors or organizations who defined the interface specification. Actual performance may vary by system configuration.
