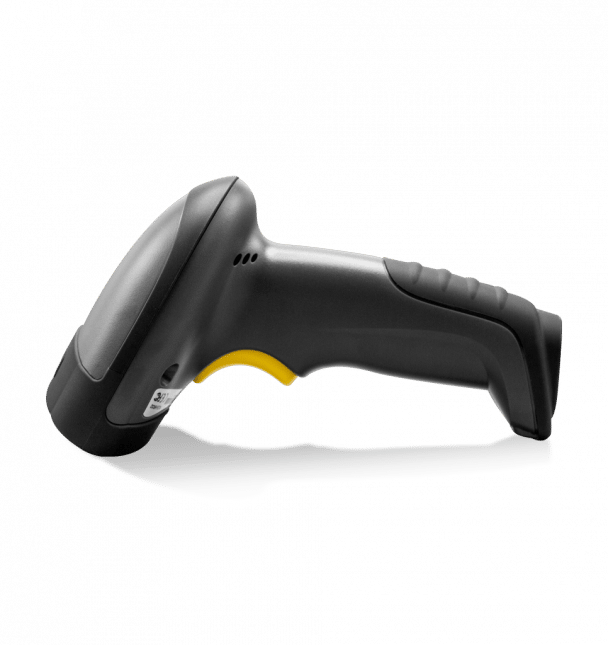

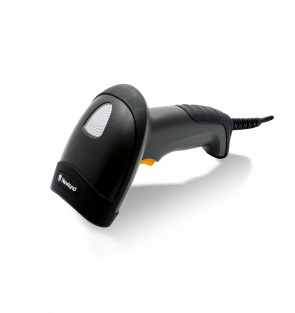

HR32 Marlin Corded Handheld Scanner - Overview
The Barcode Scanning Powerhouse
The HR32 Marlin Corded handheld scanner is engineered for scan-intensive use in retail, logistics, hospitality, finance, healthcare, and postal industries. Equipped with a megapixel camera, it efficiently scans both 1D and 2D barcodes, including very small and high-density codes, with remarkable speed and ease.
Key Features
- Megapixel Camera: Ensures high-speed scanning of all 1D and 2D barcodes, even those with high resolution.
- Durable Construction: Built to withstand drops up to 1.5 meters and protected against water and dust with an IP52 rating.
- Ergonomics: Designed for comfort during prolonged use, reducing user fatigue.
- Versatile Scanning: Capable of reading barcodes on both paper and screens.
- Accessories: Comes with a coiled cable and offers a foldable smart stand.
Technical Specifications:
| Data Capture | |
| 1D | All major 1D symbologies |
| 2D | All major 2D symbologies |
| Image Sensor | CMOS 1280 x 800 |
| Aiming | Green LED |
| Illumination | Red LED (625±10 nm) / White LED |
| Scan Modes | Trigger (Level, Pulse), Sense, Continuous Mode |
| Scan Rate | 60 frames per second |
| Depth of Field (varies by barcode type) | EAN 13 (13mil): 45-510mm, Code 39 (5mil): 75-220mm, PDF417 (6.67mil): 70-215mm, DataMatrix (10mil): 50-220mm, QR (15mil): 20-330mm |
| Field of View | Horizontal: 39°, Vertical: 24° |
| Scan Angle | Roll: 360°, Pitch: ±55°, Skew: ±55° |
| Minimal Print Contrast | 25% |
| Performance | |
| Processor | 1GHz, X1500 |
| Physical | |
| Buttons | Trigger |
| Current @ 5VDC | Operating: 238.2mA (typical), 260.5mA (max.), Standby: 71.3mA |
| Dimensions (mm) | 113.5(W) x 73.3(D) x 159.0(H) |
| Input Voltage | 5VDC ± 5% |
| Interfaces | RS-232, USB |
| Material | PC, ABS |
| Notifications | Beep, LED indicator |
| Power Consumption | 1289.6mW (typical) |
| Power Supply Input | DC5V, 1.5A |
| Power Supply Output | AC100240V, 5060Hz |
| Weight | 162g |
| Environmental | |
| Ambient Light | 0 ~ 100000 lux (natural light) |
| Operating Temperature | -20℃ to 60℃ (-4°F to 140°F) |
| Storage Temperature | -40℃ to 70℃ (-40°F to 158°F) |
| Humidity | 5%~95% (non-condensing) |
| Electro Static Discharge (ESD) | ±15 kV (air discharge), ±8 kV (direct discharge) |
| Drop | 1.5m |
| IP Rating | IP52 |
| Software | |
| Configuration Tools | EasySet |
| Certifications | |
| Hardware | CE, FCC, RoHS, IEC62471, KC |
| Warranty | |
| Standard | 5 years |
