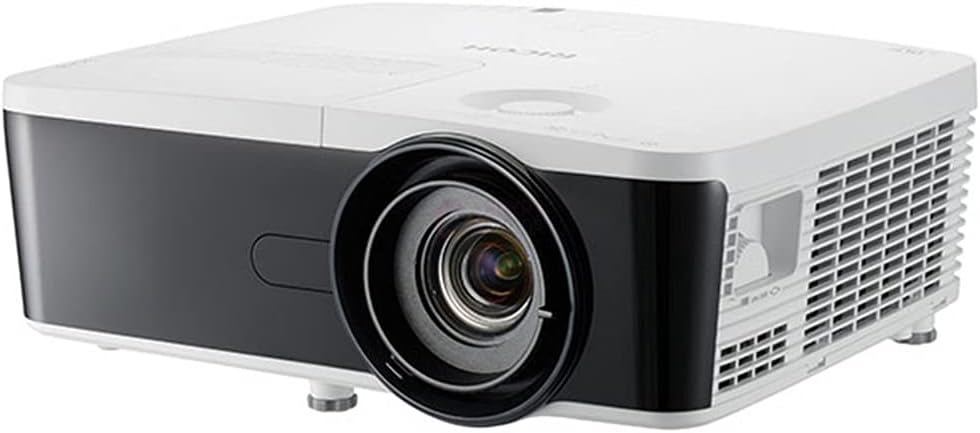

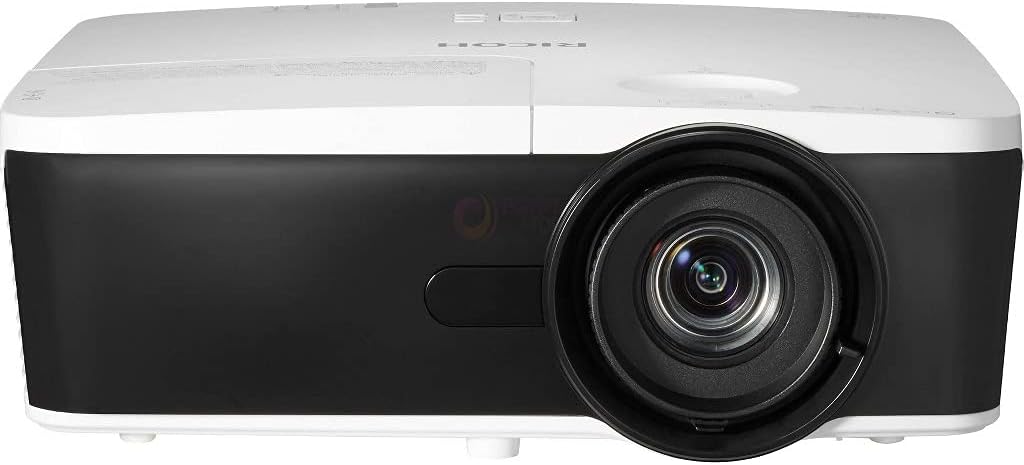

Ricoh PJ X5570 Projector 5000 Lumens 1024×768 Resolution 13000:1 Contrast Ratio and Versatile Connectivity including VGA HDMI and USB
For corporate and educational presentations and training sessions, the powerful, compact and light
weight Ricoh PJ X5770 and PJ WX5770 projectors are ideal.
Crisp clarity, strong brightness and high
image quality help ensure audience engagement in virtually any mid to large-size meeting room and
classroom.
High quality twin 12W speakers enhance your ability to make a memorable impact.
Take advantage of reliable, innovative devices that are easy to use and ready to plug and play – these
projectors will brighten your day.
5,000/5100lm and high quality projection
Flexible – 1.6X zoom lens, vertical lens shift
Impress with sound – two powerful 12W speakers
HDMI, MHL and wireless projection with retail HDMI dongle
Crestron, AMX, Extron compatible: integrate easily

Focus on being brilliant
Even the most compelling presentations can be further enhanced
with clear, crisp, bright images and information being confidently
projected. That is what you get with 5000/5100lm teamed with high
contrast ratio, 1.6x zoom, and four-corner adjustment. All you have
to do is what you do best: your job.
All set to plug and play, these powerful, flexible models provide
high brightness, high contrast and high image quality. Easy
operation helps users comfortably present to up to 50 people, in
style. Business executives and education professionals alike can
rely on top class results time after time.
To help work days flow more smoothly, these feature-rich devices
make room integration easy, thanks to ready compatibility with
Crestron, AMX and Extron systems. HDMI and MHL and wireless
connectivity – with retail HDMI dongle – add to the versatility and
practicality.
Outstanding sound quality is a key factor in quickly engaging
audiences and holding their attention in meetings and
presentations. The two powerful 12W speakers in these models
enhance video content with high presence and exceptional clarity.
The speakers are embedded to save time on set-up.
| General | |
| Audio | Two 12 W internal speakers |
| Interface (Input) | Video: HDMI, Composite, S-video |
| Audio: L/R RCA, 3.5mm ST mini jack | |
| Interface (Output) | Video: D-sub15 (Monitor out) |
| Audio: 3.5mm ST mini jack | |
| Projection System | Single chip DLP |
| Resolution | XGA (1024×768) (PJ X5770) |
| WXGA (1,280×800) (PJ WX5770) | |
| Brightness | 5,000/5,100 lumens (PJ X5770 / PJ WX5770) |
| Colour Reproducibility | 1,073,000,000 colours |
| Contrast Ratio | 2,000:1 |
| Projection Screen Size | |
| Projection Distance | 130/130 cm to 1120/950 cm (PJ X5770/PJ WX5770) |
| (from rear of unit to projection surface) | |
| Lamp | Mercury lamp |
| Lamp Life | Standard: 3,000 hours |
| Eco mode: 4,000 hours | |
| Zoom Ratio | x1.6 (manual) |
| Primary Features | Mute (Blank) |
| Freeze | |
| Re-size (Magnify) | |
| Password protection | |
| NCE (Natural Color Enhancer) | |
| Eco mode | |
| 3D ready | |
| Image Eco | |
| Screen capture | |
| Wall color | |
| Auto power Off | |
| Direct power On | |
| Kensington lock | |
| Security bar | |
| High altitude | |
| Dimensions (W x D x H) | 369 x 294 x 132 mm |
| Weight | 4.7 kg |
| 4 Corner Adjustment | Yes |
| Lens | Built-in |
| Control | Mini USB |
| RJ45 (LAN) | |
| RS-232C (PC-control) | |
| USB type A: 1 for power supply (5V@1A) | |
| 3D | DLP link |
| Blu-ray 3D | |
| Keystone | Vertical: Yes ( /- 30 degree) |
| Horizontal: Yes ( /- 30 degree) | |
| Control System | PJ Link |
| Crestron | |
| AMX Discovery | |
| Extron | |
| Ecology | |
| Power Consumption (max) | at 110 V: 503 W |
| at 220 V: 479 W | |
| Power Consumption (ECOmax) | at 110v: 399 W |
| at 220v: 384 W | |
| Operating Temperature | 0°C – 40°C |
| Operating Humidity | 80% |
| Accessories | Power cable, Quick Guide, VGA cable, CD-ROM and manual, Remote control with batteries, Carrying case, Lens cap |
