ViewSonic LS550W 2000 ANSI Lumens WXGA Short Throw LED Business/Education...

Description

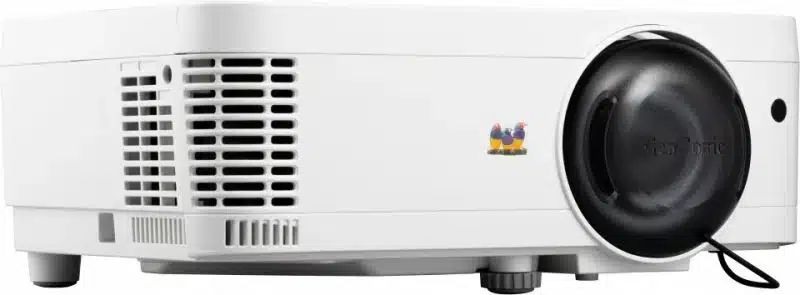

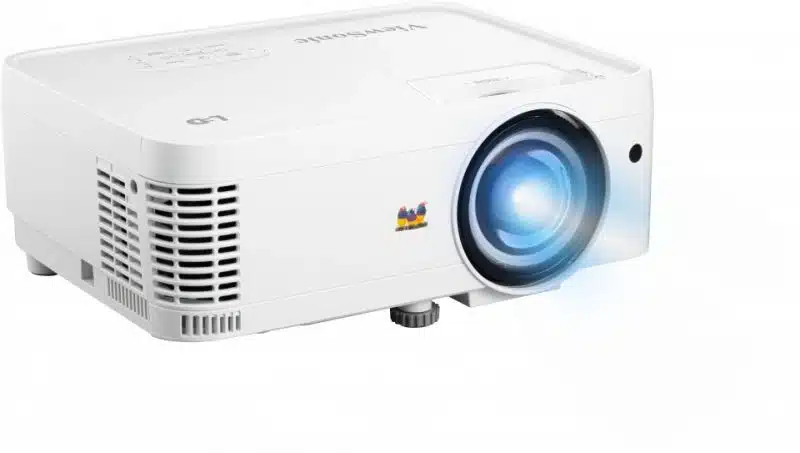

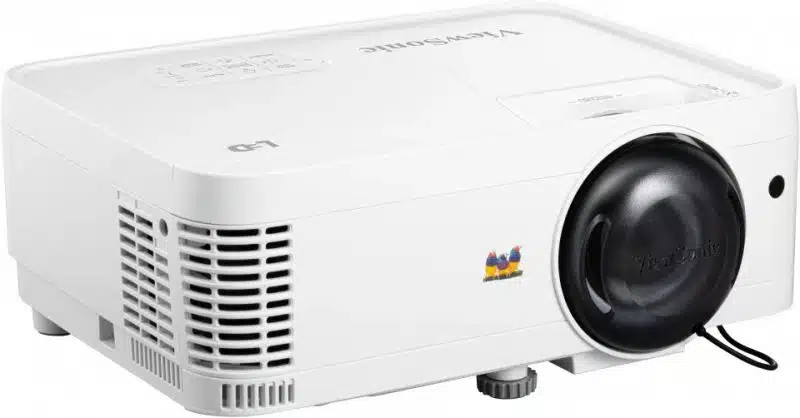

ViewSonic LS550W 2000 ANSI Lumens WXGA Short Throw LED Business/Education Projector

• 3rd generation LED technology with 30,000 hour lifespan
• 2,000 ANSI Lumens offering bright images in any environment
• Instant power on/off for efficient use
• 0.49 short throw ratio for minimal space consumption
• 360° projection and H/V keystone for easy installation
• Comprehensive LAN control for efficient management

OVERVIEW

The LS550W is ViewSonic’s first lamp-free high brightness WXGA short throw projector for business and education.

Built with advanced 3rd generation LED technology, the LS550W provides 2,000 ANSI Lumens

eliminates frequent lamp replacement and toxic mercury for a safer

greener environment, offering a phenomenal lifespan of 30,000 hours, less power consumption, true-to-life colors with 125% Rec.709,

instant power on/off capability for efficient use. The 0.49 short throw lens provides a 100” screen from just 1.06m away, delivering exceptional space efficiency

freeing presenters from blinding lights. Installation and setup are hassle-free with 360° tilt angle projection, H/V Keystone,

4 corner adjustment capabilities while its comprehensive LAN control eases multiple device management and is compatible

with Crestron, AMX, Extron, PJ Link, ATEN, and ViewSonic’s vController.

Advanced 3rd LED Technology

The latest 3rd generation LED technology eliminates toxic mercury and the cost

effort of frequent lamp replacement, offering consistently impressive brightness for up to 30,000 hours.

Lamp Free, Mercury Free, Maintenance Free

Higher Power Efficiency

Adopting ams OSRAM’s Ostar Projection Power LED technology, the LS550W saves nearly 50% more energy than competing lamp-based projectors.

Energy-Saving

Cinema SuperColor ™ Technology

Impress any audience with ViewSonic’s exclusive Cinema SuperColor ™ Technology, covering 125% Rec.709 wide color gamut for a rich, true-to-life color experience.

Efficient Instant Power On/Off

Eliminate waiting times before and after use with instant power on/off capability, delivering immediate full brightness for timely starts with no cooling period required.

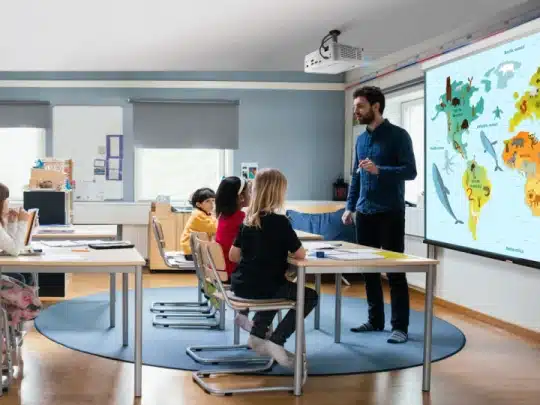

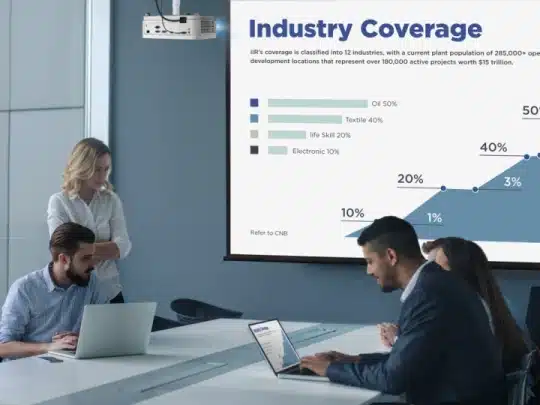

Enhanced Brightness for Business/Education Environments

With the latest LED technology, the LS550W achieves a major brightness breakthrough to 2,000 ANSI Lumens, ensuring bright and detailed images in dim or lit environments.

2,000 ANSI Lumens

Big Screen Fits for Small Spaces

The LS550W’s 0.49 short throw projection gives you 100” from only 1.06m distance when positioning the projector.

Presenters will stay clear of the projector beam, eliminating eye glare and shadows on the projection screen.

Short Throw

Effortless Image Adjustment

Horizontal and Vertical Keystone correction along with 4 corner adjustment features eliminate crooked or distorted images for a perfectly proportioned picture every time.

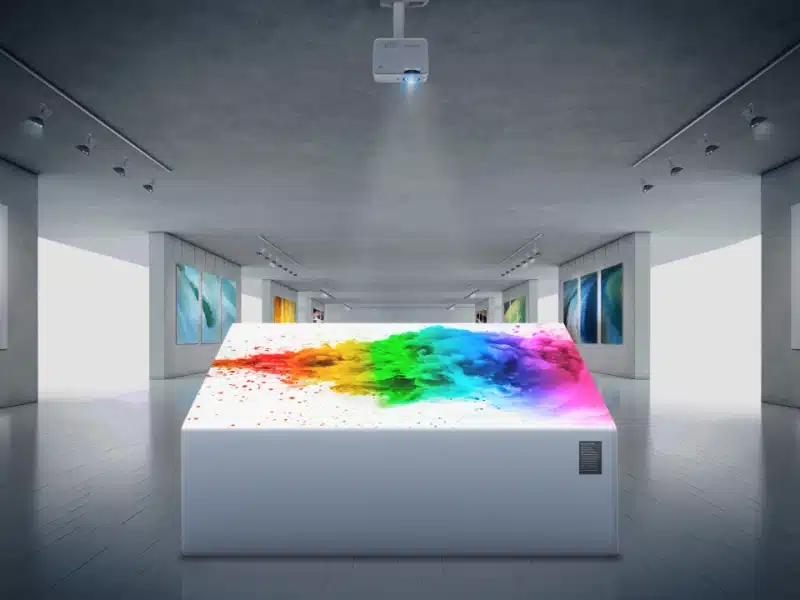

360° Projection for Versatile Application

The projector can freely rotate at any angle vertically to aid with creative applications, allowing projection onto ceilings, walls, or angled signage.

Centralized Control for Management Efficiency

This projector is compatible with Crestron, AMX, PJ Link, ATEN and Extron systems and comes equipped with ViewSonic vController, an easy-to-use network management tool.

Comprehensive LAN Control

A Simpler Way to Update Projector Software

Skip trips to the service center by keeping software up to date easily and onsite via USB cable connection with your laptop.
Learn

*The latest projector software update can be found in the download section at the bottom of the page when available.

USB Type A Power Supply

The built-in 5V/2A USB output conveniently delivers power to HDMI wireless dongles, eliminating the need for separate power adapters when streaming multimedia content.

Sealed Optical Engine with IP5X

Maintain crystal-clear image quality and product longevity with an advanced sealed optical engine that prevents dust from entering and affecting the thermal system.

IP5X

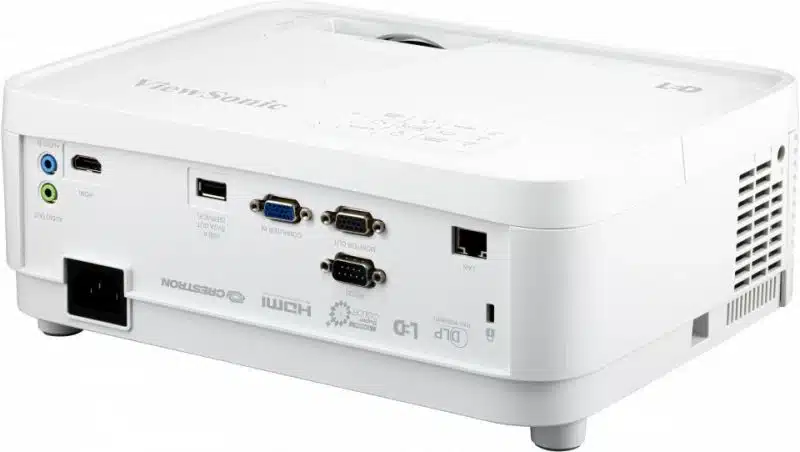

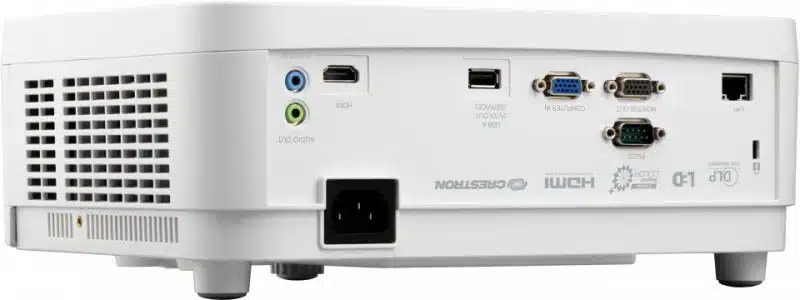

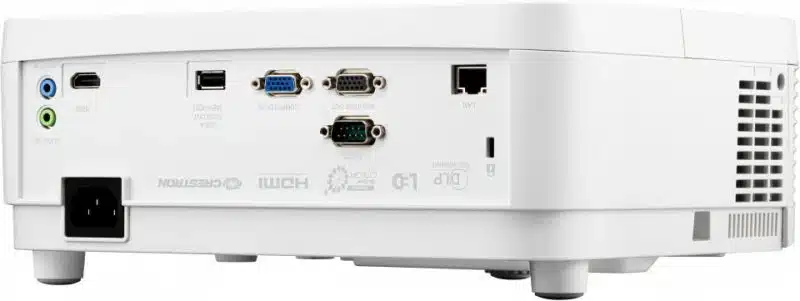

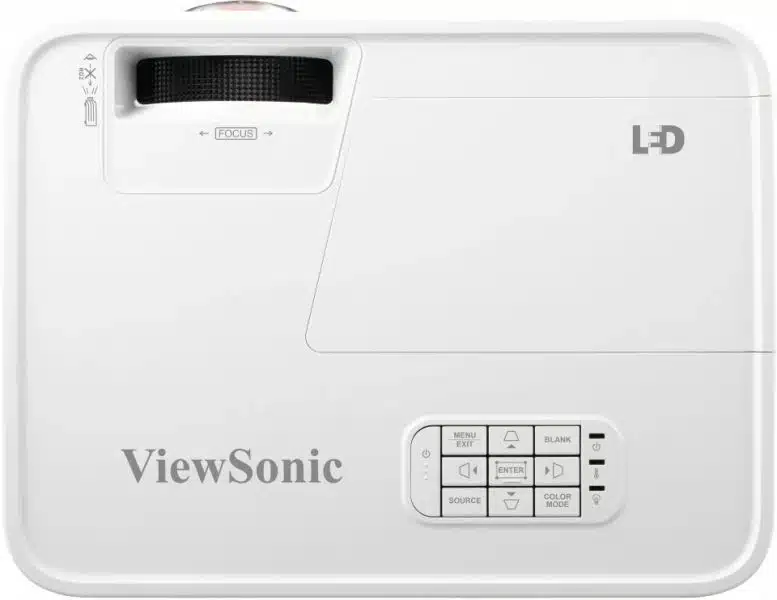

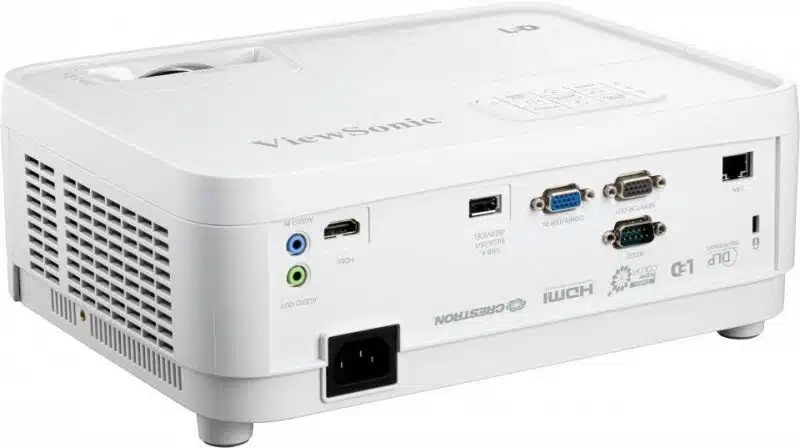

Dimension & I/O Ports

1. LED Indicator
2. Keypad
3. Power Button
4. Focus Ring
5. Lens
6. Front IR
7. Audio In
8. Audio Out
9. HDMI
10. USB Type A(5V/2A, Service)
11. Computer In
12. Monitor Out
13. LAN
14. RS-232

Specification	Details
Projection System	0.65” WXGA
Native Resolution	1280×800
Brightness	2000 (ANSI Lumens)
Contrast Ratio	3000000:1
Display Color	1.07 Billion Colors
Light Source Type	LED
Light Source Life (hours) with Normal Mode	30000
Lens	F=2.6, f=6.9mm
Projection Offset	110% /-5%
Throw Ratio	0.49
Optical Zoom	Fixed
Digital Zoom	0.8x-2.0x
Image Size	60″-300″
Throw Distance	0.63m-1.58m (87″@0.92m)
Keystone	H: /-40° , V: 36°/-40°
Audible Noise (Normal)	30dB
Audible Noise (Eco)	26dB
Input Lag	16ms
Resolution Support	VGA(640 x 480) to Full HD (1920 x 1080)
HDTV Compatibility	480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Horizontal Frequency	15K-102KHz
Vertical Scan Rate	23-120Hz
Interactive Camera	Optional (vTouch-10s)
Input	Computer in (share with component): 1 HDMI: 1 (HDMI 1.4/ HDCP 1.4) Audio-in (3.5mm): 1
Output	Monitor out: 1 Audio-out (3.5mm): 1 Speaker: 2W USB Type A (Power): 1 (5V/2A)
Control	RS232 (DB 9-pin male): 1 RJ45 (LAN control): 1 USB Type A (Services): 1 (share with USB A Output)
Others	Power Supply Voltage: 100-240V /- 10%, 50/60Hz (AC in) Power Consumption: Normal: 157W Standby: <0.5W Operating Temperature: 0~40℃ OSD Language: English, French, Spanish, Thai, Korean, German, Italian, Russian, Swedish, Dutch, Polish, Czech, T-Chinese, S-Chinese, Japanese, Turkish, Portuguese, Finnish, Indonesian, India, Arabic, Vietnamese, Greek, Hungarian. Total 24 languages<br>User Guide Language: English, S-Chinese, T-Chinese, Indonesian, Finish, French, German, Italian, Japanese, Korean, Polish, Portuguese, Russian, Spanish, Swedish, Turkish, Arabic, Czech, Thai, Vietnamese, total 20 languages

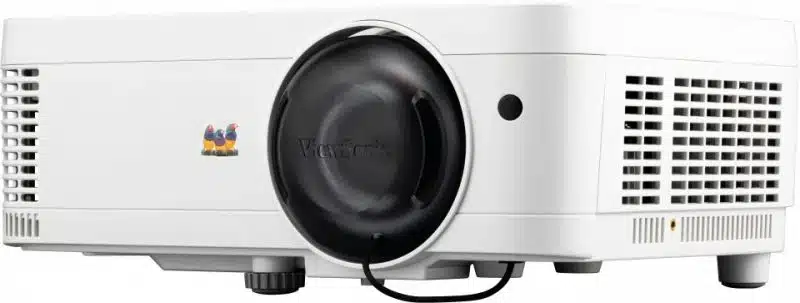

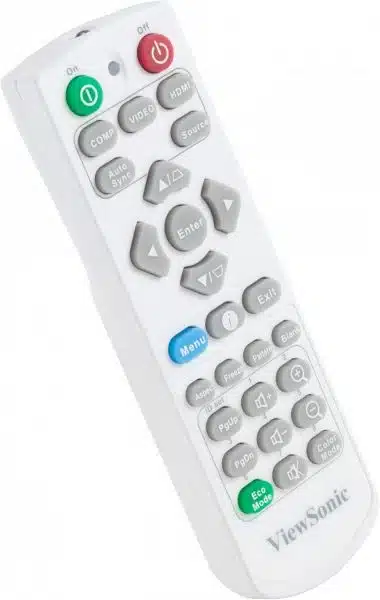

Standard Accessory	Power Cord: 1 VGA Cable: 1 Remote Control: 1 QSG: Yes Lens Cover: Yes Warranty Card: Yes (CN Only)
Optional Accessory	Wall/Ceiling Mount: PJ-WMK-305, PJ-WMK-007 Carry Bag: PJ-CASE-008
