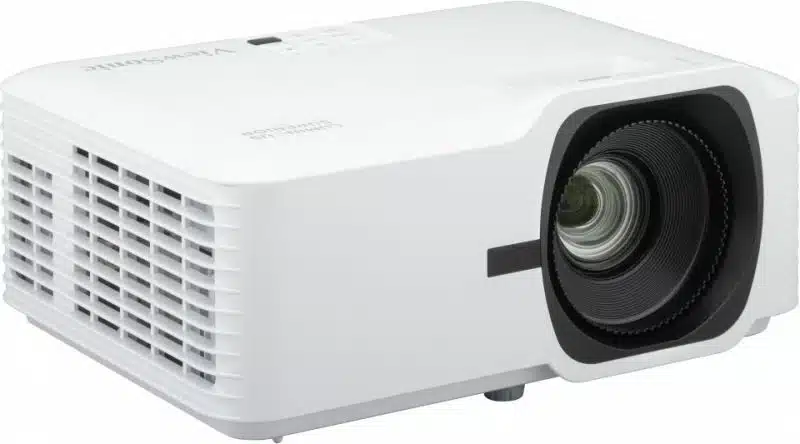

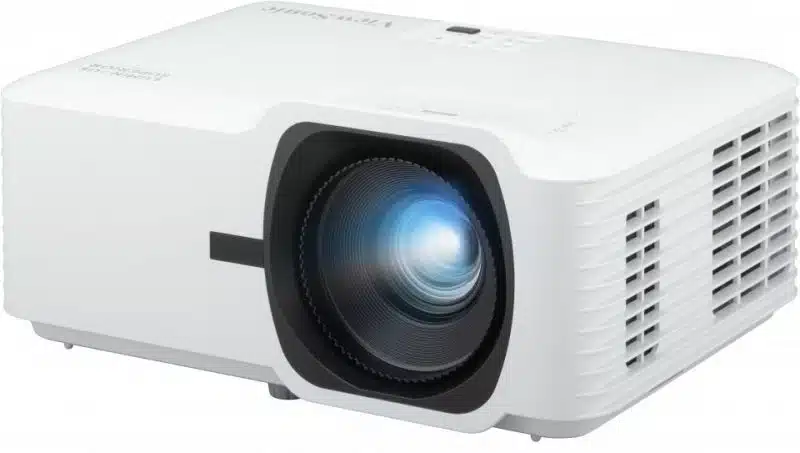

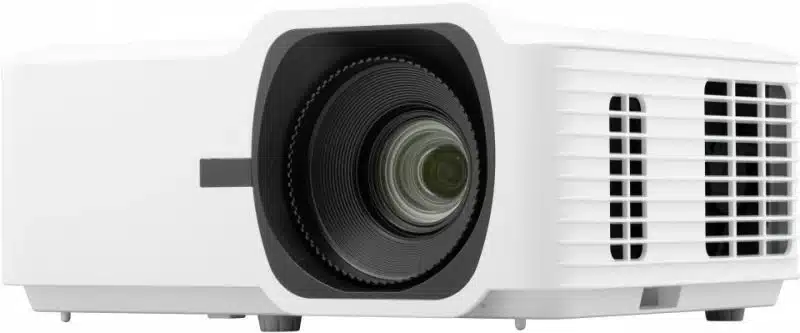

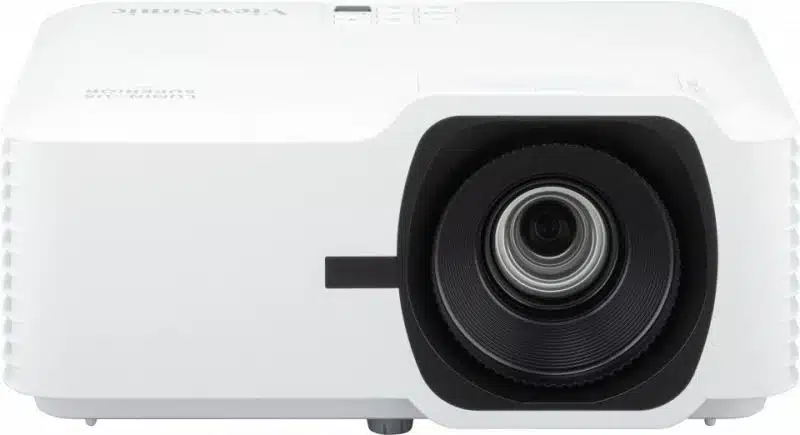

ViewSonic LS740W 5000 ANSI Lumens WXGA Laser Installation Projector

Description

ViewSonic LS740W 5000 ANSI Lumens WXGA Laser Installation Projector



• 3rd generation laser phosphor technology with up to a 30,000-hour lifespan
• 5,000 ANSI Lumens offering bright images in any environment
• Up to 300″ ultra large screen with lower cost-per-inch
• Compact size and light weight reducing cost of transportation and installation
• Installation flexibility: 1.3x optical zoom, H/V keystone, 360° projection, and portrait mode

OVERVIEW

The LS740W belongs to ViewSonic’s Luminous Superior series, a lamp-free high-brightness projector line up designed for commercial and educational spaces.

With its adoption of the 3rd generation laser phosphor technology, it delivers 5,000 ANSI Lumens for up to 30,000 hours, ensuring bright

vivid images without lamp replacement. The lamp-free design offers an eco-friendly and cost-effective solution

while the projector‘s light weight and compact design reduces transportation costs.

With up to 300“projection and high native contrast, it is well-suited for boardrooms, lecture halls, and public spaces.

This projector features a 1.3x optical zoom, H/V keystone, 4 corner adjustment, 360° projection, and a portrait mode for easy setup and versatile applications.

Bright, Compact, Durable

The LS740W incorporates advanced 3rd-gen laser phosphor technology, enhancing brightness by 20%

achieving better luminous efficiency, all while being 32% more compact and more accessible than the previous generation.

Its lamp-free light source offers instant power on/off and a lifespan of up to 30,000 hours without maintenance, ensuring consistent image quality even during extended periods of use.

3rd Generation Laser Phosphor Technology

Bright Images for Large Venues

Delivering 5,000 ANSI Lumens, the LS740W provides vibrant and clear projection in all lighting conditions for auditoriums, boardrooms, public venues, and other expansive spaces.

5,000 ANSI Lumens

Unmatched Contrasts, Enhanced Visibility

The projector’s high native contrast ratio, achieved through its Texas Instruments 0.65″ DMD chip, enables deeper blacks and brighter whites. As a result, it delivers more visual depth, clearer images, and enhanced legibility.

High Native Contrast Ratio

Ultra-large Screen with Lower Cost-per-inch

This easy-to-install projector allows for an image size of up to 300”, offering a lower cost-per-inch compared to other types of commercial displays.​

Up to 300”

Easy and Cost-effective Installation

The LS740W is 35% lighter in weight and 35% smaller in size compared to its predecessor and even most competing projectors in the market, greatly reducing the cost of transportation and increasing the ease of installation.​

Lighter Weight, Compact Size

Save on Costs and Energy

With its advanced lamp-free light source, the LS740W offers a highly energy-efficient and cost-saving display solution by consuming up to 51% less power than competing projectors.

Less Power Consumption

Enhanced Installation Flexibility

Equipped with a 1.3x optical zoom, the projector allows users to choose the most ideal set-up location within a range, getting the desired image size without needing to change the existing interior design. ​

1.3x Optical Zoom

Get ​​Perfectly-shaped Images Effortlessly

Horizontal and Vertical Keystone correction along with 4 corner adjustment features eliminate crooked or distorted images for a perfectly proportioned picture every time.

H/V Keystone Correction, 4 Corner Adjustment

Versatile Creative Application​s

The projector can rotate vertically at any angle, enabling projection onto ceilings, walls, or floors, and its portrait mode further expands

its capabilities for projection mapping, staging, and creative advertising applications.

360° Projection, 90° Portrait Mode

Present the Best with Vibrant Colors

Impress any audience with ViewSonic’s exclusive color technology, elevating your presentation witha true-to-life color experience.

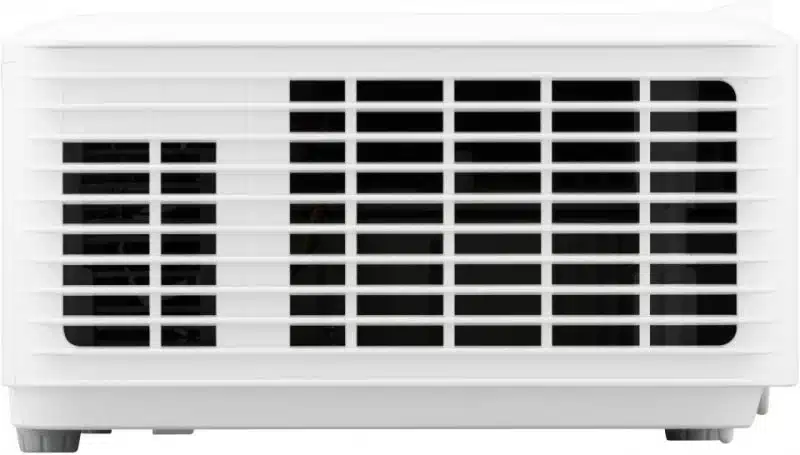

Non-stop 24/7 Operation​​

The projector’s advanced cooling design enables 24/7 operation without any degradation in image quality or performance. This makes it the go-to solution for applications that require continuous projection in retail stores, malls, museums, airports, and other public spaces.

A Simpler Way to Update Projector Software​

Skip trips to the service center by keeping software up to date easily via USB cable connection with your own laptop.
Learn more: https://youtu.be/irlhJLpDHas
*The latest projector software update can be found in the download section at the bottom of the page when available.

Directly Power Wireless HDMI Dongle

The built-in 5V/1.5A USB-A output conveniently delivers power to a wireless HDMI dongle, eliminating the need for separate power adapters when streaming multimedia content.

USB-A Power Supply

Enhanced Dust Resistance

Maintain crystal-clear image quality and product longevity with an advanced IP6X sealed engine design that prevents dust from entering and affecting internal components.​

IP6X

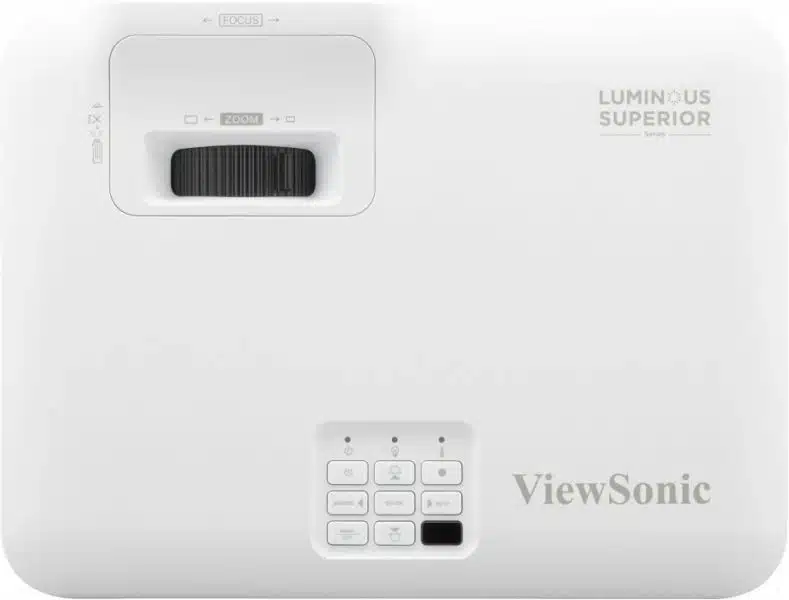

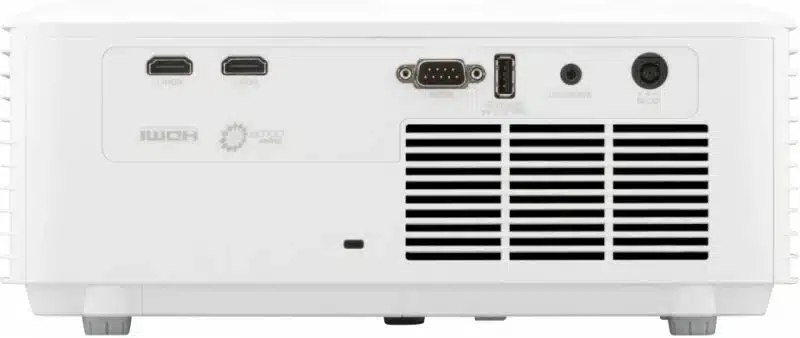

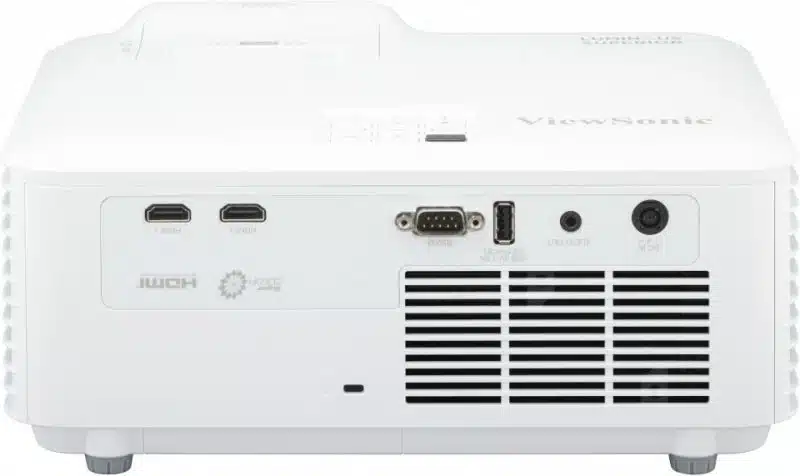

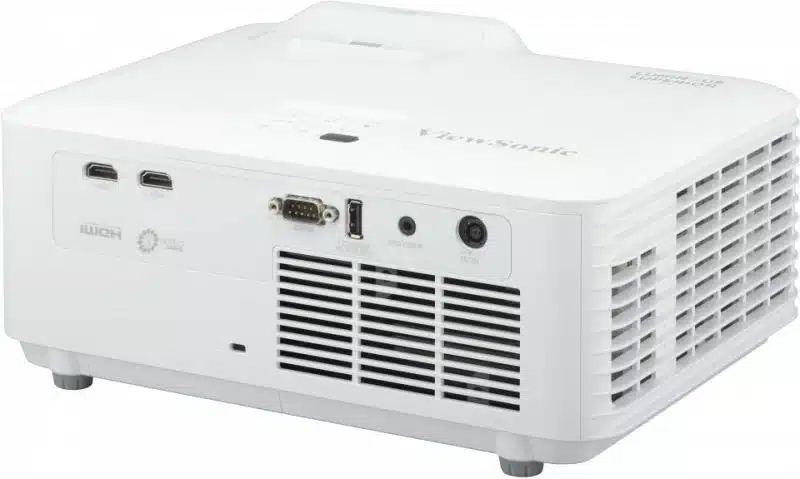

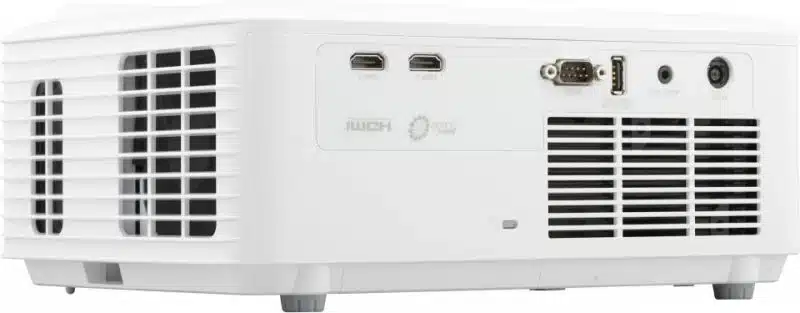

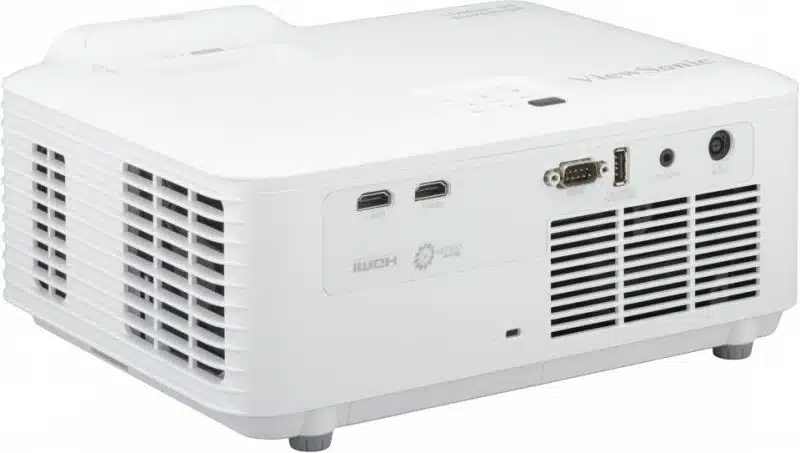

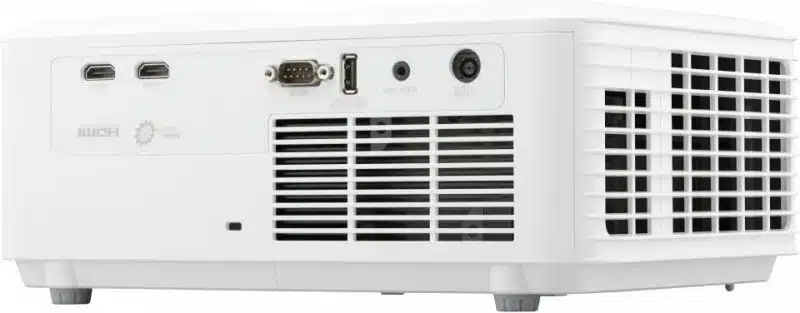

Dimensions & I/O Ports

1. Front IR
2. Lens
3. Focus Ring
4. HDMI x2
5. RS232
6. USB-A (5V/1.5A, Service)
7. Audio Out
8. DC In
9. Zoom Ring
10. Power Button
11. Keypad
12. Top IR

Specification	Details
Projection System	0.65″ WXGA
Native Resolution	1280×800
Brightness	5000 (ANSI Lumens)
Brightness (Center Lumens)	6000
Contrast Ratio	3000000:1
Display Color	1.07 Billion Colors
Light Source Type	Laser Phosphor
Light Source Life (hours) with Normal Mode	20000
Light Source Life (hours) with SuperEco Mode	30000 (Eco)
Lens	F=2.43-2.78, f=16.90-21.61mm
Projection Offset	124% /-10%
Throw Ratio	1.18-1.54
Optical Zoom	1.3X
Digital Zoom	0.8x-2.0x
Image Size	30″-300″
Throw Distance	0.77-9.98m (100″@2.54m)
Keystone	H: /-30° , V: /-30°
Audible Noise (Normal)	30dB
Audible Noise (Eco)	24dB
Input Lag	49.5ms
Resolution Support	VGA(640 x 480) to WUXGA RB(1920 x 1200)
HDTV Compatibility	480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Horizontal Frequency	15K-102KHz
Vertical Scan Rate	24-120Hz
Input	HDMI: 2 (HDMI 1.4/ HDCP 1.4)
Output	Audio-out (3.5mm): 1 Speaker: 15W USB Type A (Power): 1 (5V/1.5A)
Control	RS232 (DB 9-pin male): 1 USB Type A (Services): 1 (share with USB A Output)
Others	Power Supply Voltage: Power adaptor: Input: 100~240V Output: 19.5VDC / 11.79A Power Consumption: Normal: 210W Standby: <0.5W Operating Temperature: 0~40℃ Carton: Brown Net Weight: 3.00kg Gross Weight: 4.70kg Dimensions (WxDxH) with Adjustment Foot: 286x216x129mm Packing Dimensions: 400x280x155mm OSD Language: English, French, Spanish, Thai, Korean, German, Italian, Russian, Swedish, Dutch, Polish, Czech, T-Chinese, S-Chinese,Japanese, Turkish, Portuguese, Finnish, Indonesian, Arabic, Vietnamese, Hungarian, Norsk, total 23 languages User Guide Language: English, S-Chinese, T-Chinese, Indonesian, Finish, French, German, Italian, Japanese, Korean, Polish, Portuguese, Russian, Spanish, Swedish, Turkish, Arabic, Czech, Thai, Vietnamese, total 20 languages

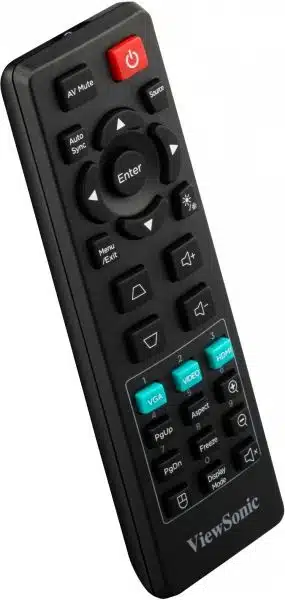

Standard Accessory	Power Cord: 1 Remote Control: 1 QSG: Yes Warranty Card: Yes (CN Only)
Optional Accessory	Wall/Ceiling Mount: PJ-WMK-007 Carry Bag: PJ-CASE-008
