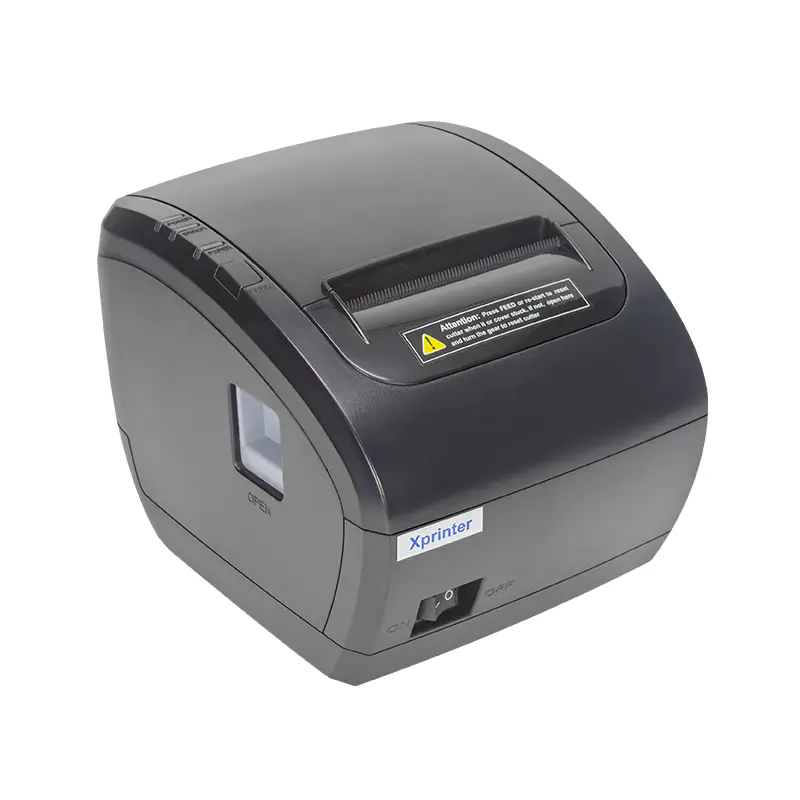

XP-Q838L 80mm Thermal Receipt Printer

Description

XP-Q838L 80mm Thermal Receipt Printer

Model & Certification

• Model: XP‑Q838L

• Material: Durable ABS housing

• Certifications: CCC, CE, FCC, RoHS, KC, SAA, BIS, BSMI

Printing Features

• Print Method: Direct thermal (no ink required)

• Paper Width: 79.5 ± 0.5 mm (supports both 58 mm and 80 mm roll widths)

• Print Width: 72 mm

• Column Capacity: 576 dots/line or 512 dots/line

• Printing Speed: Up to 230 mm/s, 260 mm/s, and even 300 mm/s options

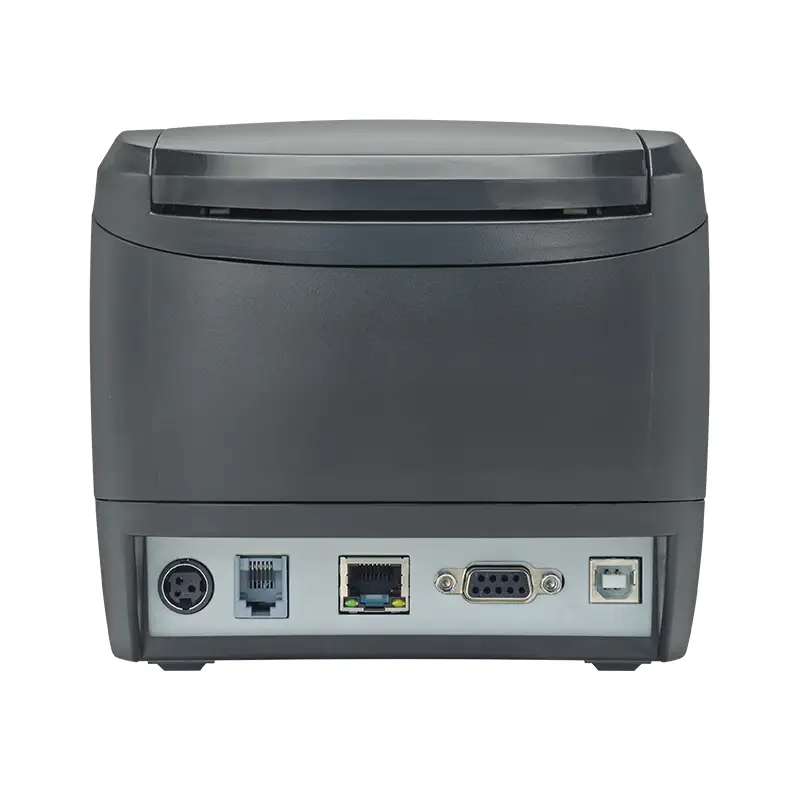

Interfaces

• Standard Options: USB, LAN, USB Serial, USB LAN

• Optional Upgrades: USB Wi‑Fi, USB Bluetooth, or full combinations like USB Serial LAN, USB Serial LAN Wi‑Fi/Bluetooth

Printing Layout & Fonts

• Line Spacing: 3.75 mm, adjustable via command sets

• Column Layout (80 mm paper):

  • Font A: 42 or 48 columns

  • Font B: 56 or 64 columns

  • Simplified/Traditional Chinese: 21 or 24 columns

• Character Sizes:

  • ANK: Font A – 1.5 × 3.0 mm (12 × 24 dots); Font B – 1.1 × 2.1 mm (9 × 17 dots)

  • Chinese: 3.0 × 3.0 mm (24 × 24 dots)

Supported Languages & Barcodes

• Character Sets: Wide support including PC437, Katakana, PC850–PC863, Greek, Hebrew, Arabic, Cyrillic variants, Latin2, etc.

• 1D Barcodes: UPC‑A/E, EAN13/8, CODE39, ITF, CODABAR, CODE93, CODE128, etc.

• 2D Barcodes: QR Code and PDF417

Memory & Buffers

• Input Buffer: 96 KB (USB/LAN/USB Serial), or 128 KB (USB LAN)

• NV Flash: 256 KB

Power & Cash Drawer Support

• Power Input: AC 100–240 V, 50–60 Hz adapter supplying DC 24 V / 2.5 A to printer and DC 24 V / 1 A for cash drawer

Physical & Reliability Specs

• Weight: Approximately 1.0 kg

• Dimensions (D × W × H): 193.8 × 144.2 × 133 mm

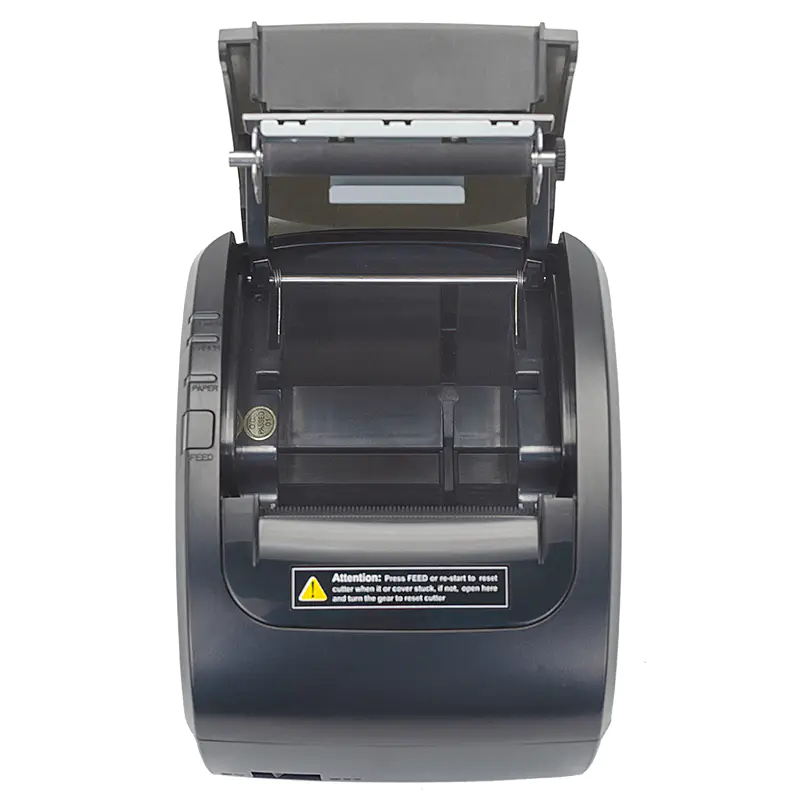

• Auto Cutter: Partial cut included

  • Cutter Life: Approximately 1.5 million cuts

• Print Head Life: Up to 150 km of printed material

Software Compatibility

• Emulation: ESC/POS standard

• Supported Drivers: Windows, JPOS, Linux, OPOS, Android, Mac

• Utilities & SDKs: Windows & Linux test utility; SDK available for iOS, Android, and Windows

Environmental Conditions

• Operating Environment: 0–45 °C, humidity 10–80% RH

• Storage Environment: –10–60 °C, humidity 10–90% RH
