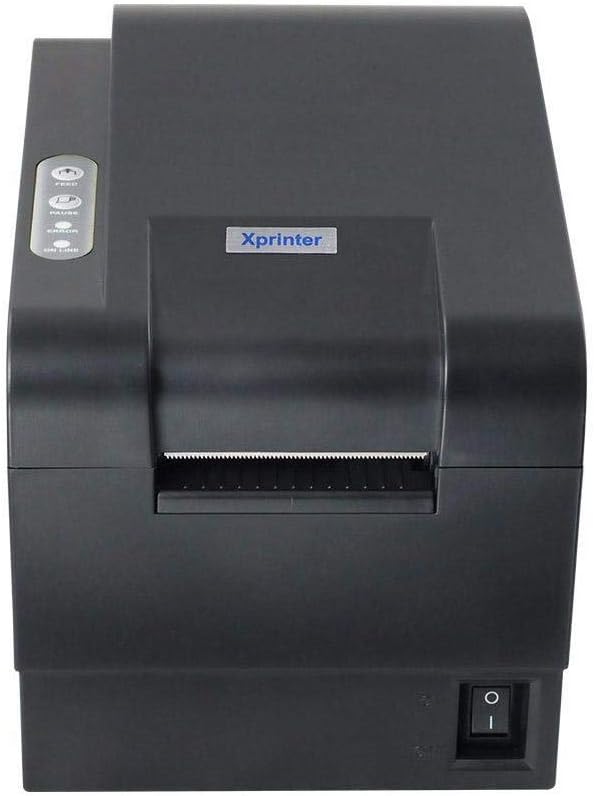

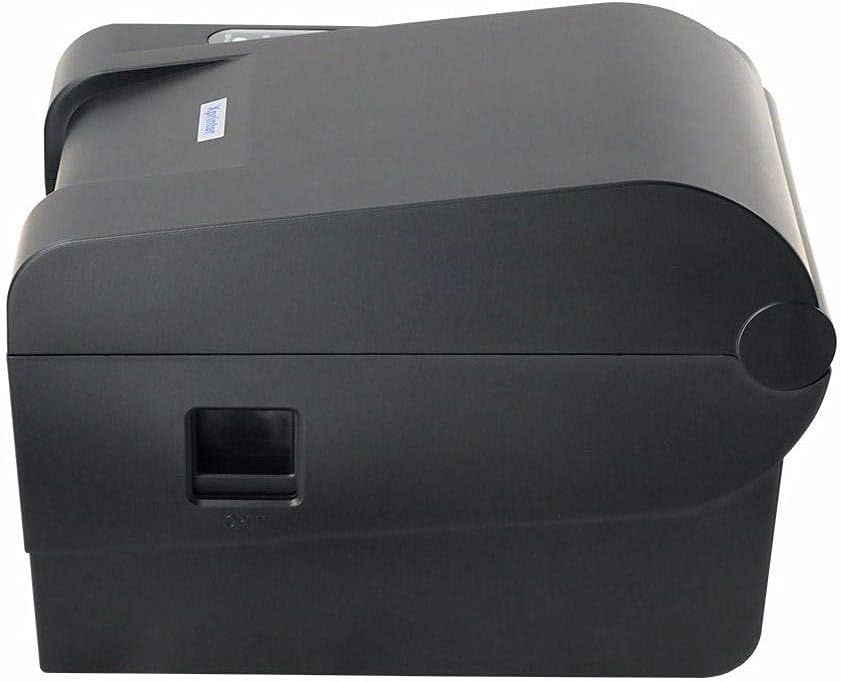

Xprinter XP-235B Label Printer

Overview

Key Features

1. Direct Thermal Printing:

   • Utilizes direct thermal printing technology, eliminating the need for ink or toner. This technology is cost-effective and requires minimal maintenance, making it ideal for businesses focused on efficiency.

2. Compact Design:

   • The XP-235B features a compact footprint, allowing it to fit comfortably in limited workspace environments, such as retail counters or small offices.

3. High-Speed Printing:

   • Capable of printing at speeds up to 127 mm/s, enabling quick label production to keep up with business demands.

4. Print Resolution:

   • Offers a resolution of 203 dpi, ensuring clear and precise printing for text, barcodes, and graphics.

5. Wide Label Compatibility:

   • Supports various label types, including continuous, die-cut, black mark, and fan-fold labels, with a maximum print width of 80 mm.

6. Connectivity Options:

   • Equipped with USB and Serial (RS-232) interfaces for flexible connectivity with different systems and devices.

7. Easy Paper Loading:

   • Features an easy-to-use paper loading mechanism, reducing downtime and simplifying the process of changing label rolls.

8. User-Friendly Operation:

   • Simple controls and software make setup and operation straightforward, even for users with limited technical expertise.

Product Specifications

Printing Specifications

• Printing Method:

  • Direct thermal printing.

• Resolution:

  • 203 dpi for high-quality label output.

• Printing Speed:

  • Up to 127 mm/s for efficient label production.

• Maximum Print Width:

  • 80 mm, suitable for a variety of label sizes.

• Maximum Print Length:

  • Up to 1778 mm, allowing for longer labels or tags.

Media Specifications

• Label Types:

  • Compatible with continuous, die-cut, black mark, and fan-fold labels.

• Media Width:

  • Supports media widths ranging from 20 mm to 82 mm.

• Media Roll Diameter:

  • Maximum diameter of 100 mm for extended printing without frequent roll changes.

Connectivity

• Interfaces:

  • USB and Serial (RS-232), providing versatile connection options.

• Driver Support:

  • Compatible with Windows, Linux, and MacOS operating systems, ensuring easy integration with various systems.

Environmental Specifications

• Operating Temperature:

  • 5°C to 45°C, suitable for standard indoor environments.

• Storage Temperature:

  • -40°C to 60°C, allowing for safe storage in varying conditions.

• Operating Humidity:

  • 25% to 85% non-condensing, accommodating different humidity levels.

Physical Specifications

• Dimensions:

  • 170 mm x 130 mm x 110 mm (L x W x H), making it compact and easy to fit in various workspaces.

• Weight:

  • Approximately 0.85 kg, lightweight for easy transportation and setup.

Software and Emulation

• Emulations Supported:

  • Compatible with EPL and ZPL emulations, making it versatile for different printing requirements.

• Software Utilities:

  • Includes label design software and drivers for easy setup and customization.

Benefits

• Cost-Effective Operation:

  • Direct thermal printing reduces costs by eliminating the need for ink or toner, resulting in lower operational expenses.

• High-Speed Performance:

  • Fast printing speeds enhance productivity, making it ideal for high-volume label printing environments.

• Versatile Connectivity:

  • Multiple interface options allow for easy integration with various devices and systems.

• Compact and Durable:

  • Compact design fits well in tight spaces, and its durable construction ensures reliable performance over time.

• User-Friendly Design:

  • Simple setup and operation make it accessible for users with different levels of technical expertise.

Typical Use Cases

• Retail:

  • Ideal for printing price tags, shelf labels, and product labels, supporting efficient inventory management.

• Logistics and Shipping:

  • Suitable for printing shipping labels, packing slips, and barcodes, enhancing logistics operations.

• Warehousing:

  • Useful for labeling inventory, tracking goods, and managing stock levels.

• Healthcare:

  • Can be used for labeling patient records, samples, and medications, ensuring accurate tracking and management.

Setup and Operation

1. Connecting the Printer:

   • Connect the printer to your computer using the USB or Serial cable, depending on your setup.

2. Installing Drivers:

   • Install the necessary drivers from the included CD or download them from the Xprinter website. Follow the installation instructions for seamless integration with your system.

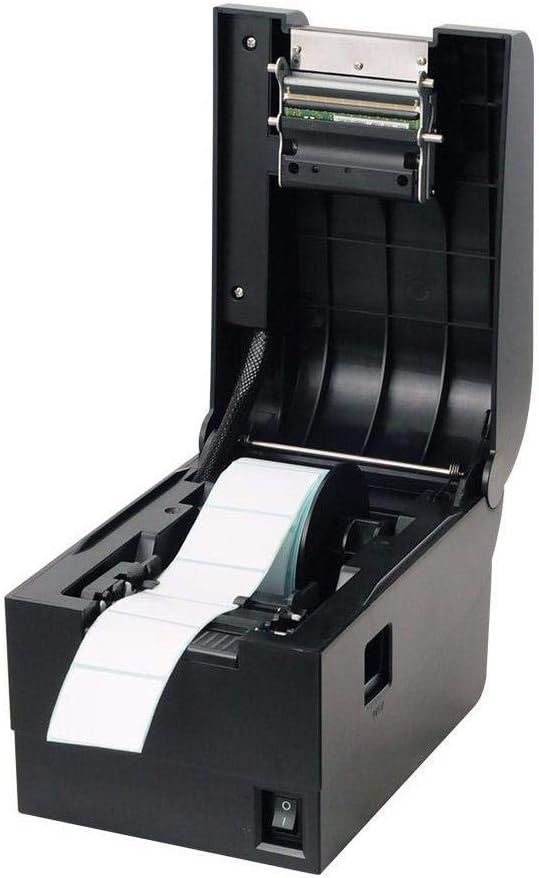

3. Loading Labels:

   • Open the printer cover, insert the label roll, and close the cover. Use the easy paper loading mechanism to ensure proper alignment and feeding.

4. Configuring Settings:

   • Use the provided software utilities to adjust settings such as print density, label size, and connectivity options.

5. Regular Maintenance:

   • Clean the print head and rollers periodically to maintain optimal performance and extend the printer’s lifespan.
