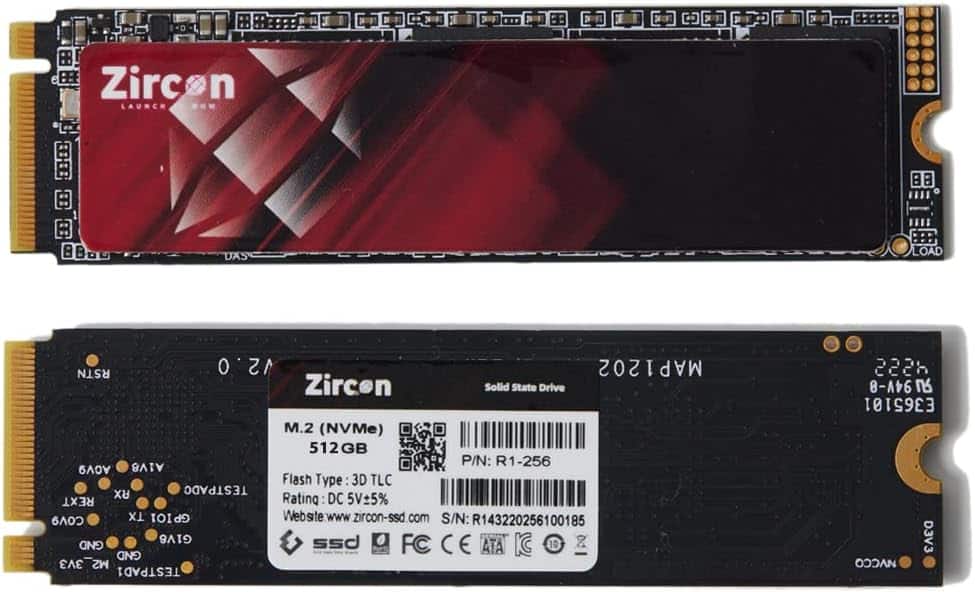

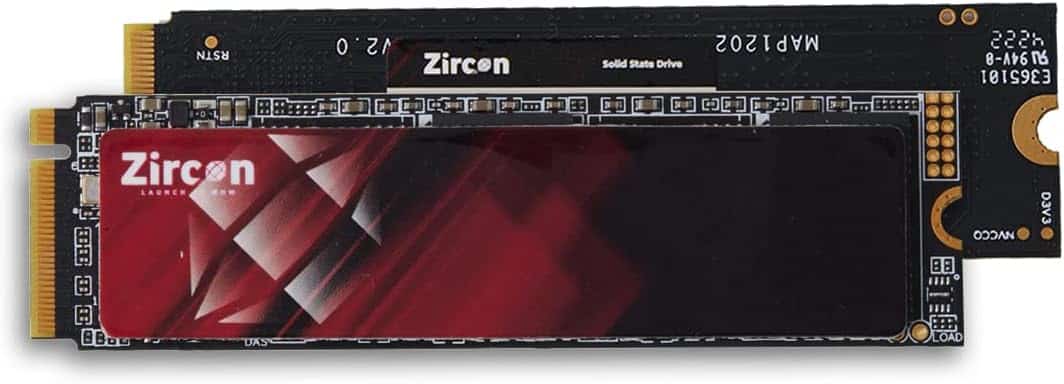

The Zircon R1 Series is a high-performance M.2 2280 SSD launched in February 2023, aimed at consumer markets. The drive is available in capacities ranging from 256 GB to 1 TB, with the 512 GB variant being a popular choice. It uses a PCIe 3.0 x4 interface and adheres to the NVMe 1.3 protocol, ensuring fast data transfer speeds. The SSD is built with 112-layer TLC NAND flash from Kioxia, managed by the MaxioTech MAP1202A-F1C Cougar controller. Despite lacking a DRAM cache, the drive employs a pseudo-SLC cache to enhance write speeds.
| General | |
| Capacity | 1 TB |
| Warranty | 3 years |
| Endurance | 768 TBW |
| Form Factor | M.2 2280 (Single-Sided) |
| Interface | PCIe 3.0 x4 |
| Protocol | NVMe 1.3 |
| Power Draw | Unknown |
| Market | Consumer |
| Controller | |
| Manufacturer | MaxioTech |
| Model | MAP1202A-F1C Cougar |
| Architecture | ARM Cortex-R5 |
| Core Count | Dual-Core |
| Foundry | TSMC |
| Process | 22 nm |
| Flash Channels | 4 @ 1,600 MT/s |
| Chip Enables | 4 |
| Controller Features | HMB (enabled) |
| NAND Flash | |
| Manufacturer | Kioxia |
| Model | BiCS5 |
| Type | TLC |
| Technology | 112-layer |
| Speed | 1200 MT/s |
| Capacity | 2 chips @ 2 Tbit |
| Toggle | 4 |
| Topology | Charge Trap |
| Dies per Chip | 2 dies @ 1 Tbit |
| Planes per Die | 2 |
| Word Lines | 128 per NAND String |
| Vertical Efficiency | 87.5% |
| Read Time (tR) | 56 µs |
| Endurance (P/E Cycles) | 3000 P/E Cycles (100000 in SLC Mode) |
| Page Size | 16 KB |
| Block Size | 1344 Pages |
| DRAM Cache | None |
| Host-Memory-Buffer (HMB) | 8 MB |
| Performance | |
| Sequential Read | 3,400 MB/s |
| Sequential Write | 3,100 MB/s |
| Random Read | 330,000 IOPS |
| Random Write | 250,000 IOPS |
| Endurance | |
| Endurance Rating | 768 TBW |
| Warranty | 3 Years |
| MTBF | 1.0 Million Hours |
| Drive Writes Per Day | 1.4 |
| Additional Features | |
| SLC Write Cache | Yes |
| TRIM | Yes |
| SMART | Yes |
| Power Loss Protection | No |
| Encryption | Unknown |
| RGB Lighting | No |
| PS5 Compatible | No |
