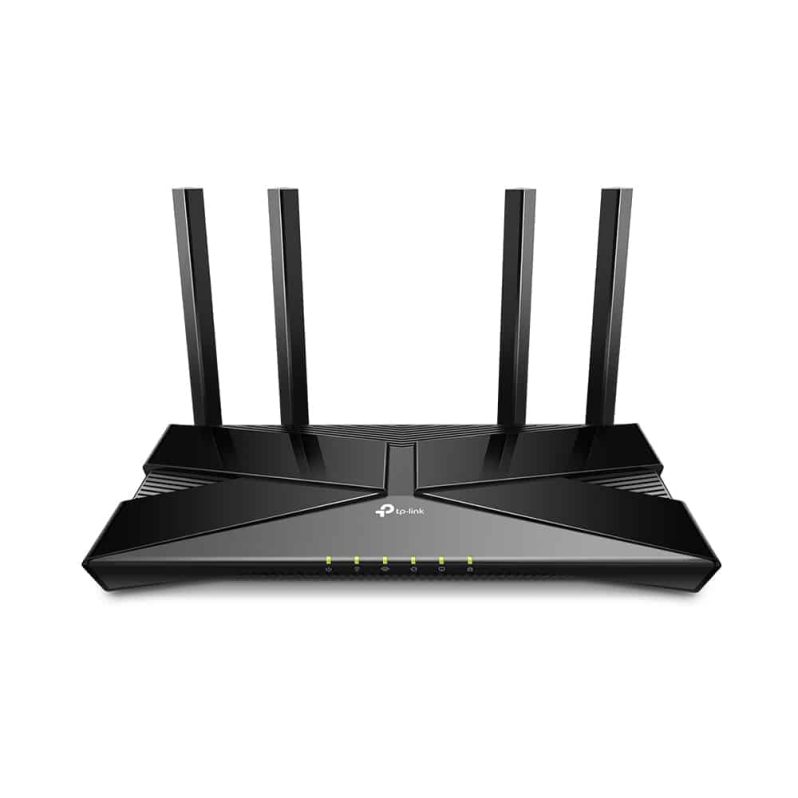

Archer AX23 AX1800 Dual-Band Wi-Fi 6 Router

احصل على عرض لشركتك

5.830 EGP

12 People watching this product now!

Description

Archer AX23 AX1800 Dual-Band Wi-Fi 6 Router

Super-Fast WiFi 6

Transfer HD movies in 10 seconds. WiFi 6’s 1024-QAM improves encoding efficiency by 25% while the improved symbol rate boosts data rate by 11%. Enjoy broader bandwidth while streaming content on multiple devices.

  • AC1200 Router 1200 Mbps
  • Archer AX23  1800 Mbps
  • 52% Faster

Connect More, Stay Fast

Enjoy smooth gaming, video streaming, and live feeds simultaneously. OFDMA strengthens your WiFi by allowing multiple clients to share one band at the same time, cutting latency and jitter.



WiFi Coverage Throughout
Your Home

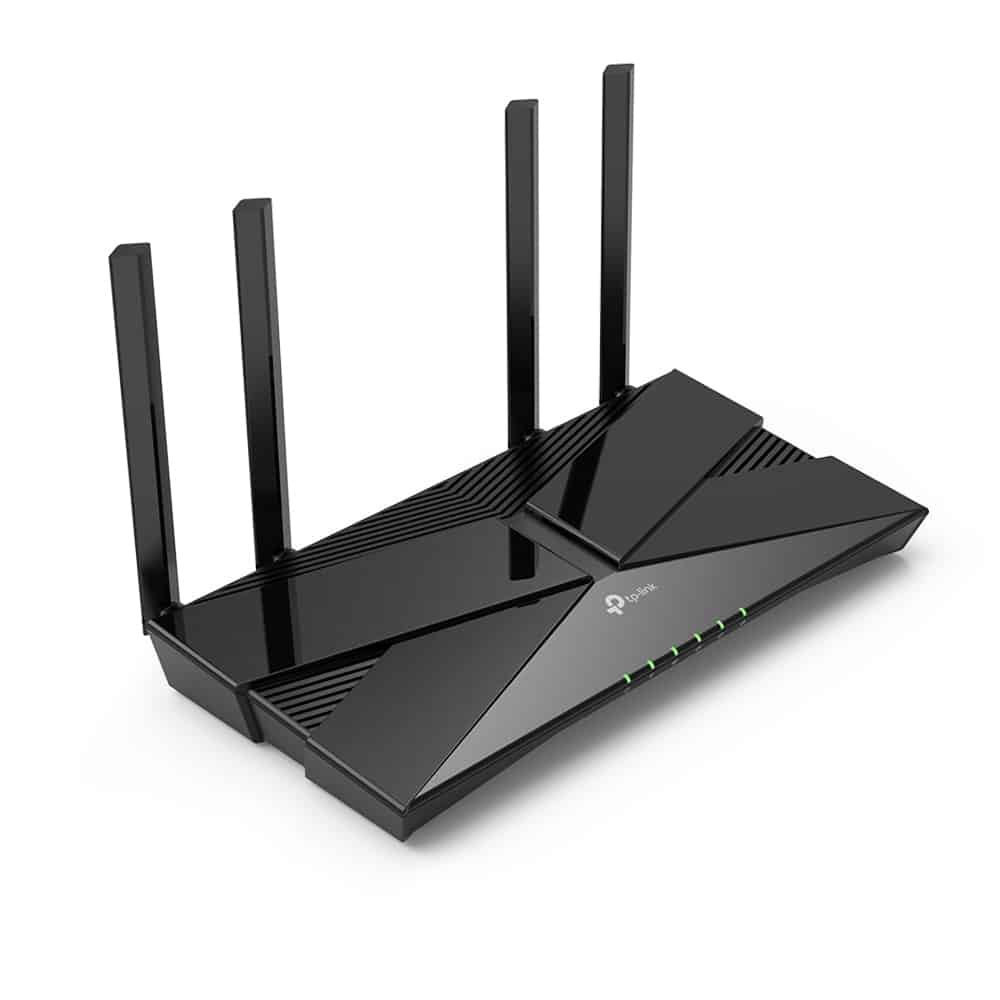

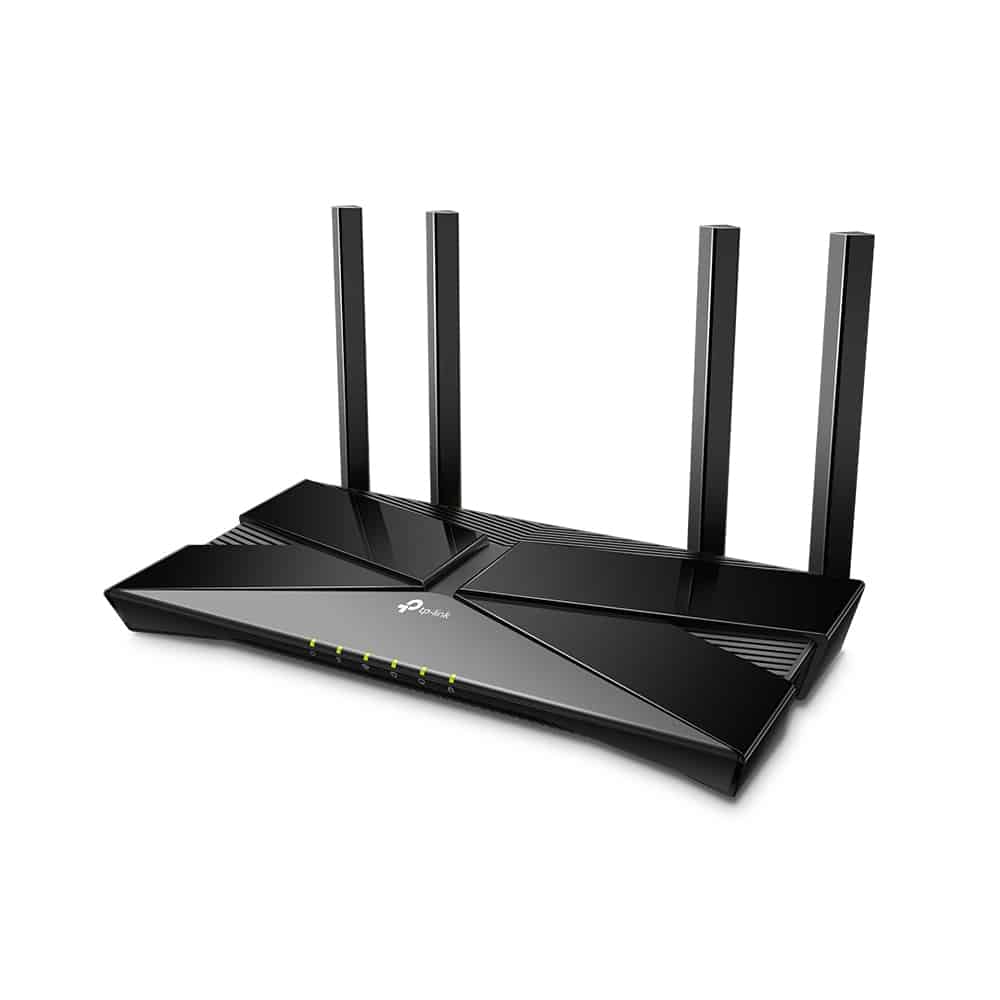

4× high-performance external antennas boost WiFi signals throughout your home. Beamforming technology detects devices and concentrates wireless signal strength towards them, especially for those in previously hard-to-reach areas.

    • Beamforming
  • 4× Antennas

TP-Link OneMesh™
Flexibly Create Whole Home WiFi

Want to build a whole-home WiFi? Archer AX23 supports OneMesh to form seamless coverage throughout your home, preventing drops and lag when moving between signals.

  • Multi-Band Backhaul

    Single-Band Backhaul

    Strong Mesh with Multi-Band Backhaul

  • 0.4 s
    Roaming 5 GHz

    Ultra-Fast Smart Roaming

  • Unified Management


WPA3—The Next Level of Cybersecurity

The latest WiFi security protocol, WPA3, brings new capabilities to improve cybersecurity in personal networks. More secure encryption in WiFi password safety and enhanced protection against brute-force attacks combine to safeguard your home WiFi.



Universal ISP Support

Europe has the most diverse connection types, and TP-Link knows this. Archer AX23 works with all European ISPs by supporting most authentication methods, including the popular L2TP and PPTP methods in your region.



Easy Setup and Use

Whether you prefer the intuitive Tether app or TP-Link’s powerful web interface, you can set up your Archer AX23 in minutes.
The Tether app allows you to manage network settings from any Android or iOS device.

New Connection Notification

You will be notified by your phone when new devices connect. Kick off any suspicious connections and block them. It’s as simple as that.



Easy Firmware Upgrade

Tired of upgrading firmware? OTA updates enable easy firmware upgrades with a click in the management panel. To keep your security and functions always up-to-date, just turn on the auto schedule.



WIRELESS
StandardsWi-Fi 6
IEEE 802.11ax/ac/n/a 5 GHz
IEEE 802.11ax/n/b/g 2.4 GHz
WiFi SpeedsAX1800
5 GHz: 1201 Mbps (802.11ax)
2.4 GHz: 574 Mbps (802.11ax)
WiFi Range3 Bedroom Houses

4× Fixed High-Performance Antennas
Multiple antennas form a signal-boosting array to cover more directions and large areas

Beamforming
Concentrates wireless signal strength towards clients to expand WiFi range
WiFi CapacityHigh

Dual-Band
Allocate devices to different bands for optimal performance

OFDMA
Simultaneously communicates with multiple Wi-Fi 6 clients

Airtime Fairness
Improves network efficiency by limiting excessive occupation

4 Streams
Connect your devices to more bandwidth
Working ModesRouter Mode
Access Point Mode
HARDWARE
ProcessorDual-Core CPU

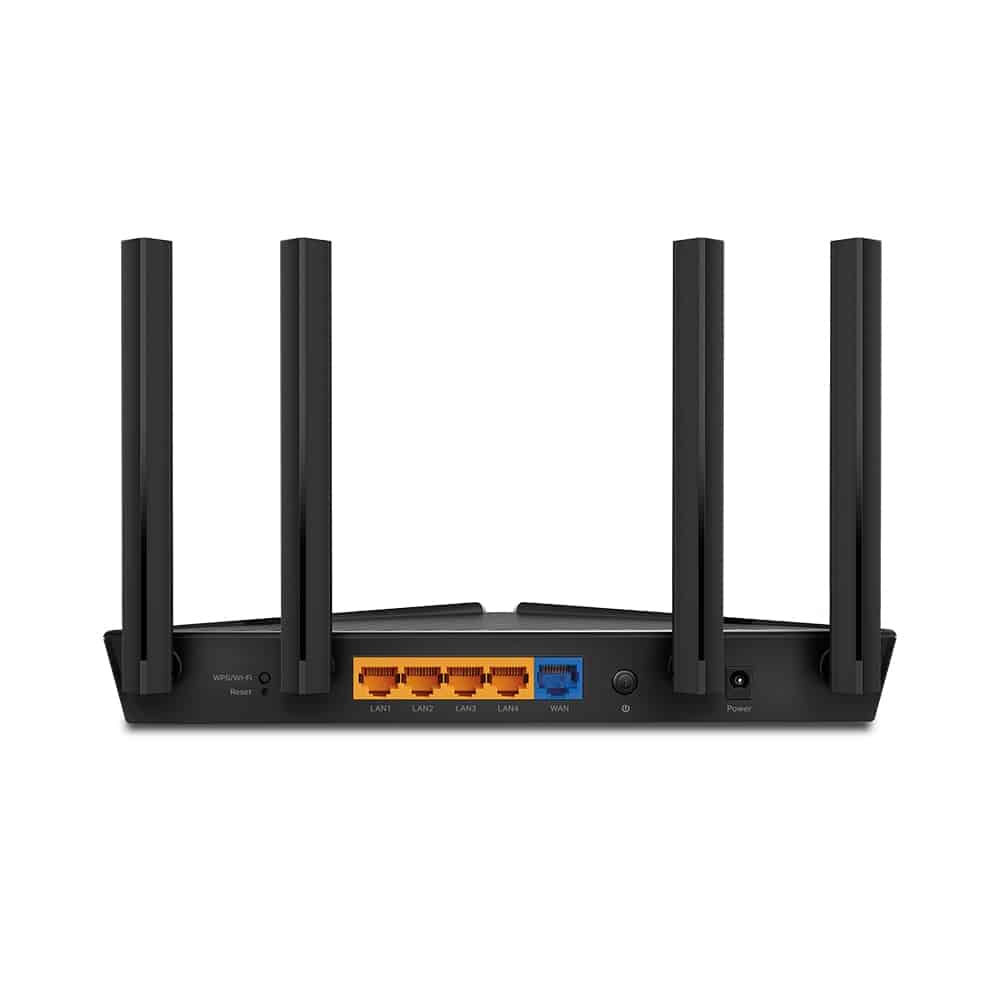

Ethernet Ports1× Gigabit WAN Port
4× Gigabit LAN Ports
ButtonsWPS/Wi-Fi Button
Power On/Off Button
LED On/Off Button
Reset Button
Power12 V ⎓ 1 A
SECURITY
WiFi EncryptionWPA
WPA2
WPA3
WPA/WPA2-Enterprise (802.1x)
Network SecuritySPI Firewall
Access Control
IP & MAC Binding
Application Layer Gateway
Guest Network1× 5 GHz Guest Network
1× 2.4 GHz Guest Network
VPN ServerOpenVPN
PPTP
SOFTWARE
ProtocolsIPv4
IPv6
OneMesh™OneMesh™ Supported
Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products.


Parental ControlsURL Filtering
Time Controls
WAN TypesDynamic IP
Static IP
PPPoE
PPTP
L2TP
Quality of ServiceQoS by Device
Cloud ServiceAuto Firmware Upgrade
OTA Firmware Upgrade
TP-Link ID
DDNS
NAT ForwardingPort Forwarding
Port Triggering
DMZ
UPnP
IPTVIGMP Proxy
IGMP Snooping
Bridge
Tag VLAN
DHCPAddress Reservation
DHCP Client List
Server
DDNSTP-Link
NO-IP
DynDNS
ManagementTether App
Webpage

OTHER
System RequirementsInternet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser

Cable or DSL Modem (if needed)

Subscription with an internet service provider (for internet access)
CertificationsFCC, CE, RoHS
EnvironmentOperating Temperature: 0℃~40℃ (32℉ ~104℉)
Storage Temperature: -40℃~70℃ (-40℉ ~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
TEST DATA
WiFi Transmission PowerCE:
<20dBm(2.4 GHz)
<23dBm(5.15 GHz~5.25 GHz)
FCC:
<30dBm(2.4 GHz & 5.15 GHz~5.825 GHz)
WiFi Reception SensitivityEU Version
5G
11a 6Mbps: -96dbm
11a 54Mbps:-75dbm
11ac VHT20_MCS0: -95dbm
11ac VHT20_MCS8: -71dbm
11ac VHT40_MCS0: -92dbm
11ac VHT40_MCS9: -66dbm
11ac VHT80_MCS0: -89dbm
11ac VHT80_MCS9:-62dbm
11ax HE20_MCS0:-95dbm
11ax HE20_MCS11: -64dbm
11ax HE40_MCS0: -92dbm
11ax HE40_MCS11: -60dbm
11ax HE80_MCS0: -89dbm
11ax HE80_MCS11:-59dbm

2.4G
11g 6Mbps:-96dbm
11g 54Mbps:-75dbm
11n HT20_MCS0:-95dbm
11n HT20_MCS7:-75dbm
11n HT40_MCS0:-92dbm
11n HT40_MCS7: -72dbm
11ac VHT20_MCS0:-95dbm
11ac VHT20_MCS8:-72dbm
11ac VHT40_MCS0:-92dbm
11ac VHT40_MCS9: -67dbm
11ax HE20_MCS0:-95dbm
11ax HE20_MCS11: -65dbm
11ax HE40_MCS0: -92dbm
11ax HE40_MCS11: -62dbm

PHYSICAL
Dimensions (W×D×H)10.2 × 5.3 ×1.5 in
(260.2 × 135.0 × 38.6 mm)
Package ContentsWi-Fi Router Archer AX23
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide
