Asus PRIME H610M-K D4 Intel® H610 (LGA 1700) mic-ATX motherboard with DDR4 PCIe 4.0 M.2 slot – 90MB1A10-M0EAY0

SKU: 610M

احصل على عرض لشركتك

Original price was: 5.100 EGP.Current price is: 4.950 EGP.

11 People watching this product now!

Description

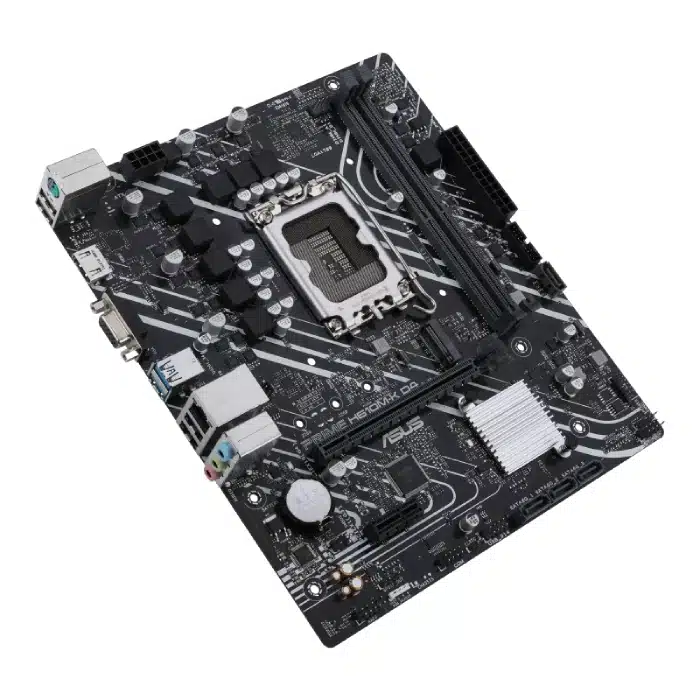

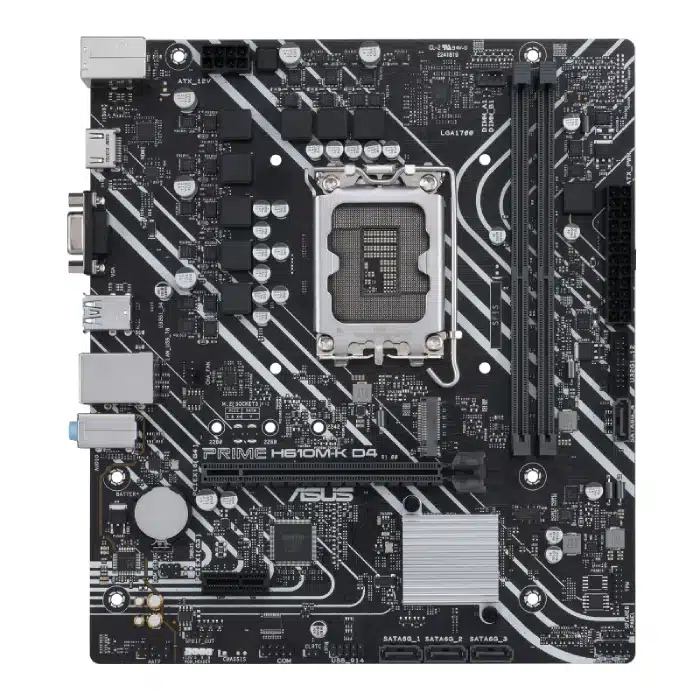

Asus PRIME H610M-K D4 Mothebroard

w692

ASUS Prime series motherboards are expertly engineered to unleash the full potential of 13th & 12th

Generation Intel® processors. Boasting a robust power design, comprehensive cooling solutions and

intelligent tuning options, Prime H610 provides users and PC DIY builders a range of performance

tuning options via intuitive software and firmware features.

prime motherboard

 All-Around Energy Efficiency

The Energy Processing Unit (EPU) automatically optimizes power consumption and maximizes energy

savings with Away mode — a smart setting that creates an extreme energy-saving scenario by shutting

down unused I/O controllers.

H610M

Flexible cooling controls

Prime 600 Series motherboards offer comprehensive control over system fans, via the included Fan

Xpert software. Auto-Tuning mode intelligently configures all parameters with a single click.

prime motherboard

Multiple Temperature Sources

Each header can dynamically reference three thermal sensors. Fan Xpert allows you to map the

temperature of supported ASUS graphics cards to optimize cooling for GPU- and CPU-intensive tasks.

prime لوحه الام

USB 3.2 Gen 1 Type-A

Numerous USB ports support high-end rigs loaded with peripherals, including rear-panel USB Type-A

connectors with fast USB 3.2 Gen 1 connectivity for compatible cases.

Asus PRIME H610M-K D4 Motherboard

BrandAsus
ModelH610M-K D4
CPUIntel® Socket LGA1700 for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™,
Pentium® Gold and Celeron® Processors*
Supports Intel® Turbo Boost Technology 2.0 and
Intel® Turbo Boost Max Technology 3.0**
ChipsetIntel® H610 Chipset
Memory Channel2 x DIMM, Max. 64GB, DDR4
3200/3000/2933/2800/2666/2400/2133 Non- ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
Expansion Slots1 x PCIe 4.0 x16 SafeSlot Core
1 x PCIe 3.0 x1
Graphics1 x D-Sub port
1 x HDMI® port**
StorageTotal supports 1 x M.2 slot and 4 x SATA 6Gb/s ports
Intel® H610 Chipset
M.2 slot (Key M), type 2242/2260/2280
(supports PCIe 3.0 x4 & SATA modes)
4 x SATA 6Gb/s ports
Ethernet1 x Realtek 1Gb Ethernet
USB

Rear USB (Total 6 ports)
2 x USB 3.2 Gen 1 ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)

Front USB (Total 4 ports)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
1 x USB 2.0 header supports additional 2 USB 2.0 ports

Audio

Realtek 7.1 Surround Sound High Definition
Audio CODEC*

– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
– Supports up to 24-Bit/192 kHz playback

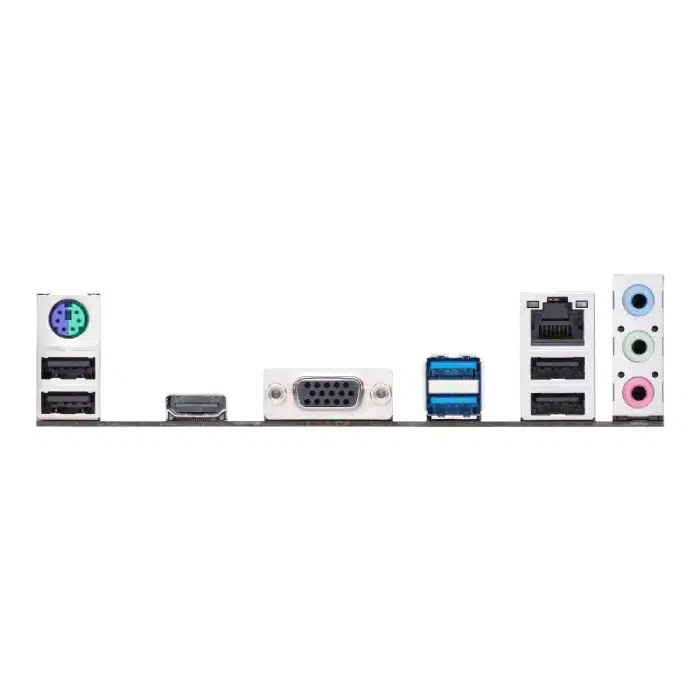

Back Panel I/O Ports2 x USB 3.2 Gen 1 ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x D-Sub port
1 x HDMI® port
1 x Realtek 1Gb Ethernet port
3 x Audio jacks
1 x PS/2 Keyboard/Mouse combo port
Fan and Cooling related1 x 4-pin CPU Fan header
1 x 4-pin Chassis Fan header
Power related1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related1 x M.2 slot (Key M)
4 x SATA 6Gb/s ports
USB1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
1 x USB 2.0 header supports additional 2 USB 2.0 ports
Miscellaneous1 x RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x Speaker header
1 x SPI TPM header (14-1pin)
1 x 10-1 pin System Panel header
BIOS128 Mb Flash ROM, UEFI AMI BIOS
ManageabilityWOL by PME, PXE
Cables2 x SATA 6Gb/s cables
Miscellaneous1 x I/O Shield
1 x M.2 ANCHOR
Installation Media1 x Support DVD
Documentation1 x User Guide
Operating SystemWindows® 11 64-bit, Windows® 10 64-bit
Form FactormATX Form Factor
9.2 inch x 8.0 inch ( 23.4 cm x 20.3 cm )
