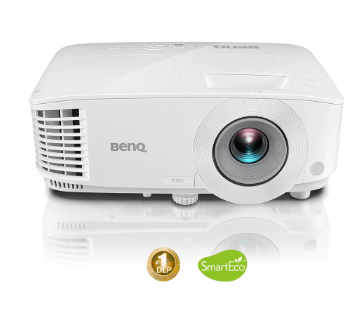

The BenQ MX550 is a professional XGA DLP projector designed for meeting rooms, business presentations, classrooms, training environments, and everyday office use. Combining 3600 ANSI lumens brightness with native XGA resolution, a 20,000:1 contrast ratio, and 30-bit color support, it delivers clear and detailed presentation images across a wide range of business and educational applications.

With dual HDMI inputs, VGA, Composite Video, S-Video, USB Mini-B, and RS232 connectivity, the MX550 provides flexible integration with computers, laptops, presentation equipment, and other compatible video sources. Its compact 2.3 kg design also makes installation and relocation convenient.

Bright 3600 ANSI Lumens Projection

With 3600 ANSI lumens brightness, the BenQ MX550 is designed to produce clear and visible images in meeting rooms, classrooms, and presentation environments.

The high brightness helps presentation slides, spreadsheets, charts, text, and graphics remain easy to see in environments where ambient lighting may be present.

XGA 1024 x 768 Native Resolution

The projector features native XGA resolution of 1024 x 768 pixels with a 4:3 native aspect ratio.

This format is well suited to traditional business presentations, documents, spreadsheets, educational materials, and training content.

20,000:1 Contrast Ratio and 30-Bit Color

The MX550 provides a 20,000:1 FOFO contrast ratio for defined differences between dark and bright image areas.

It also supports 30-bit color and up to 1.07 billion colors, helping produce smoother color reproduction and detailed presentation content.

DLP Projection System

The BenQ MX550 uses DLP projection technology for clear and sharp image reproduction.

The DLP projection system makes the MX550 well suited to displaying text, charts, presentations, graphics, and multimedia content in business and educational environments.

Flexible Projection and Image Adjustment

The projector features a 1.1x optical zoom and a throw ratio of 1.96–2.15, providing flexibility when positioning the projector relative to the screen.

Vertical keystone adjustment of up to ±30° helps correct image distortion when the projector cannot be positioned perfectly perpendicular to the projection surface.

The projector also features a 110% full-height projection offset.

Multiple Picture Modes

The MX550 provides several picture modes for different presentation requirements:

• 3D
• Bright
• Infographic
• Presentation
• sRGB
• User 1
• User 2

This allows users to select a suitable image profile depending on the type of content being displayed.

Wide Compatibility

The projector supports input resolutions ranging from VGA 640 x 480 up to WUXGA_RB 1920 x 1200.

This makes it compatible with a broad range of computers and video sources used in business, education, and presentation environments.

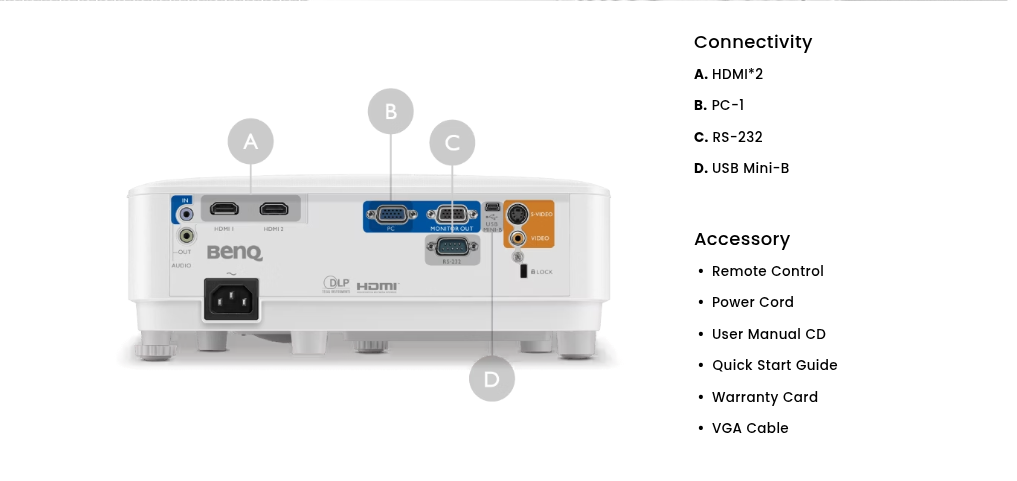

Extensive Connectivity

The BenQ MX550 provides a comprehensive selection of input and output interfaces:

• 2 x HDMI 1.4a / HDCP 1.4
• 1 x VGA D-sub 15-pin PC input
• 1 x VGA D-sub 15-pin monitor output
• 1 x Composite Video RCA
• 1 x S-Video Mini DIN 4-pin
• 1 x USB Mini-B
• 1 x RS232 DB-9

The dual HDMI configuration makes it convenient to connect multiple modern digital sources without constantly changing cables.

Built-In Audio

A built-in 2W speaker provides convenient audio playback for presentations and multimedia content.

The MX550 also includes:

• 3.5mm Audio In
• 3.5mm Audio Out

This allows the projector to work with compatible external audio equipment when required.

Long Lamp Life

The lamp provides different operating modes to balance brightness, performance, and lamp longevity:

• Normal: Up to 5,000 hours
• ECO: Up to 10,000 hours
• SmartEco: Up to 10,000 hours
• LampSave: Up to 15,000 hours

The extended LampSave mode can help reduce maintenance requirements and lamp replacement frequency.

Compact and Portable Business Design

Measuring just 296 x 120 x 221 mm and weighing approximately 2.3 kg, the BenQ MX550 offers a compact form factor for a meeting-room projector.

Its relatively light weight makes it practical for fixed installation or moving between presentation spaces when required.

Flexible Installation

The projector can be used in different meeting and presentation environments, with a 1.96–2.15 throw ratio, 1.1x zoom, and vertical keystone adjustment.

An optional BenQ Universal Ceiling Mount CM00G3 is available for ceiling installation.

Efficient Operation

The MX550 operates from an AC 100–240V, 50/60Hz power supply.

Typical power consumption is approximately 270W at 110V. Acoustic noise is rated at approximately 33 dB in typical mode and 29 dB in Eco mode.

Ideal for Business and Education

The BenQ MX550 is suitable for:

• Meeting rooms
• Conference rooms
• Business presentations
• Training sessions
• Classrooms
• Educational institutions
• Corporate offices
• Presenting spreadsheets and documents
• Multimedia presentations

Key Features

• BenQ MX550 XGA DLP projector
• 3600 ANSI lumens brightness
• Native XGA 1024 x 768 resolution
• 4:3 native aspect ratio
• 20,000:1 FOFO contrast ratio
• 30-bit color / 1.07 billion colors
• DLP projection system
• 1.1x zoom ratio
• 1.96–2.15 throw ratio
• 110% projection offset
• Vertical keystone adjustment ±30°
• 2 x HDMI 1.4a / HDCP 1.4
• VGA input and monitor output
• Composite Video and S-Video
• USB Mini-B
• RS232
• Built-in 2W speaker
• 3.5mm audio input and output
• Lamp life up to 15,000 hours in LampSave mode
• Compact 296 x 120 x 221 mm design
• Net weight 2.3 kg
• Optional 3D glasses support
• Optional universal ceiling mount support

Specifications

• Brand: BenQ
• Model: MX550
• Product Type: Meeting Room / Business Projector
• Projection System: DLP
• Brightness: 3600 ANSI Lumens
• Native Resolution: XGA 1024 x 768
• Native Aspect Ratio: 4:3
• Contrast Ratio: 20,000:1 FOFO
• Display Color: 30-bit / 1.07 Billion Colors
• Light Source: Lamp
• Lamp Life Normal: 5,000 Hours
• Lamp Life ECO: 10,000 Hours
• Lamp Life SmartEco: 10,000 Hours
• Lamp Life LampSave: 15,000 Hours
• Throw Ratio: 1.96–2.15
• Zoom Ratio: 1.1x
• Lens: F/# 2.56–2.68, f = 22–24.1 mm
• Projection Offset: 110%
• Keystone Adjustment: 1D Vertical ±30°
• Picture Modes: 3D, Bright, Infographic, Presentation, sRGB, User 1, User 2
• Resolution Support: VGA 640 x 480 to WUXGA_RB 1920 x 1200
• Horizontal Frequency: 15K–102KHz
• HDMI: 2 x HDMI 1.4a / HDCP 1.4
• PC Input: 1 x D-sub 15-pin
• Monitor Output: 1 x D-sub 15-pin
• Composite Video: 1 x RCA
• S-Video: 1 x Mini DIN 4-pin
• USB: 1 x Mini-B
• RS232: 1 x DB-9
• Speaker: 2W
• Audio Input: 1 x 3.5mm Mini Jack
• Audio Output: 1 x 3.5mm Mini Jack
• Power Supply: AC 100–240V, 50/60Hz
• Typical Power Consumption: Approximately 270W at 110V
• Acoustic Noise: 33 dB Typical / 29 dB Eco
• Operating Temperature: 0–40°C
• Dimensions: 296 x 120 x 221 mm
• Net Weight: 2.3 kg
• Remote Control: RCX014 with Battery
• Power Cord: 1 x 1.8m, by region
• VGA Cable: 1 x 1.5m
• User Manual CD: Included
• Quick Start Guide: Included
• Warranty Card: Included, by region
• 3D Glasses: DGD5, Optional
• Universal Ceiling Mount: CM00G3, Optional
