Description

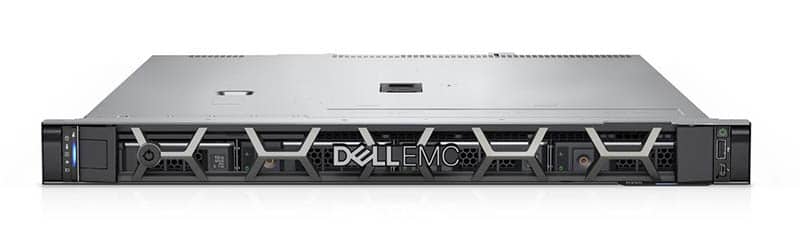

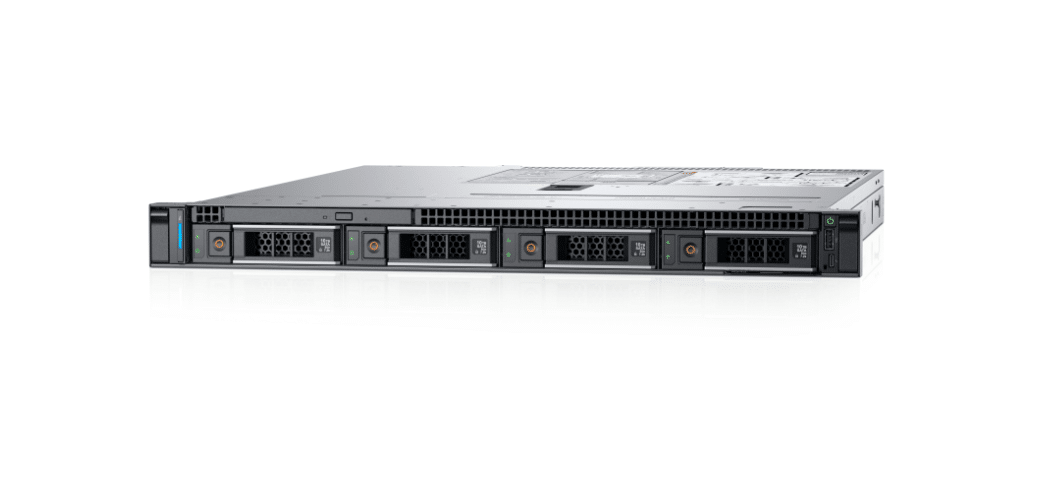

Dell PowerEdge R250 Rack Server



DELL EMC PowerEdge R250 Rack Server

The DELL EMC PowerEdge R250 Rack Server, powered by Intel® Xeon® E-2300 processors, delivers powerful computing for common business applications and streamlines productivity. It supports 3200 MT/s DDR4 speeds and 32 GB DIMMs, up to 128 GB for memory-intensive workloads.

In addition, to address substantial throughput improvements, the DELL EMC PowerEdge R250 Rack Server supports PCIe Gen 4 and offers enhanced thermal efficiency to support increasing power and thermal requirements. This makes theDELL EMC PowerEdge R250 Rack Server a rack ideal server for business critical workloads, cloud infrastructure, and point of sale transactions in a 1U form factor, for small to mid-sized businesses, inside and outside of the data center.

Feature Technical Specifications

Processor One Intel Xeon E-2300 series processor with up to 8 cores

Memory • Four DDR4 DIMM slots, supports UDIMM 128 GB max, speeds up to 3200 MT/s

• Supports unregistered ECC DDR4 DIMMs only

Note: For Pentium processor, the maximum memory speed is 2666 MT/s.

Storage controllers • Internal controllers: PERC H345, H355, H755, HBA355i, S150

• Internal Boot: Internal Dual SD Module or USB or Boot Optimized Storage Subsystem (BOSS-S1): HWRAID 2 x M.2 SSDs
• External HBAs (non-RAID): HBA355e

Drive bays Front bays:

• Up to 4 x 3.5-inch hot swap SAS/SATA (HDD/SSD) max 30.72 TB
• Up to 2 x 3.5-inch cabled SAS/SATA (HDD/SSD) max 15.36 TB
• Up to 4 x 3.5-inch cabled SAS/SATA (HDD/SSD) max 30.72 TB

Power supplies • 450W Bronze 100-240 VAC, cabled

• 450W Platinum 100-240 VAC, cabled

Cooling options Air cooling

Fans • Up to four cabled fans

Dimension • Height: 42.8 mm (1.68 inches)

• Width: 482 mm (18.97 inches)
• Depth: 598.64 mm (23.56 inches) with bezel

585 mm (23.03 inches) without bezel

Form Factor 1U rack server

Embedded management • iDRAC9

• iDRAC Direct
• iDRAC RESTful API with Redfish
• iDRAC Service Module

Bezel Optional bezel or security bezel

OpenManage Software • OpenManage Enterprise

• OpenManage Power Manager plugin
• OpenManage SupportAssist plugin
• OpenManage Update Manager plugin

Mobility OpenManage Mobile

Integrations and Connections OpenManage Integrations OpenManage Connections

• BMC Truesight
• Microsoft System Center
• Red Hat Ansible Modules
• VMware vCenter and vRealize Operations Manager
• IBM Tivoli Netcool/OMNIbus
• IBM Tivoli Network Manager IP Edition
• Micro Focus Operations Manager
• Nagios Core
• Nagios XI

Security • Cryptographically signed firmware

• Secure Boot
• Secure Erase
• Silicon Root of Trust
• System Lockdown (requires iDRAC9 Enterprise or Datacenter)
• TPM 1.2/2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ

Embedded NIC Onboard LOM 1GbE x2

GPU options Not supported

Ports Front Ports

• 1 x USB 2.0
• 1 x iDRAC Direct (Micro-AB USB) port

Rear Ports

• 1 x USB 2.0
• 1 x iDRAC ethernet port
• 1 x USB 3.0
• 1 x VGA
• 1 x Serial port

Internal Ports

• 1 x USB 3.0 (optional)

PCIe 2 PCIe slots:

• 1 x8 Gen4 (x16 connector) low profile, half length
• 1 x8 Gen4 (x8 connector) low profile, half length

Operating System and Hypervisors • Canonical Ubuntu Server LTS

• Citrix Hypervisor
• Microsoft Windows Server with Hyper-V
• Red Hat Enterprise Linux
• SUSE Linux Enterprise Serveri

For specifications and interoperability details, see Dell.com/OSsupport.

OEM-ready version available From bezel to BIOS to packaging, your servers can look and feel as if they were designed and built by you.
