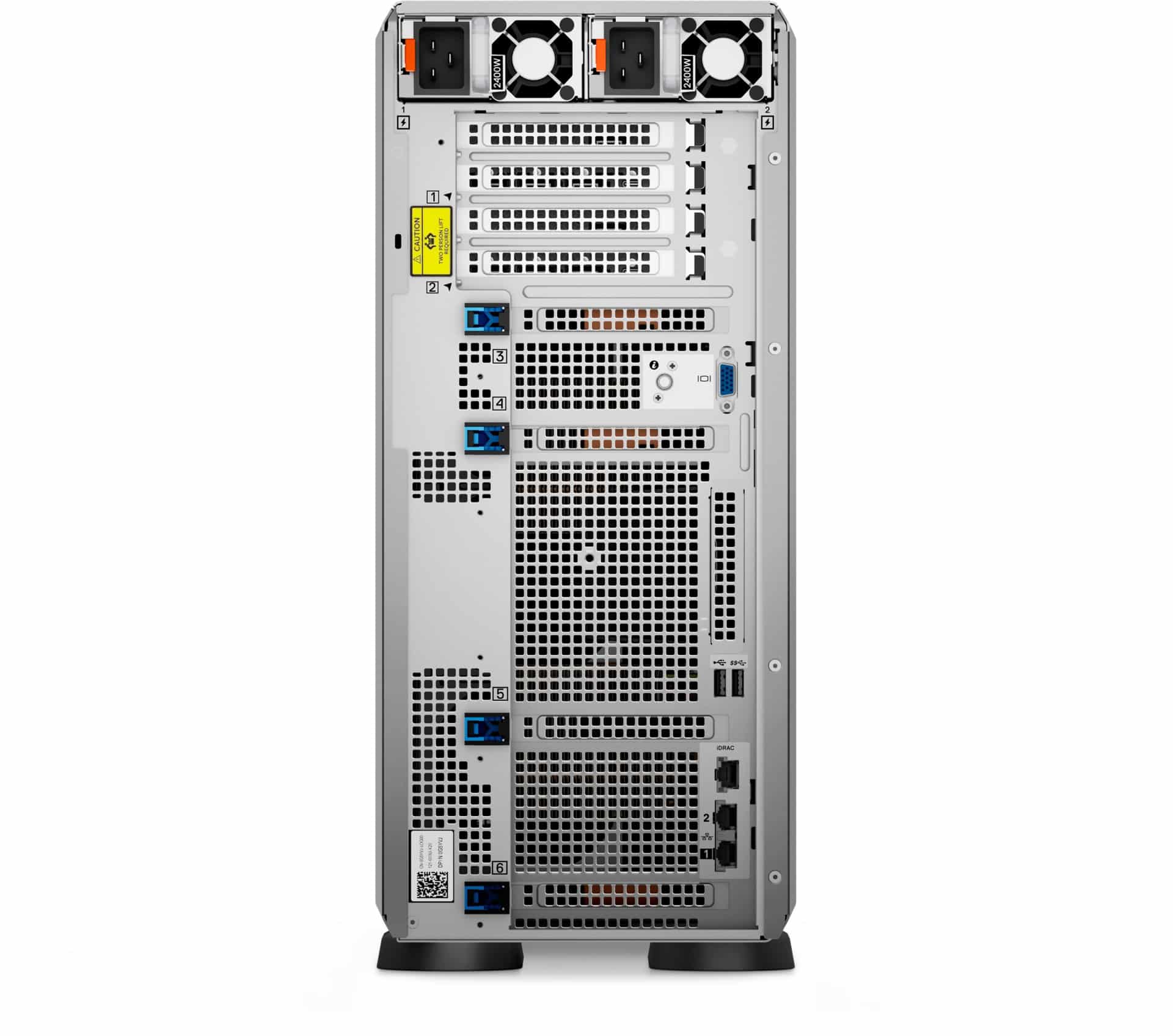

Dell PowerEdge T550 Tower Server
Description
The Dell PowerEdge T550 Tower Server is a flexible two socket tower server balances expandability and performance and offers advanced technologies such as accelerators to address enterprise class workloads.
Innovate at scale with an expandable tower server for enterprise workloads
The Dell EMC PowerEdge T550, powered by the 3rd Generation Intel Xeon Scalable processors, is an enterprise lass tower server that offers advanced technologies and support for accelerators.
The PowerEdge T550 provides office friendly acoustics, ease of management and expandability for growth and performance.
Powerful and versatile, the PowerEdge T550 addresses business critical workloads, cloud infrastructure, and database management as well as enterprise level requirements for data analysis, virtualization, and AI/ML/inferencing.
Dell PowerEdge T550 Tower Server Increase efficiency and accelerate operations with autonomous collaboration
The Dell EMC OpenManage systems management portfolio tames the complexity of managing and securing IT infrastructure.
Using Dell Technologies’ intuitive end-to-end tools, IT can deliver a secure, integrated experience by reducing process and information silos in order to focus on growing the business.
The Dell EMC OpenManage portfolio is the key to your innovation engine, unlocking the tools and automation that help you scale, manage, and protect your technology environment.
- Built-in telemetry streaming, thermal management, and RESTful API with Redfish offer streamlined visibility and control for better server management
- Intelligent automation lets you enable cooperation between human actions and system capabilities for added productivity
- Integrated change management capabilities for update planning and seamless, zero-touch configuration and implementation
- Full-stack management integration with Microsoft, VMware, ServiceNow, Ansible and many other tools
Protect your data assets and infrastructure with proactive resilience
The Dell EMC PowerEdge T550 server is designed with a cyber-resilient architecture, integrating security deeply into every phase in the lifecycle, from design to retirement.
- Operate your workloads on a secure platform anchored by cryptographically trusted booting and silicon root of trust
- Maintain server firmware safety with digitally signed firmware packages
- Prevent unauthorized configuration or firmware change with system lockdown
- Securely and quickly wipe all data from storage media, including
- hard drives, SSDs and system memory with System Erase
Dell PowerEdge T550 Tower Server Specifications
Processor : Up to two 3rd Generation Intel Xeon Scalable processors with up to 36 cores per processor
Memory : 16 DDR4 DIMM slots, supports RDIMM 2 TB max, speeds up to 3200 MT/s , Supports registered ECC DDR4 DIMMs only
Storage :
- Internal controllers: HBA345, PERC H345, PERC H355, PERC H745, PERC H755, S150, H755N, HBA355i
- Internal Boot: Internal Dual SD Module, Boot Optimized Storage Subsystem (BOSS-S2): HWRAID 2 x M.2 SSDs, USB
- External PERC (RAID): PERC H840
- External HBAs (non-RAID): HBA355e
Front bays :
- Up to 8 x 2.5-inch SAS/SATA (HDD) max 120 TB
- Up to 16 x 2.5-inch SAS/SATA (HDD) max 240 TB
- Up to 24 x 2.5-inch SAS/SATA (HDD) max 360 TB
- Up to 8 x 3.5-inch SAS/SATA (HDD/SAS) max 120 TB
- Up to 8 x 3.5-inch SAS/SATA (HDD) 8 x 2.5-inch NVMe (SSD) max 240 TB
Dell PowerEdge T550 Tower Server Power Supplies :
- 600 W DC/240 V
- 600 W Platinum AC/100–240 V
- 800 W DC/240 V
- 800 W Platinum AC/100–240 V
- 1100 W DC/-48–(-60) V
- 1100 W DC/240 V
- 1100 W Titanium AC/100–240 V
- 1400 W DC/240 V
- 1400 W Platinum AC/100–240 V
- 2400 W DC/240 V
- 2400 W Platinum AC/100–240 V
Cooling options : Air cooling
Fans : Standard (STD) fans/High performance (HPR) silver fans , Up to eight hot swap fans
Height : 459.0 mm (18.07 inches)
Width : 200.0 mm (7.87 inches)
Depth : 663.5 mm (26.12 inches) , without bezel 680.5 mm (26.79 inches) – with beze
Form Factor : 5U tower server
Embedded Management :
- iDRAC9
- iDRAC Direct
- iDRAC Service Module
- iDRAC RESTful with Redfish
- Quick Sync 2 wireless module
Bezel Optional : LCD bezel or security bezel
OpenManage Software :
- OpenManage Enterprise
- OpenManage Power Manager plugin
- OpenManage SupportAssist plugin
- OpenManage Update Manager plugin
Mobility OpenManage : Mobile
Integrations and Connections :
- BMC Truesight
- Microsoft System Center
- OpenManage Integrations
- Red Hat Ansible Modules
- VMware vCenter and vRealize Operations Manager
- IBM Tivoli Netcool/OMNIbus
- IBM Tivoli Network Manager IP Edition
- Micro Focus Operations Manager
- OpenManage Connections
- Nagios Core
- Nagios XI
Dell PowerEdge T550 Tower Server Security :
- Cryptographically signed firmware
- Secure Boot
- Secure Erase
- Silicon Root of Trust
- System Lockdown (requires iDRAC9 Enterprise or Datacenter)
- TPM 1.2/2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ
Embedded : NIC 2 x 1 GbE LOM
flexible two socket tower server Network Options : 1 x OCP 3.0
GPU Options : Up to two double wide 300 W NVIDIA A40, or five single wide 70 W NVIDIA T4 accelerators
Front Ports :
- 1 x iDRAC Direct (Micro-AB USB) port (optional)
- 1 x USB 2.0
- 1 x USB 3.0
Front Ports :
- 1 x iDRAC Direct (Micro-AB USB) port (optional)
- 1 x USB 2.0
- 1 x USB 3.0
Internal Ports : 1 x USB 3.0 (optional)
Dell PowerEdge T550 Tower Server PCIe : Up to 6 x PCIe Gen4 slots
Operating System and Hypervisors :
- Canonical Ubuntu Server LTS
- Citrix Hypervisor
- Microsoft Windows Server with Hyper-V
- Red Hat Enterprise Linux
- SUSE Linux Enterprise Server
- VMware ESX
