Description
Epson EB-L530U Laser WUXGA 3LCD Projector
Flexible laser display solution
- 5,200-lumen brightness Crisp images and bright colours, even in well-lit rooms
- WUXGA resolution Sharp Full HD images for excellent clarity
- Futureproofed connectivity options 4K input support, HDMI, HDBaseT, integrated Wi-Fi and screen mirroring
- Easy, flexible installation Lightweight and compact design with wide lens shift
- Support social distancing Scalable display size of up to 500 inches

Experience brighter and bolder displays
The EB-L530U produces more engaging and impactful displays even in brightly lit environments. It offers impressive 5,200-lumen brightness and WUXGA Full HD resolution at an affordable price. This means you can upgrade to laser performance and reliability, with reduced power consumption. It also features: 4K input support, detail enhancement technology, edge blending and wide lens shift to fit challenging installation environments. The EB-L530U is capable of up to 500-inch displays, without any reduction in clarity or vivid detail.
Install with ease
The EB-L530U includes many professional features which make installation simple, even when producing more advanced displays. This stylish and compact projector offers 360-degree installation, without compromising the display quality, and supports 16:6 ultra-widescreen, which means you can maximise the visible display space available. Also, with split-screen capability you can display two or four images from different sources simultaneously; and geometric correction and edge blending help create one large, seamless image using multiple displays.
Scale to suit your environment
Unlike a flat-panel display, there’s no glare, fingerprints or wasted wall space. The image can be scaled to fit the required display size, from 50 to 500 inches. Whether it’s for education, corporate, retail or visitor attractions, the viewing experience can be unrestricted and more engaging for the audience.
Connect and control
The EB-L530U offers many ways to connect, show multiple sources simulateneously and present wirelessly. The future-proofed connectivity options include: HDMI (input and output) and HDBaseT with 4K signal support, 5GHz wireless with enterprise security, built-in media player, built-in Miracast and support for Epson’s ELPWP10 wireless presentation system. It is also easy to set up and navigate thanks to the intuitive on-screen user guide.
Create customised content for signage
Featuring a built-in media player with network content upload, The EB-L530U allows playlists to be loaded onto a USB storage device and played directly from the projector². Create customised content with your smartphone or tablet using the Epson Creative Projection App or create and schedule playlists using Epson Projector Content Manager software.
Plug, click and collaborate
Collaboration is made easy with Epson’s wireless presentation system, the ELPWP10. Achieve cost-saving and contemporary wireless connectivity. No cables – just plug-and-play!
Take control of your projected images
Achieve greater levels of image manipulation and control with Epson Projector Professional Tool software. Advanced features such as edge blending, projection mapping and multi-projector control are simplified thanks to this free and intuitive tool.
Support social distancing
Where social distancing remains both a requirement and responsible consideration, the scalable display size of up to 500 inches allows the content to be viewed from any position.
What is in the box?
Tech Specs:
| Technology | 3LCD Technology, RGB liquid crystal shutter |
| LCD Panel | 0.67 inch with C2 Fine |
| Color Light Output | 5,200 Lumen (Normal) / 3,640 Lumen (Economy) |
| White Light Output | 5,200 Lumen (Normal) / 3,640 Lumen (Economy) |
| Resolution | WUXGA (1920 x 1200) |
| Resolution Enhancement | Full HD |
| Aspect Ratio | 16:10 |
| On-Screen Pixel Count | 2304000 |
| Contrast Ratio | Over 5,000,000:1 |
| Light Source | Laser |
| Laser Light Source Life | 20,000 hours (High), 30,000 hours (Eco) |
| Keystone Correction | Manual Vertical: ±30°, Manual Horizontal: ±30° |
| Color Video Processing | 10 Bits |
| Color Reproduction | Up to 1.07 billion colors |
| Throw Ratio | 1.35 – 2.20:1 |
| Zoom | Manual, Factor: 1 – 1.6 |
| Projection Lens Zoom Ratio | 1.35 – 2.2:1 |
| Lens | Optical |
| Lens Shift | Manual – Vertical ±50%, Horizontal ±20% |
| Screen Size | 50 inches – 500 inches |
| Projection Distance (Wide) | 1.4 m – 14.8 m |
| Projection Distance (Tele) | 2.4 m – 23.8 m |
| Projection Lens F Number | 1.5 – 1.7 |
| Projection Lens Focal Length | 20 mm – 31.8 mm |
| Projection Lens Focus | Manual |

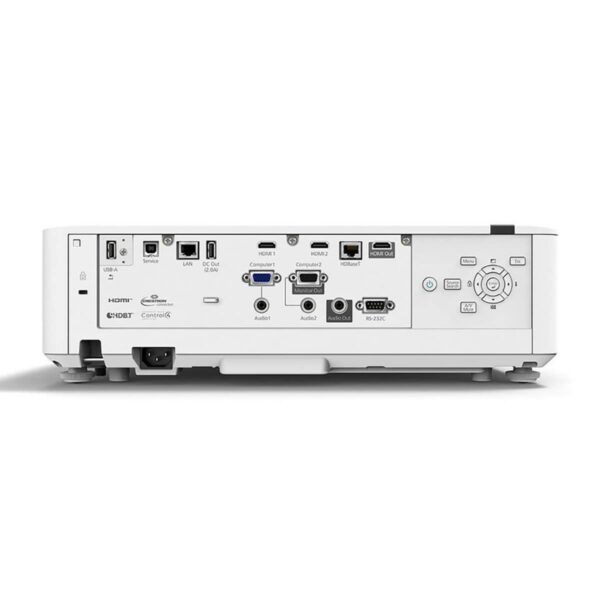

| Interfaces | USB 2.0-A, USB 2.0, RS-232C, Ethernet, Wireless LAN IEEE 802.11a/b/g/n/ac, VGA in (2x), VGA out, HDMI out, HDBaseT, Miracast, Audio Jack In (2x), Audio Jack Out, HDMI (HDCP 2.3) (2x), USB 2 Type A playback |
| Epson iProjection App | Ad-Hoc / Infrastructure |
| Network Protocols | HTTPS, IPv6, SNMP, ESC/VP.net, PJLink |
| Security | Kensington lock, Control panel lock, Security cable hole, Wireless LAN unit lock, Wireless LAN security, Password protection |
| 2D Color Modes | Dynamic, Cinema, Presentation, sRGB, DICOM SIM |
| Advanced Features | 21:9 aspect ratio support, A/V mute, Arc Correction, Auto Power On, Auto source search, Built-in speaker, CEC compatible, Daisy chain Multi-Projection, Digital zoom, Direct Power on/off, Document Camera Compatible, Edge Blending, Horizontal & Vertical Keystone Correction, JPEG Viewer, Long light source life, PC Free, Quick Corner, Schedule Function, Screen Mirroring, Split-Screen Function, Super Resolution, Ultra-wide display (16:6), Volume Control, Web Control, Web Remote, Wireless LAN capable, iProjection App |
| Video Color Modes | Cinema, Dynamic, Presentation, sRGB, DICOM SIM, Multi Projection |
| Projector Control | Crestron Integrated Partner, Extron IP Link, Extron XTP, AMX Device Discovery, Control4 Simple Device Discovery Protocol |
| Power Consumption | 234W (Normal On-Mode), 164W (Eco On-Mode), 293W (Normal Peak-Mode), 223W (Eco Peak-Mode), 0.3W (Energy Saving Standby) |
| Supply Voltage | AC 100V – 240V, 50Hz – 60Hz |
| Dimensions (W x D x H) | 440 x 339 x 136 mm |
| Weight | 8.2 kg |
| Noise Level | Normal: 31 dB(A), Economy: 23 dB(A) |
| Supported Temperature | Storage: -10°C – 60°C |
| Supported Humidity | Operation: 20% – 80%, Storage: 10% – 90% |
| Environmental Considerations | Avoid heavy oil smoke, volatile chemicals, smoke machines, bubbles, or aroma oils to prevent degradation and potential breakage. |
| Optional Accessories | Connection and control box, Document camera, External Speaker, HDBaseT Transmitter, MB22 ceiling mount, Wireless LAN unit |
| Loudspeaker | 10W |
| Application Areas | Boardrooms, Large Meeting Rooms, Auditoriums, Meeting Rooms, Classrooms, Projection Mapping, Digital Signage, Visitor Attractions |
| Mounting Options | Ceiling Mounted, Desktop |
| Color | White |
| TCO Certified | Yes (Further details: TCOCertification) |
| Warranty | 36 months Carry-in |
