The hAP ac lite is a Dual-concurrent Access Point, that provides WiFi coverage for 2.4GHz and 5GHz frequencies at the same time.

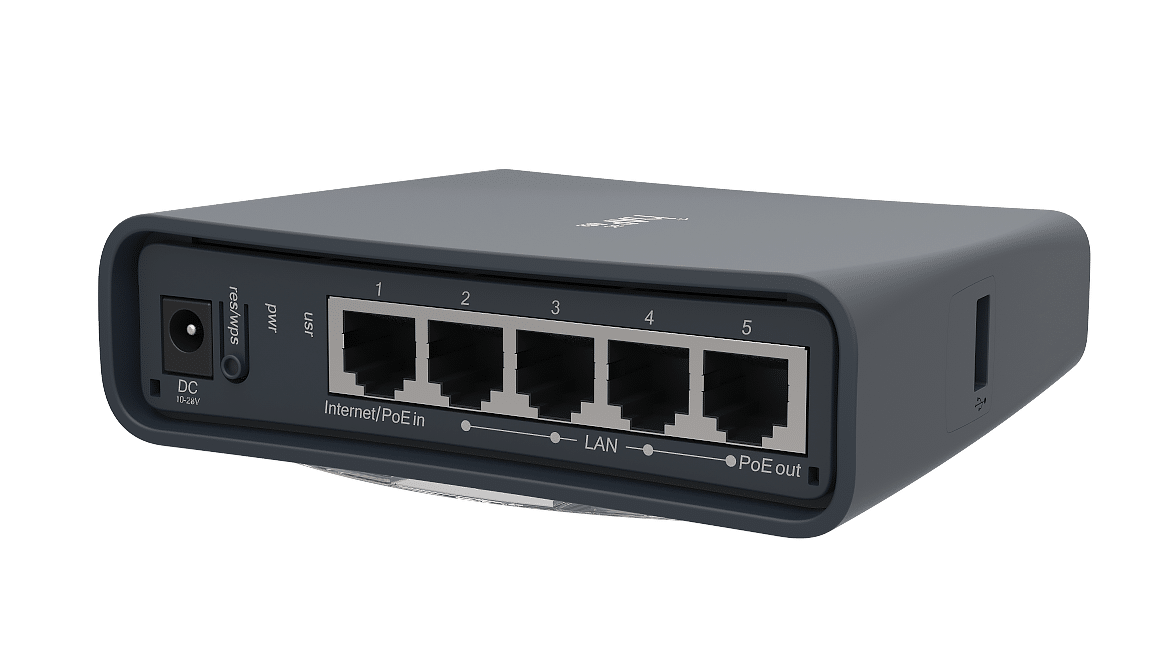

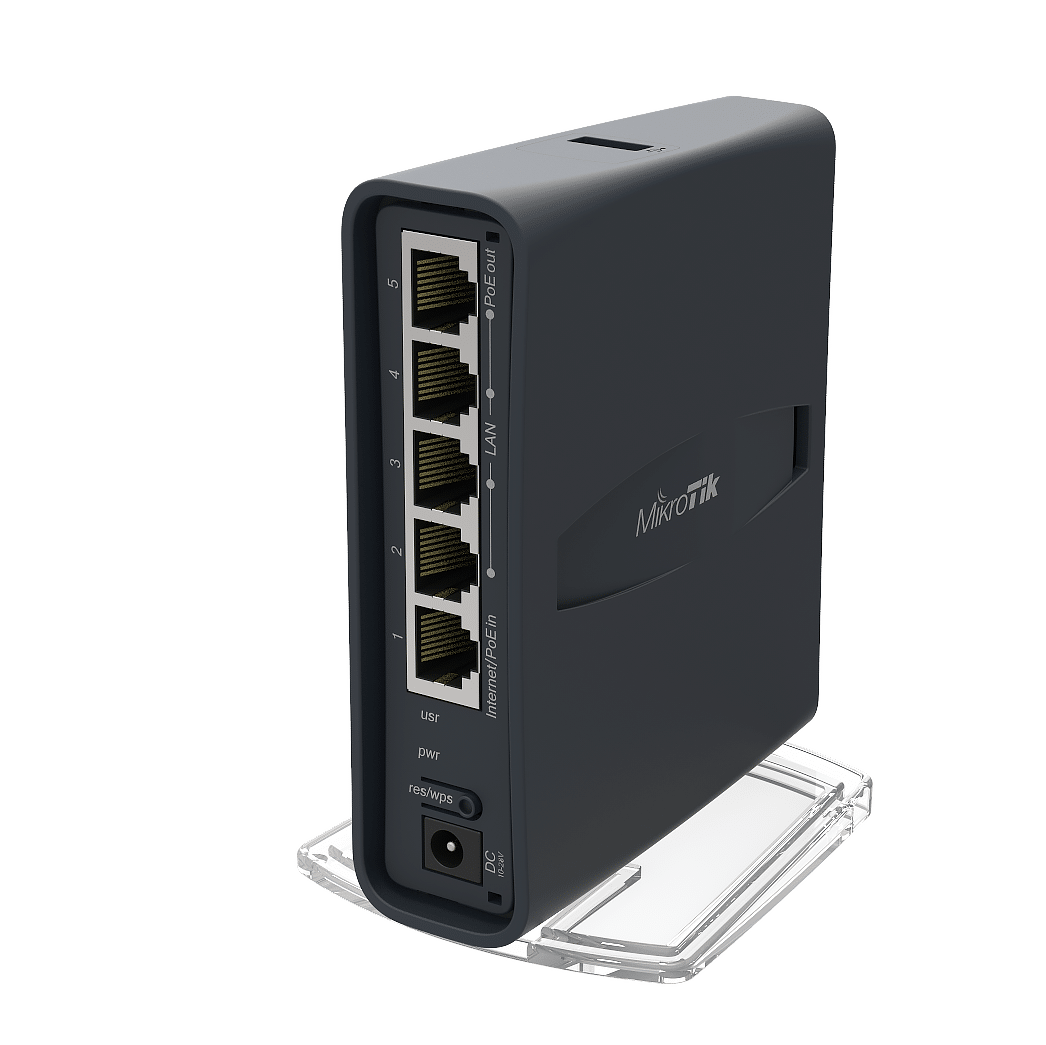

Unit is equipped with a 650MHz CPU, 64MB RAM, five 10/100Mbps Ethernet ports (PoE output on port #5), dual-chain 802.11b/g/n 2.4GHz wireless, single chain 802.11a/n/ac 5GHz wireless, USB port for 3G/4G modem and a RouterOS L4 license.

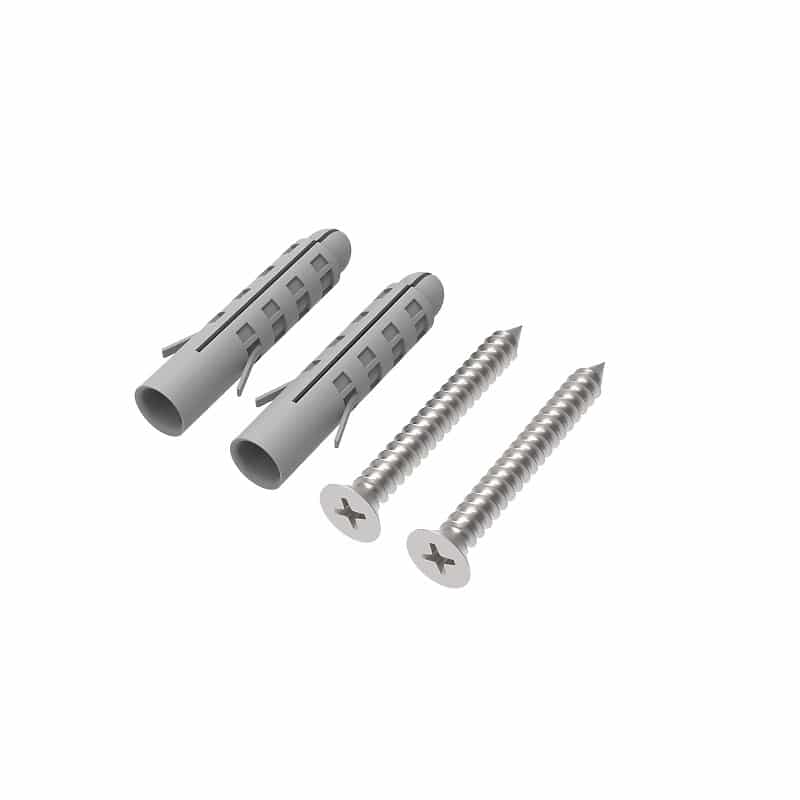

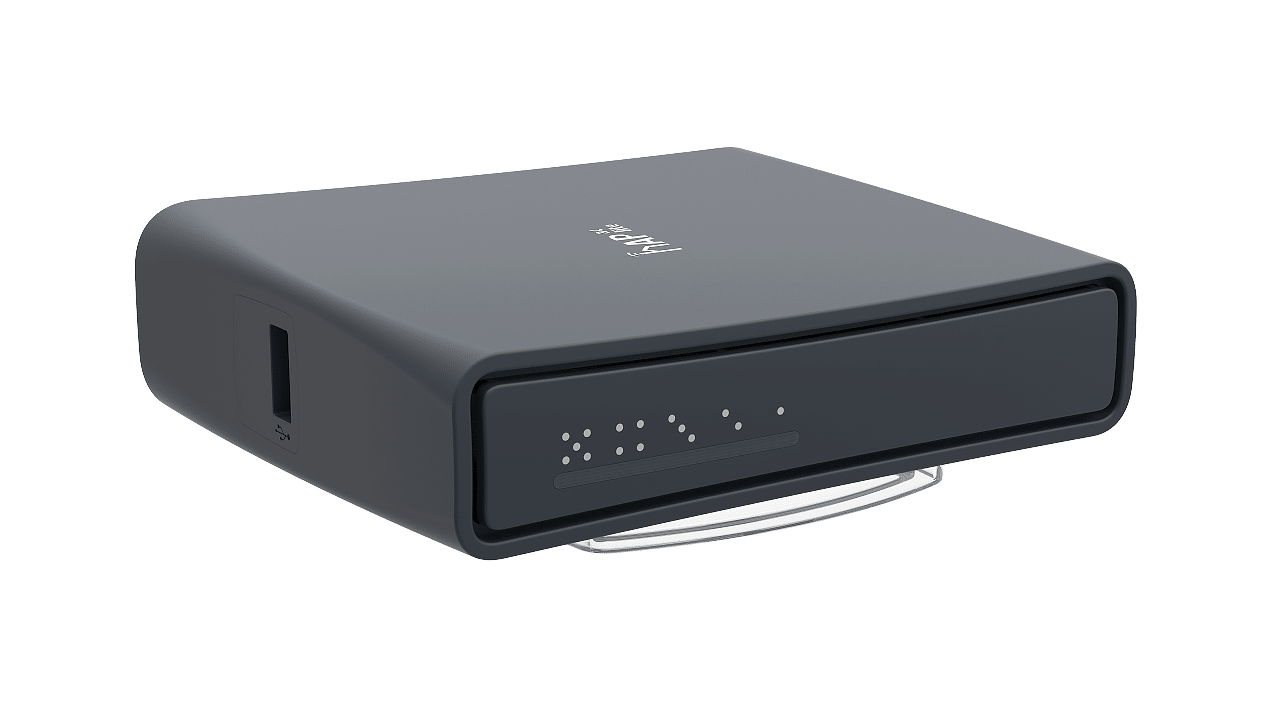

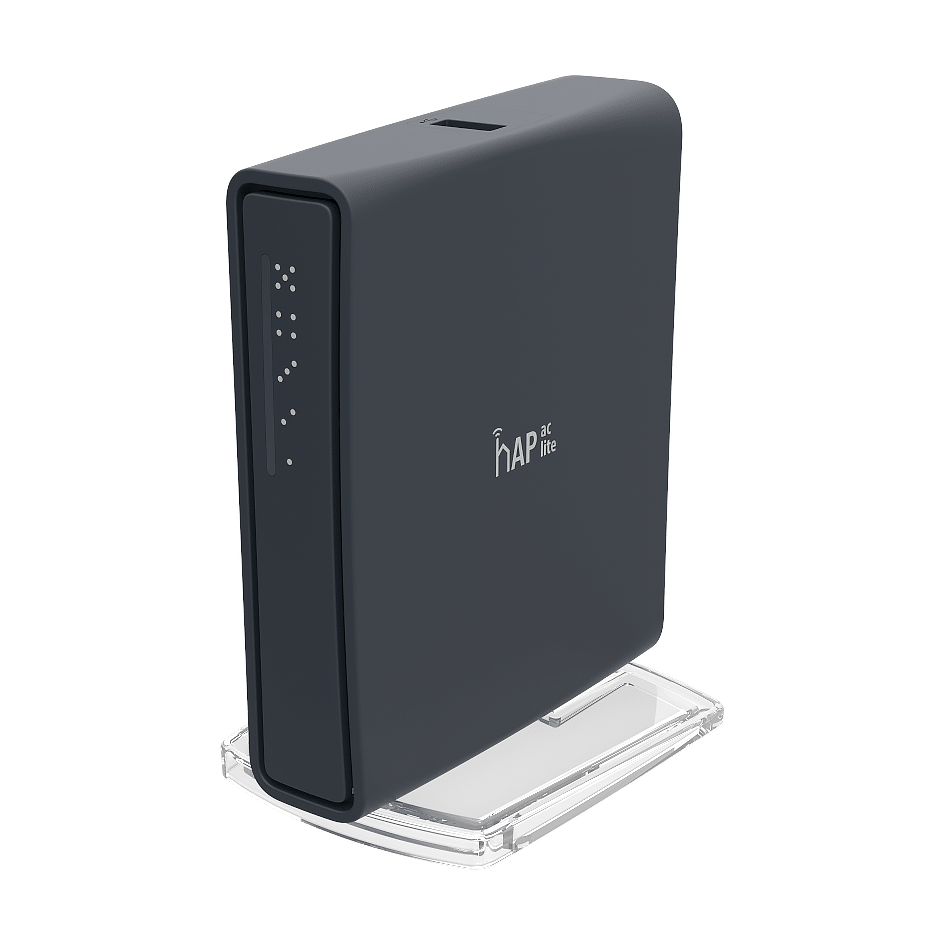

New design universal case allows unit to be positioned either horizontally (desktop) or vertically (tower case). Wall anchored mounting kit is provided.
We have two versions available – RB952Ui-5ac2nD-TC (International) and RB952Ui-5ac2nD-TC-US (USA). RB952Ui-5ac2nD-TC-US (USA) is factory locked for 2412-2462MHz, 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed. RB952Ui-5ac2nD-TC (International) supports 2412-2484MHz and 5150MHz – 5875MHz range (Specific frequency range can be limited by country regulations).
Product code | RB952Ui-5ac2nD-TC |
Architecture | MIPSBE |
CPU | QCA9531 |
CPU core count | 1 |
CPU nominal frequency | 650 MHz |
Switch chip model | QCA9531 |
Dimensions | 34 x 119 x 98mm |
RouterOS license | 4 |
Operating System | RouterOS |
Size of RAM | 64 MB |
Storage size | 16 MB |
Storage type | FLASH |
MTBF | Approximately 100’000 hours at 25C |
Tested ambient temperature | -30°C to 70°C |
Suggested price | 59 |
Wireless capabilities Details | |
Wireless 2.4 GHz Max data rate | 300 Mbit/s |
Wireless 2.4 GHz number of chains | 2 |
Wireless 2.4 GHz standards | 802.11b/g/n |
Antenna gain dBi for 2.4 GHz | 1.5 |
Wireless 2.4 GHz chip model | QCA9531 |
Wireless 2.4 GHz generation | Wi-Fi 4 |
Wireless 5 GHz Max data rate | 433 Mbit/s |
Wireless 5 GHz number of chains | 1 |
Wireless 5 GHz standards | 802.11a/n/ac |
Antenna gain dBi for 5 GHz | 2 |
Wireless 5 GHz chip model | QCA9887 |
Wireless 5 GHz generation | Wi-Fi 5 |
WiFi speed | AC750 |
Ethernet Details | |
10/100 Ethernet ports | 5 |
Peripherals Details | |
Number of USB ports | 1 |
USB Power Reset | Yes |
USB slot type | USB type A |
Max USB current (A) | 1 |
Powering Details | |
Number of DC inputs | 2 (DC jack, PoE-IN) |
DC jack input Voltage | 10-28 V |
Max power consumption | 20 W |
Max power consumption without attachments | 8 W |
Cooling type | Passive |
PoE in | Passive PoE |
PoE in input Voltage | 10-28 V |
PoE-out Details | |
PoE-out ports | Ether5 |
PoE out | Passive PoE |
Max out per port output (input 18-30 V) | 500 mA |
Max total out (A) | 500 mA |
Certification & Approvals Details | |
Certification | CE, FCC, IC, EAC, ROHS |
IP | IP20 |
