MikroTik Router Board RB3011UiAS-RM Ethernet Router

احصل على عرض لشركتك

16 People watching this product now!

Description

The RB3011 is a new multi port device, our first to be running an ARM architecture CPU for higher performance than ever before. The RB3011 has ten Gigabit ports divided in two switch groups, an SFP cage and for the first time a SuperSpeed full size USB 3.0 port, for adding storage or an external 3G/4G modem.

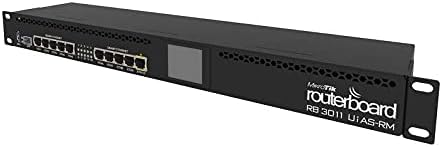

RB3011UiAS-RM Unit comes with 1U rackmount enclosure, a touchscreen LCD panel, a serial console port and PoE output functionality on the last Ethernet port.

Product codeRB3011UiAS-RM
ArchitectureARM 32bit
CPUIPQ-8064
CPU core count2
CPU nominal frequency1.4 GHz
Switch chip modelQCA8337
Dimensions443 x 92 x 44 mm
RouterOS license5
Operating SystemRouterOS
Size of RAM1 GB
Storage size128 MB
Storage typeNAND
MTBFApproximately 200’000 hours at 25C
Tested ambient temperature-20°C to 70°C
IPsec hardware accelerationYes
Suggested price179
Powering Details
Number of DC inputs2 (DC jack, PoE-IN)
DC jack input Voltage10-30 V
Max power consumption30 W
Max power consumption without attachments10 W
Cooling typePassive
PoE inPassive PoE
PoE in input Voltage10-30 V
PoE-out Ports Details
PoE-out portsEther10
PoE outPassive PoE
Max out per port output (input 18-30 V)600 mA
Max total out (A)600 mA
Ethernet Details
10/100/1000 Ethernet ports10
Fiber Details
SFP ports1
Peripherals Details
Serial console portRJ45
Number of USB ports1
USB Power ResetYes
USB slot typeUSB 3.0 type A
Max USB current (A)1
Other Details
PCB temperature monitorYes
Voltage MonitorYes
BeeperYes
Certification & Approvals Details
CertificationCE, EAC, ROHS
IPIP20

Specification

Overview

Brand

MikroTik

Overview

Brand

MikroTik
