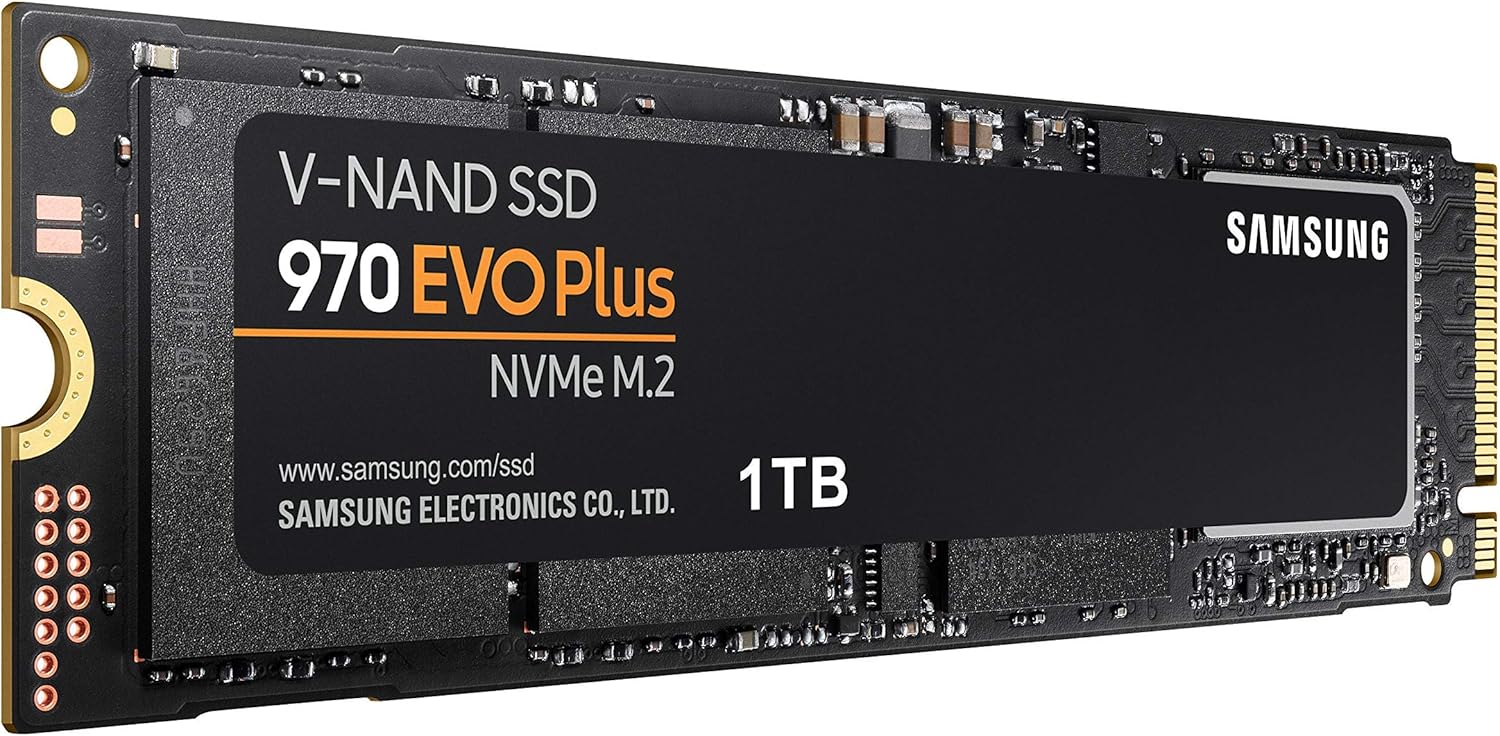

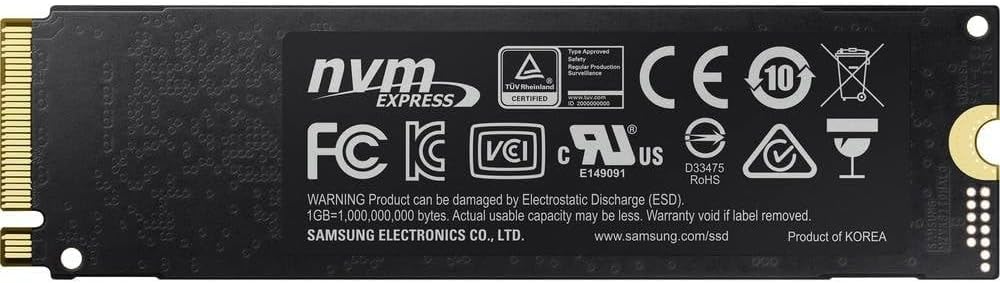

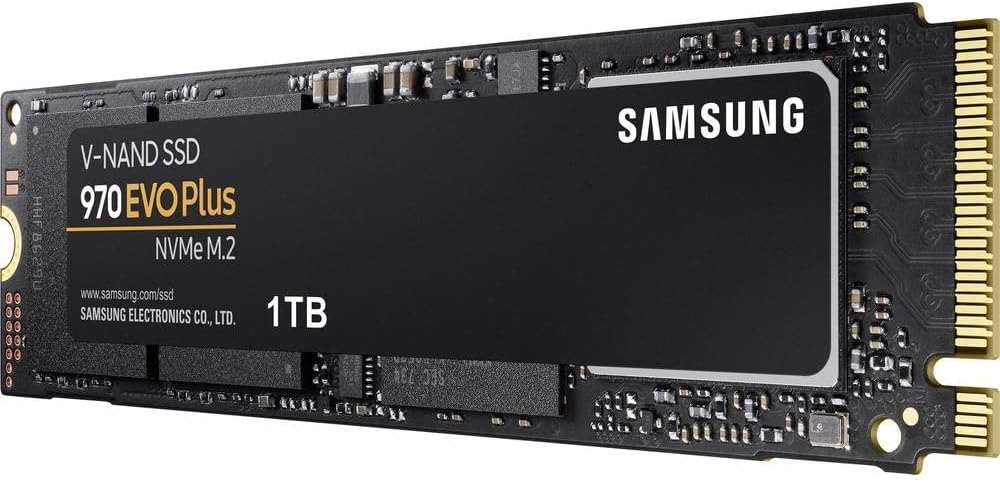

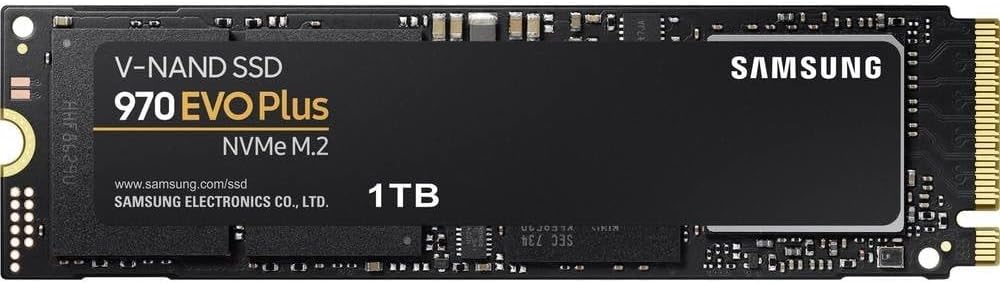

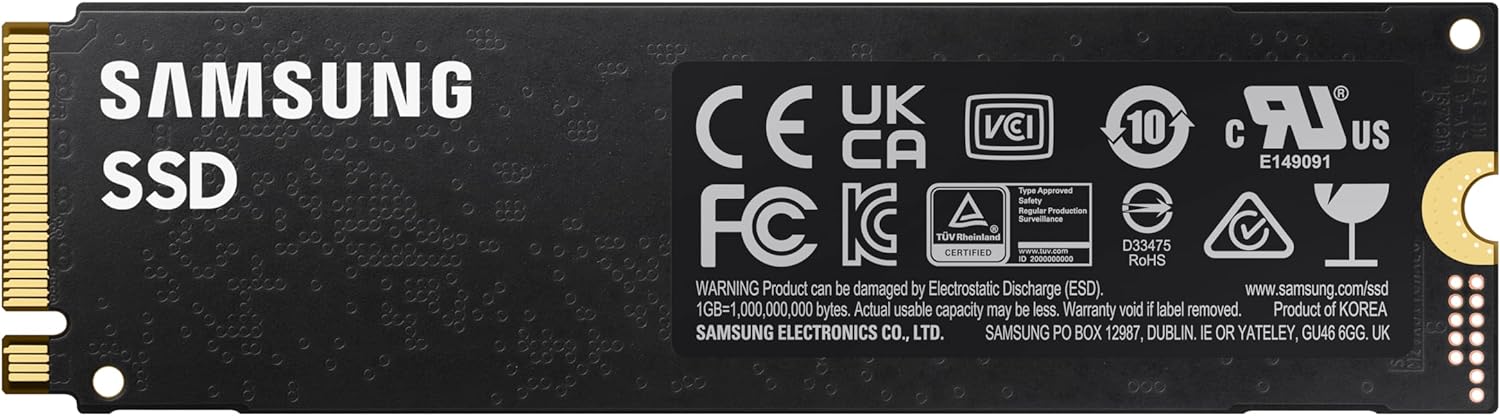

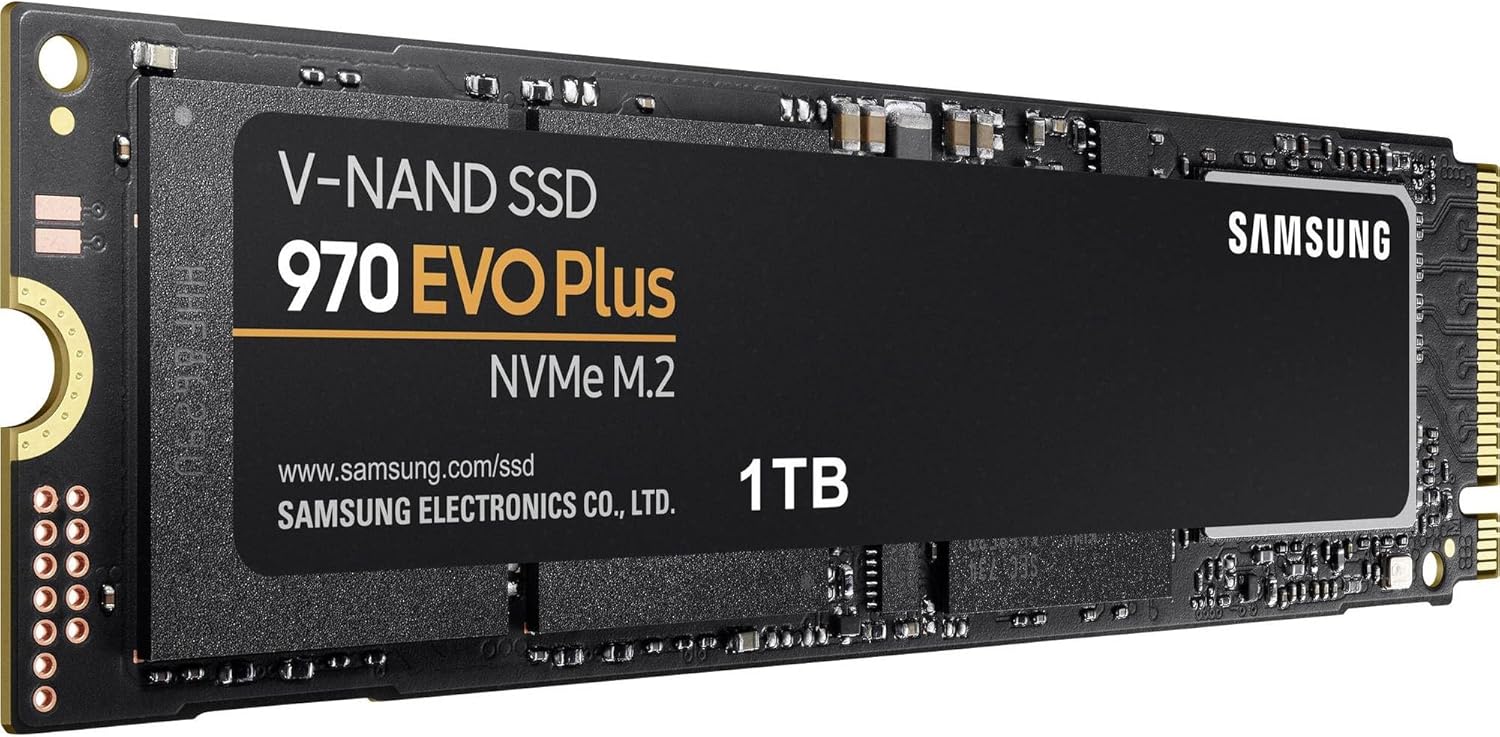

Samsung 970 EVO Plus 1TB M.2 NVMe SSD
Overview:
The Samsung 970 EVO Plus 1TB M.2 NVMe SSD is designed for high-performance computing and offers exceptional speed and reliability. Ideal for client PCs, this SSD leverages PCIe Gen 3.0 x 4 and NVMe 1.3 interfaces to deliver superior data transfer rates. With cutting-edge Samsung technology, including the Phoenix Controller and V-NAND 3-bit MLC, it provides fast sequential read and write speeds, robust random read and write performance, and efficient power management.
| Key Features | |
| Sequential Read Speed | Up to 3,500 MB/s |
| Sequential Write Speed | Up to 2,300 MB/s |
| Random Read Speed | Up to 250,000 IOPS (QD32); Up to 17,000 IOPS (QD1) |
| Random Write Speed | Up to 550,000 IOPS (QD32); Up to 60,000 IOPS (QD1) |
| Controller | Samsung Phoenix Controller |
| NAND Flash | Samsung V-NAND 3-bit MLC |
| Cache Memory | 512MB Low Power DDR4 SDRAM |
| Trim Support | Supported |
| AES Encryption | AES 256-bit Encryption (Class 0), TCG/Opal IEEE1667 |
| S.M.A.R.T. Support | Supported |
| Garbage Collection | Auto Garbage Collection Algorithm |
| Device Sleep Mode Support | Yes |
| Temperature Proof | Yes |
| Gaming SSDs | Yes |
| General Specifications | |
| Average Power Consumption | 5 W (average), 8 W (maximum, burst mode) |
| Power Consumption (Idle) | Max. 30 mW |
| Voltage | 3.3 V ± 5% |
| Reliability (MTBF) | 1.5 Million Hours |
| Environmental Specs | |
| Operating Temperature | 0 - 70 ℃ |
| Shock Resistance | 1,500 G & 0.5 ms (Half sine) |
| Form Factor | |
| Product Type | M.2 (2280) |
| Dimensions (W x H x D) | 80.15 x 22.15 x 2.38 mm |
| Weight | Max 8.0 g |
| Software | |
| Management Software | Magician Software for SSD management |
| Warranty | |
| Warranty Period | 5-Year Limited Warranty or 150 TBW |
