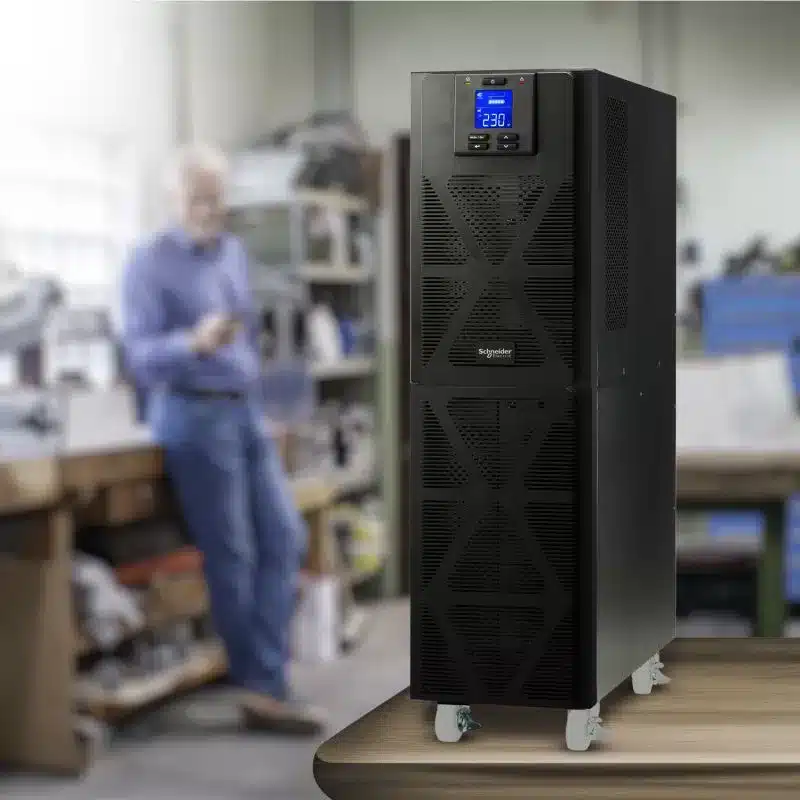

Schneider SRVS10KI

Easy 1 Ph On-Line SRVS 10000VA/10000W 230V Ups

Easy UPS 1 Ph On-Line offers vital power protection for small and medium-sized businesses, guaranteeing stable and dependable connectivity even during uncertain power conditions when it matters the most.

Schneider Electric has introduced a new line of UPSs specifically designed to meet the power protection needs of small to medium businesses. The Schneider Easy UPS 1 Ph Online is a highly versatile and reliable UPS that offers cost-effective solutions for handling a wide range of voltage fluctuations and inconsistent power conditions. This UPS is ideal for professional use and provides essential power protection, ensuring uninterrupted connectivity during critical moments.

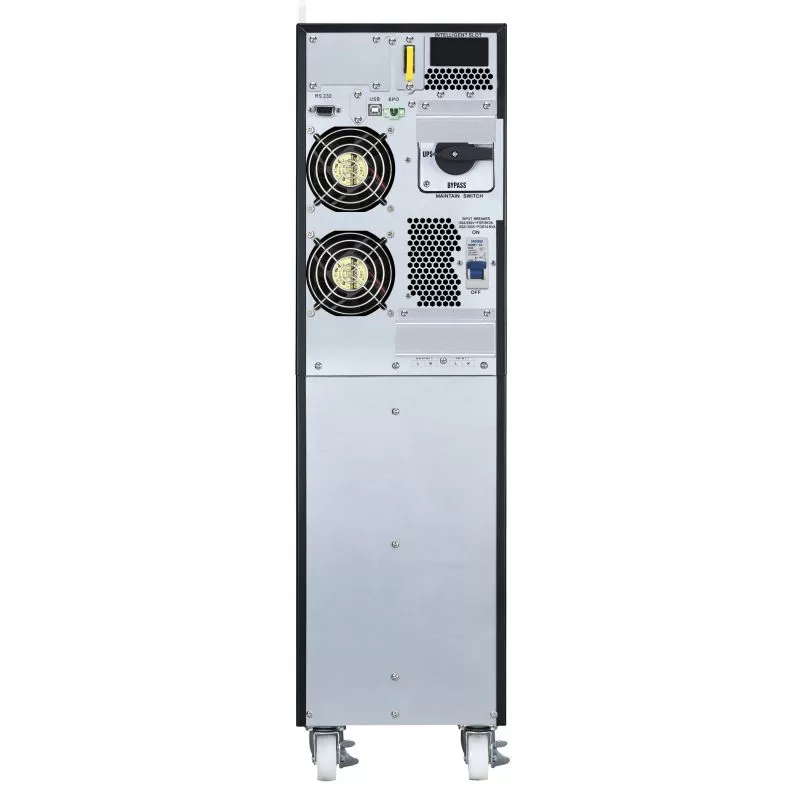

Schneider SRVS10KI Easy 1 Ph On-Line SRVS 10000VA/10000W 230V UPS is a (RAL 7010) device with dimensions of 68.5 cm (height), 19 cm (width), and 44.7 cm (depth). It weighs 65 kg and can be mounted vertically. The UPS has a main input voltage of 230 V, with other input voltage options of 220 V and 240 V. The main output voltage is 230 V, and it also provides other output voltage options of 220 V and 240 V. The rated power is 10000 W (watts) or 10000 VA (volt-amps). The output connector type is a hard wire 3-wire (1P + N + E) connection. The provided equipment includes 1 USB cable, 1 RS-232 configuration cable, and 1 user manual.

In terms of specifications, the UPS has no power module filled slots or free slots, and it is not redundant. It is compatible with USB connections and operates in a frequency range of 40 to 70 Hz. The maximum configurable power output is 10000 VA or 10000 W. The output frequency is 50/60 Hz with a tolerance of +/- 3 Hz synced to the mains. The UPS type is double conversion online, and it produces a sine wave output. The efficiency at full load is 94%.

Additional information includes the UPS being configurable for output voltages of 220, 230, or 240 nominal values. It has an internal bypass feature that operates automatically and manually. The crest factor is 3:1. The UPS is certified with CE and UKCA product certifications and complies with EN/IEC 62040-1:2019/A11:2021, EN/IEC 62040-2:2006/AC:2006, and EN/IEC 62040-2:2018 standards.

In terms of environmental conditions, the schneider UPS operates within an ambient air temperature range of 0 to 40 °C. The relative humidity range is 0 to 95% without condensation, and the operating altitude is 0 to 3000 m. For storage, the recommended ambient air temperature range is -15 to 60 °C, and the relative humidity range is 0 to 95% without condensation. The storage altitude range is 0 to 15000 m.

The Schneider UPS uses lead-acid batteries with a battery voltage of 192 V. It does not have any battery filled slots or free slots. The battery recharge time is 5 hours, and the expected battery life is 3 to 5 years. The battery charger has a rated power of 235 W.

For  management, the UPS has an alarm system for low battery, overload, and when operating on battery power. It also has an emergency power off feature. The control panel consists of a multifunction LCD status and control console. There is one free slot available for additional functionalities.

Features:

10000VA / 10000W Ups

220V, 230V, 240V Input Voltage

220V, 230V, 240V Output Voltage

Up to 10 Years battery life

2 Year warranty included battery
