Description

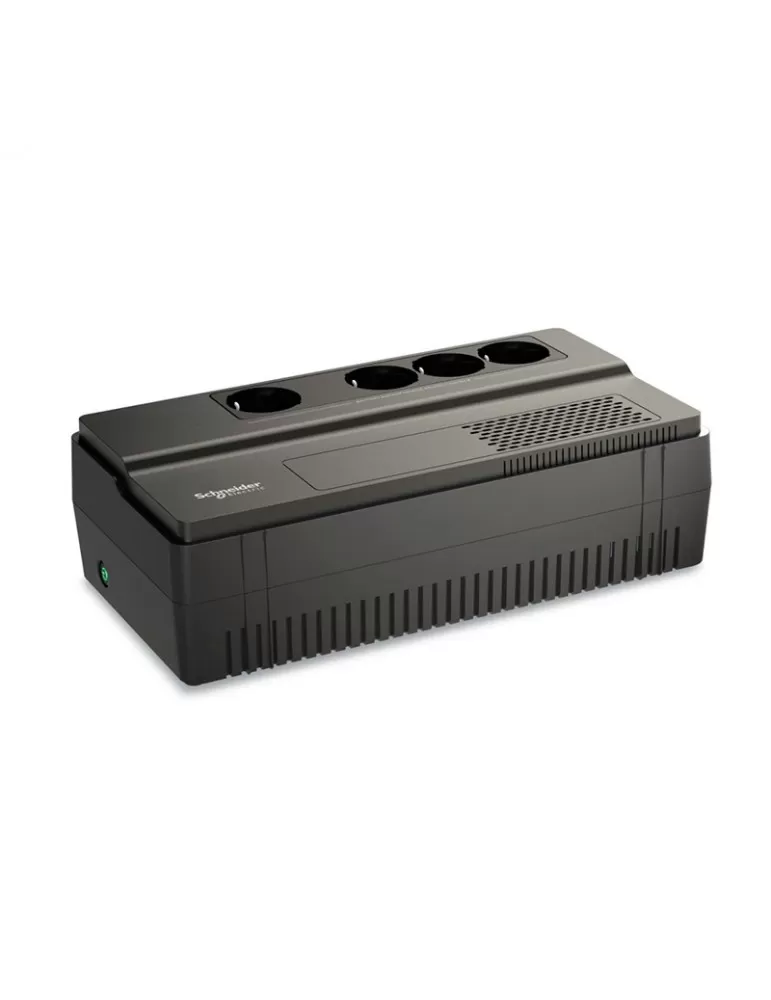

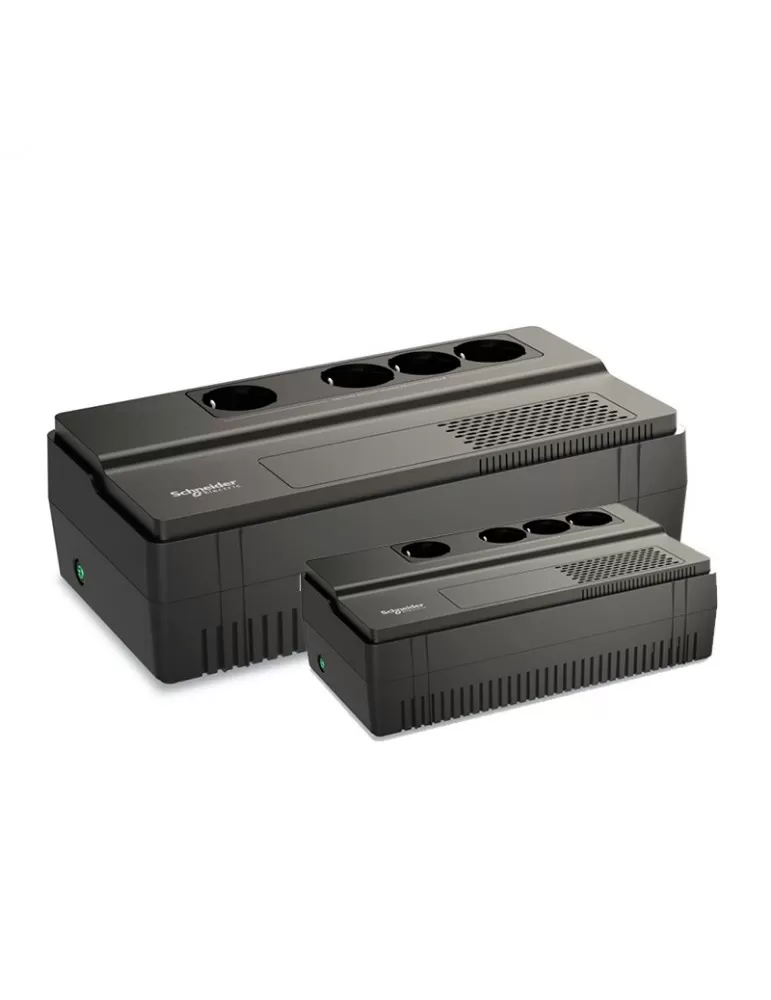

Schneider UPS BVS 1000VA

The Schneider UPS BVS 1000VA is an indoor, single-phase uninterruptible power supply (UPS) designed specifically to provide essential power protection for small to medium-sized businesses. This UPS is well-suited for environments with unstable power conditions, ensuring reliable connectivity during critical moments.

Key Features and Benefits:

• Model and Capacity: The BVS 1000VA model offers a power capacity of 1000 VA or 600 W, making it ideal for small office setups, home offices, or smaller business applications requiring essential backup.
• Voltage and Frequency: It operates with an input voltage range of 170-280V and a frequency of 45-65 Hz, while the output frequency is 50 or 60 Hz (±1 Hz), adapting to various power conditions.
• Power Protection: This UPS includes multiple protective features:
  • Surge Protection (156 J energy absorption)
  • Miniature Circuit Breaker (MCB)
  • Fuse
• Output Connections: Four Schuko battery backup outlets provide power during an outage.
• Signal and Alarm System: The UPS offers a stepped approximation to a sine wave, with an alarm system for low battery and overload notifications, along with an LED battery status indicator.
• Battery Specifications: The unit uses a single 12V, 9Ah lead-acid battery with a typical charging time of 6-8 hours, and an expected battery life of up to five years.
• IP20 Protection: It has an IP20 rating, providing basic protection against small objects, making it suitable for indoor applications.
• Compact Design and Durability: The UPS is built to be durable with a compact form factor (92.5 x 160.5 x 305 mm) and a lightweight design (5.7 kg), which makes it easy to integrate into various setups.
• Environmental and Certification Standards: It operates within 0-40°C, supports relative humidity levels of up to 90% (non-condensing), and is CE certified for safety.

Runtime Estimates:

The BVS 1000VA provides the following backup durations based on load:

• 120 W: Approximately 17 minutes
• 180 W: Approximately 10 minutes
• 240 W: Approximately 2.5 minutes

Overall, the Schneider UPS BVS 1000VA is a high-quality, reliable solution for users who need consistent power protection for business continuity in environments prone to power fluctuations.
