Description

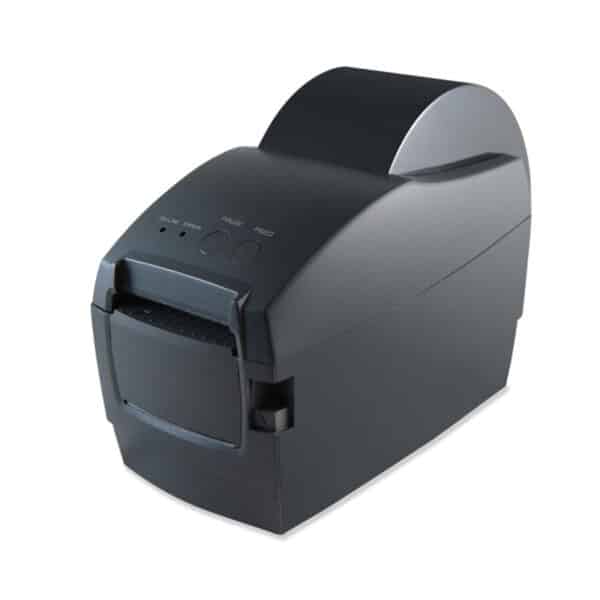

Thermal Barcode Printer GP-2120T – Power&Cable-Data Cable-CD
- Perfomance:
• 2 inches print width
• 3-5 inch/sec printing speed
• Printer size: 200×116×141mm; weight 0.93 kg;
• Support 2M DRAM memory
• Automatic label detection, supports simplified, traditional Chinese and Korean;
• Suport BMP, PCX, BAS files download and storage;

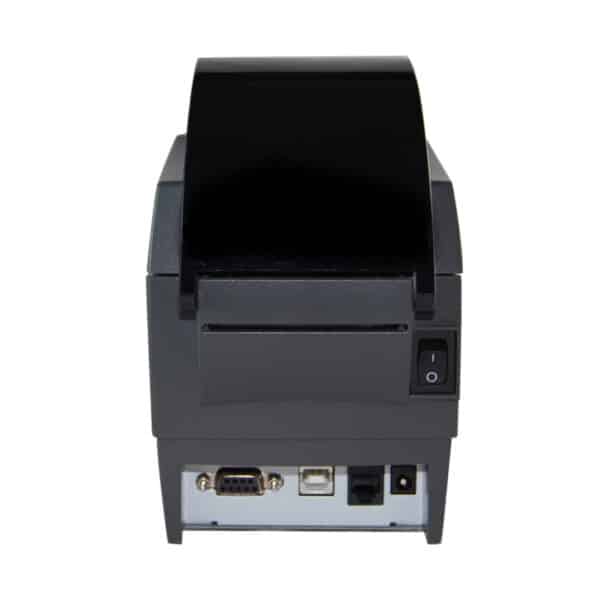

• Communication interface: USB Serial port
Paramenters :
| Properties | Label mode | Receipt mode |
| Print method | Direct thermal | Line thermal |
| Resolution | 203DPI | 203DPI |
| Print width | 56mm(max) | 48mm(max) |
| Print speed | 127mm/s(max) | 90mm/s |
| Memory | FLASH:60K | FLASH:60K |
| Print head temperature detect | Thermal sensitive resistance | Thermal sensitive resistance |
| Black mark sensor | Reflection sensor | Reflection sensor |
| Print head position detect | Microswitch | Microswitch |
| Paper detect | Photoelectric sensor | Photoelectric sensor |
| Interface | USB (Standard) | USB (Standard) |
| Bar code | CODE128/EAN128/ITF/CODE39 | UPCA/UPC-E/JAN13(EAN13)/ |
| Character enlargement/rotation | 1 ~10 times enlargement in portrait and landscape orientation; 0°, 90°, 180°, 270°degree rotation | 1 ~8 times enlargement in portrait and landscape orientation, rotating printing, inverted printing |
| Graphics | Monochrome PCX, BMP graphics files | Support different density bitmap printing |
| Character set | Simplified Chinese GB18030, Traditional Chinese BIG5, Korean, Japanese (optional) | Simplified Chinese GB18030, Traditional Chinese BIG5, Korean, Japanese (optional) |
| Media type | Thermal paper roll /adhesive thermal paper | Thermal paper roll |
| Media width | 25-60mm(including backing paper) | 57.5±0.5mm |
| Media roll outer diameter | 110mm(max) | |
| Media roll core size | 25.4mm | |
| Media output method | Front paper output, tear-off | |
| Power input | DC12V 4A | |
| Cash drawer output | DC 12V/1A | |
| Working environment | 5~40℃,20%~90% non-condensing | |
| Storage environment | -25~55℃,20%~93% non-condensing | |
| Printer dimension | 200mm×116mm×141mm | |
| Printer weight | 0.93kg | |
| Print head (reliability) | 30km | |
| Printer certificate | CCC、RoHS、SRRC | |
