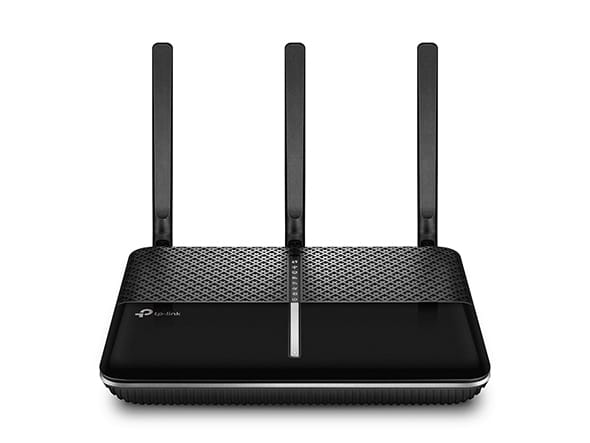

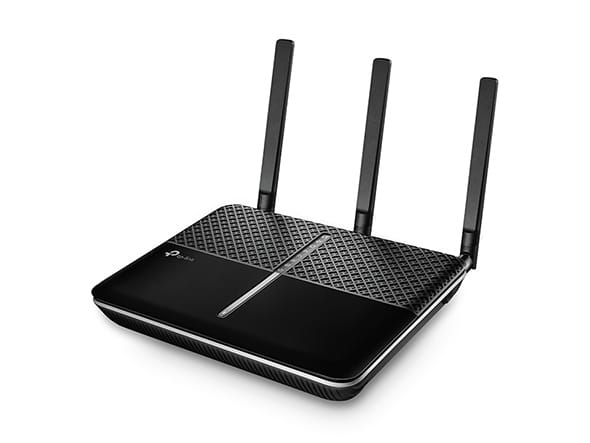

rcher VR600 AC1600: the gigabit router for your home
Archer VR600 AC1600 is a VDSL/ADSL wireless router that provides many connection possibilities. The EWAN port, USB port and full compatibility with VDSL2/ADSL2+/ADSL2/ADSL standards allow you to freely choose the best available Internet provider. Thanks to a powerful transmitter and 3 dual-band antennas we are guaranteed one of the best ranges on the market and great stability of the wireless network. The ARCHER VR600 Wireless router, operating on dual-band antennas, provides speeds reaching 1300Mbps in the 5GHz band, and 300Mbps in the 2.4GHz band. The beam shaping technology ensures high stability of connections, while the TP-Link Tether application will enable easy access to the router and quick configuration.
High-speed WiFi - up to 1.6GB/sec.
Unlocking the full potential of its internet connection, the Archer VR600 allows you to reach speeds up to 1.6Gb/s, so it's perfect for online games or HD video streaming. Thanks to the technology used in the router, it allows to operate more devices and reduce interference to a minimum.
High-speed VDSL connection
Using the latest VDSL2 technology, the Archer VR600 router allows you to achieve great VDSL speeds up to 100Mb/s, almost 5 times higher than the standard ADSL2+. Archer VR600 combines the functionality of two devices in one, it can work as a VDSL router or a regular wireless router. VDSL port supports all available standards: VDSL2, ADSL2+, ADSL2, and ADSL.
Usb port supporting 3G/4G modem
The Archer VR600 has a VDSL modem, EWAN port and USB ports that support 3G/4G modems, so the router does not limit your ability to choose the best Internet provider and change it if necessary.
Wide range and stable connection
Using three external antennas, the Archer VR600 wireless router provides a stable connection anywhere in your home. Thanks to the advanced beam shaping technology, the device delivers a signal with high precision, accelerating the operation of WiFi networks.
Super fast processor
Archer VR600 is equipped with processor from Broadcom, the world's leading manufacturer of components for DLS devices. Thanks to this solution, the router is compatible with the vast majority of modems, so you don't have to waste time looking for the right modem.
Easy to set up
A few minutes - that's how long it takes to configure the Archer router using an intuitive browser interface and TP-Link Tether application. The application allows you to manage hardware through devices with Android or iOS.
Specification
| Features / filters | |
| 3G | Yes |
| 3G/4G USB modem compatibility | Yes |
| 4G | Yes |
| AC adapter included | Yes |
| Access Control List (ACL) | Yes |
| ADSL | Yes |
| ADSL2 | Yes |
| ADSL2+ | Yes |
| Antenna gain level (max) | 23 |
| Antenna type | External |
| Antennas quantity | 3 |
| Cables included | LAN (RJ-45), Phone (RJ-11) |
| Cabling technology | 10/100/1000Base-T(X) |
| DC-in jack | Yes |
| Depth | 164 |
| Detachable antenna(s) | Yes |
| DHCP client | Yes |
| DHCP server | Yes |
| DMZ support | Yes |
| DSL WAN | Yes |
| Dynamic DNS (DDNS) | Yes |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 4 |
| Ethernet LAN data rates | 10,100,1000 |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet WAN | Yes |
| Filtering | Yes |
| Firewall | Yes |
| Guest access | Yes |
| Harmonized System (HS) code | 85176990 |
| Height | 36.8 |
| LED indicators | LAN, Power, WLAN |
| MAC address filtering | Yes |
| Maximum data transfer rate | 1 |
| Memory card slot(s) | No |
| Mobile network generation | 4G |
| Network address translation (NAT) | Yes |
| Networking standards | IEEE 802.3,IEEE 802.3ab,IEEE 802.3u |
| On/off switch | Yes |
| Operating relative humidity (H-H) | 10 - 90 |
| Operating temperature (T-T) | 0 - 40 |
| Output current | 2 |
| Output voltage | 12 |
| Port forwarding | Yes |
| Power source type | AC |
| Product colour | Black |
| Product type | Tabletop router |
| Quality of Service (QoS) support | Yes |
| Quick installation guide | Yes |
| Reset button | Yes |
| RJ-11 ports quantity | 1 |
| Security algorithms | 64-bit WEP,128-bit WEP,WPA,WPA-PSK,WPA2 |
| SIM card slot | No |
| Storage relative humidity (H-H) | 5 - 90 |
| Storage temperature (T-T) | -40 - 70 |
| Supported network protocols | IPv4, IPv6 |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| URL filtering | Yes |
| USB 2.0 ports quantity | 1 |
| USB port | Yes |
| VDSL | Yes |
| VDSL2 | Yes |
| VPN Passthrough | Yes |
| VPN support | PPTP, L2TP, IPSec Passthrough |
| VPN tunnels quantity | 10 |
| WAN connection type | RJ-45 |
| Web-based management | Yes |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Wi-Fi standards | 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac) |
| Width | 216 |
| WLAN data transfer rate (first band) | 1300 |
| WLAN data transfer rate (max) | 1300 |
| WLAN data transfer rate (second band) | 300 |
| WPS push button | Yes |
| Equipment features | |

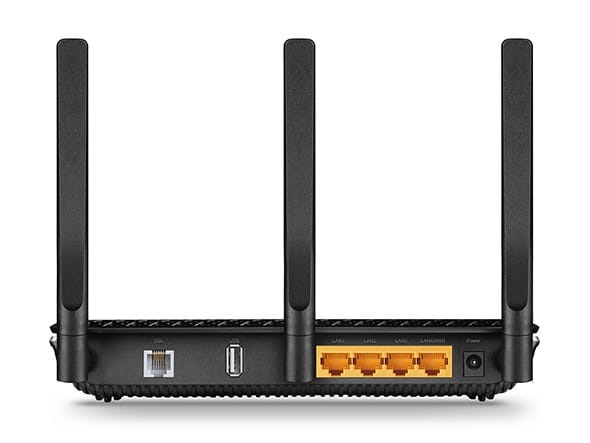

| Ports | 3 Ports 10/100/1000Mbps RJ45 LAN 1 Port 10/100/1000Mbps RJ45 LAN/WAN 1 RJ11 port 1 USB 2.0 port* 2 USB ports in hardware version V1 |

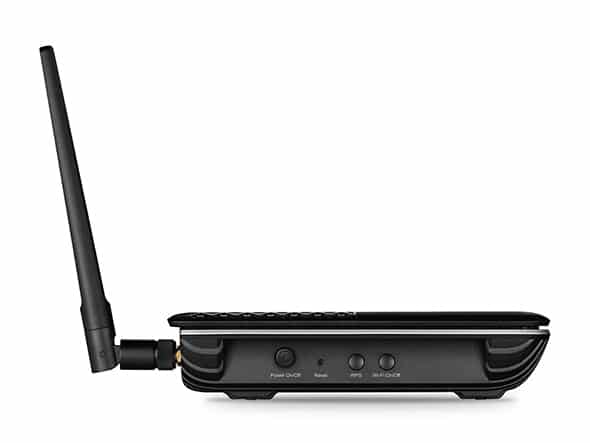

| Buttons | Switch Wireless Switch Diode breaker WPS button |
| Power supply | 12V/2A |
| IEEE standards | IEEE 802.3, IEEE 802.3u, 802.3ab |
| VDSL2 standards | ITU-T G.993.2, for profile 17a (POTS) ITU-T G.993.5 (G.vector) ITU-T G.998.4 (G.INP) |
| ADSL standards | Full-rate ANSI T1.413 Issue 2, ITU-T G.992.1(G.DMT), ITU-T G.992.2(G.Lite), ITU-T G.994.1 (G.hs), ITU-T G.995.1 |
| ADSL2 standards | ITU-T G.992.3 (G.DMT.bis), ITU-T G.992.4 (G.lite.bis) |
| ADSL2+ standards | ITU-T G.992.5 |
| Dimensions (S x G x W) | 216 x 164 x 36.8mm |
| Antenna type | Three detachable two-band external antennas (RP-SMA) |
| Wireless transmission characteristics | |
| Wireless standards | IEEE 802.11a/n/ac 5GHz, IEEE 802.11b/g/n 2,4GHz |
| Frequency of operation | 2.4GHz and 5GHz |
| Transmission speed | 1300Mbps in 5GHz band, 300Mbps in 2.4GHz band |
| EIRP | 2.4GHz <20dBm(EIRP) 5GHz <23dBm(EIRP) |
| Wireless transmission functions | Wireless On/Off, WDS, WMM, Wireless Statistics, Wireless Schedule |
| Wireless transmission security | WEP 64/128 bits, WPA / WPA2, WPA-PSK/WPA2-PSK, MAC address filtering |
| Software functions | |
| Quality of Service function | ATM QoS, Capacity Control (IP QoS) |
| Transmission security | NAT Firewall, Access Control, IP/MAC address binding |
| Available modes of operation | VDSL/ADSL router, Wireless router, 3G/4G router |
| Management | Web-based configuration (HTTP), remote management, management via CLI, SSL for TR-069, SNMP v1/2c, Web-based software update, Diagnostic tools |
| DHCP | Server, Client, DHCP Client List, Address Reservation, DHCP relay |
| Port forwarding | Virtual servers, Port Triggering, DMZ, ALG, UPnP |
| Dynamic DNS | DynDns, NO-IP |
| VPN Pass-Through | PPTP, L2TP, IPSec Passthrough |
| Protocols | IPv4 and IPv6 |
| ATM/PPP protocols | ATM Forum UNI3.1/4.0, PPP over ATM (RFC 2364), PPP over Ethernet (RFC2516), IPoA (RFC1577/2225), MER\IPoE (RFC 1483) Routed), Bridge (RFC1483 Bridge), PVC - up to 8 PVCs |
| Advanced features | Parental control, NAT, Port mapping (grouping), static routing, DNS Relay, DDNS, IGMP V1/V2/V3 |
| Sharing USB devices | Samba(disk sharing)/FTP/Server Print/Media/Modem 3G/4G |
| Guest Network function | One guest network in the 2.4GHz band One guest network in the 5GHz band |
| VPN IPSec | Support for up to 10 IPSec VPN tunnels |
| Beamforming | In the 5GHz band |
| APP | Tether application and Cloud service |
| Other | |
| Certificates | CE, RoHS |
| Package contents | Archer VR600 ADSL Splitter RJ-11 telephone cable RJ-45 Ethernet cable Quick Installation Guide Power supply |
| System requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1, MAC OS, NetWare, UNIX or Linux |
| Working environment | Operating temperature: 0℃~40℃ (32℉~104℉) Storage temperature: -40℃~70℃ (-40℉~158℉) Operating humidity: 10%~90%, non-condensing Storage humidity: 5%~90%, non-condensing |
