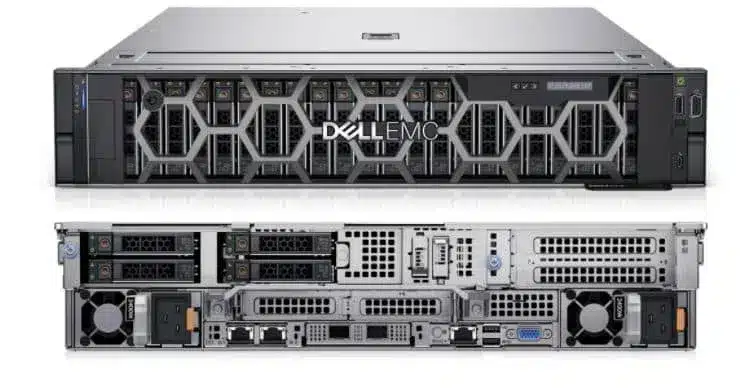

Dell PowerEdge R750xs Rack Server
The Dell PowerEdge R750xs Rack Server is a purpose-built 2U server designed for scalability and demanding workloads, ideal for enterprise-scale environments. Here’s a detailed breakdown:
Key Features
- Processor and Performance:
- Supports up to two 3rd Generation Intel Xeon Scalable processors (5318Y model, 24 cores each).
- Base clock speed: 2.1 GHz with 36 MB cache.
- Designed for virtualization, medium VM density, and software-defined storage workloads.
- Memory:
- Up to 16 DDR4 RDIMM slots, supporting 3200 MT/s.
- Maximum supported memory: 128 GB.
- Standard memory included: 32 GB (2 x 16 GB RDIMM).
- Storage:
- Flexible configurations:
- Up to 12 x 3.5″ SAS/SATA HDDs/SSDs or
- Up to 16 x 2.5″ SAS/SATA HDDs/SSDs with 8 NVMe drives.
- Includes 1 x 480 GB SSD (SATA/600 interface).
- Expansion and Connectivity:
- 5 PCIe Gen4 slots, with OCP 3.0 support for network cards.
- 6 total expansion slots (4×16, 1×8, 1×4).
- 2 Gigabit Ethernet ports and 2 USB 2.0 ports.
- iDRAC9 Datacenter for advanced remote management.
- Power and Cooling:
- Redundant hot-swappable power supplies (1100 W max wattage).
- Advanced thermal management and telemetry.
- Form Factor:
- Rack-mountable 2U design.
- Dimensions: Height: 3.4″, Width: 19″, Depth: 27.9″.
- Weight: Optimized for dense environments.
- Security Features:
- Silicon Root of Trust, secure boot, secure erase, system lockdown, and TPM options (1.2/2.0 FIPS-certified).
- Supports cryptographically signed firmware.
- Operating System Compatibility:
- Ubuntu Server, Windows Server, VMware ESXi, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, and Citrix XenServer.
Specifications
| Category |
Details |
| Product Line |
PowerEdge |
| Model |
R750xs |
| Processor |
Xeon Gold 5318Y (3rd Gen, 24-core) |
| Memory |
32 GB RDIMM (expandable to 128 GB) |
| Storage |
1 x 480 GB SSD |
| Power Supply |
2 x 1100 W (Hot Swappable) |
| RAID Controller |
PERC H755 |
| Network Ports |
2 x RJ-45 Gigabit Ethernet |
| Management |
iDRAC9 with OpenManage Enterprise Advanced |
| Form Factor |
Rack-mountable (2U) |
| Warranty |
3 Years |
Innovations for Workloads
- Enhanced I/O and Throughput: PCIe Gen4 slots improve data transfer speeds and expandability.
- Built-in Automation: OpenManage for seamless updates, zero-touch configuration, and full-stack integration.
- Cyber Resilience: Includes live BIOS scanning and rapid OS recovery.
Use Cases
- Virtualized environments and VDI.
- Software-defined storage solutions.
- High-performance applications requiring intensive processing.
For pricing or additional customization options, feel free to ask!
